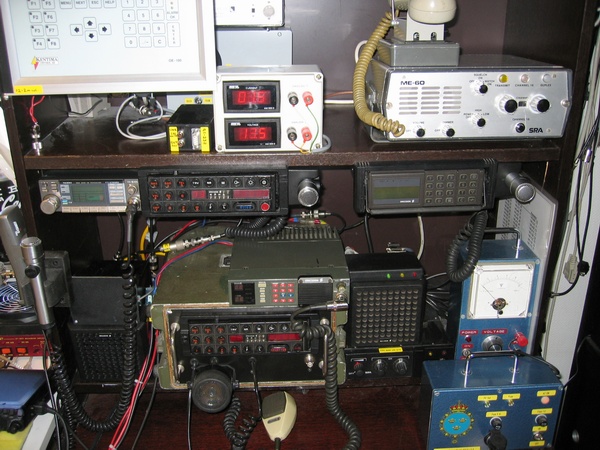

SRA / Ericsson radio's
Ericsson
C702, Ericsson C52 and SRA R70
|
|
|
|
|
|
|
|

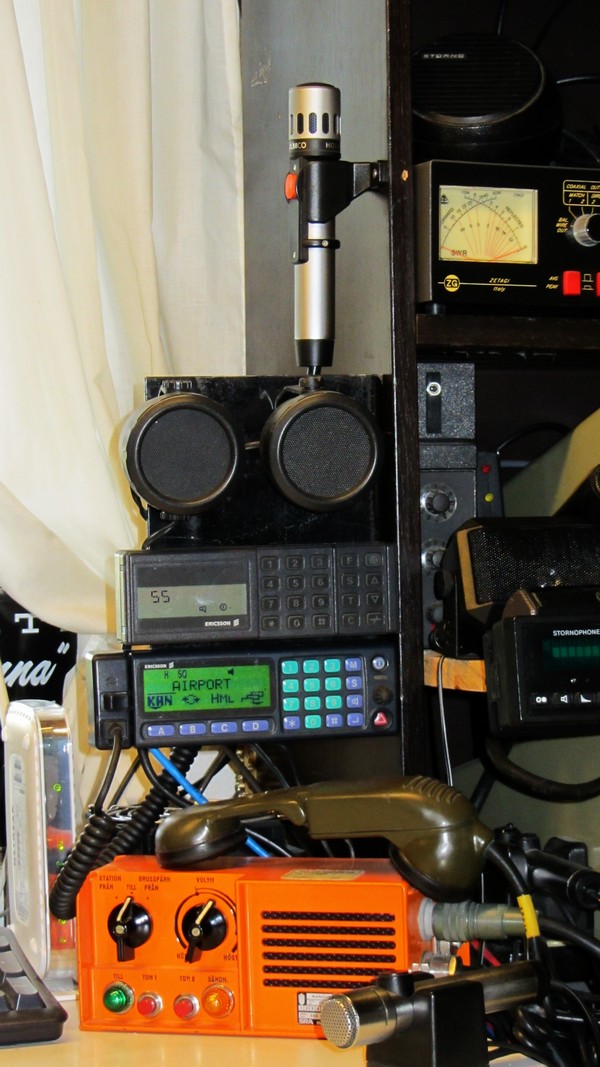

Three
generations of Ericsson radio
Ericsson
C602, Ericsson C702 and Ericsson C52 Aurora
|
|
|
|
|
|
|
|
|
SRA

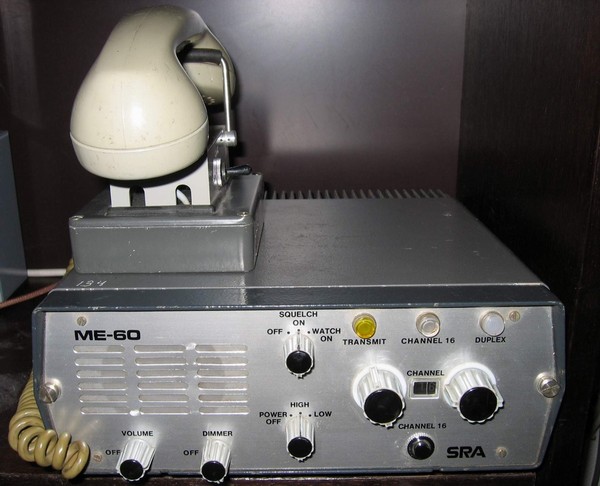

ME-60
Maritime
VHF Radio
|
|
|
|
|
|
|
|
SRA

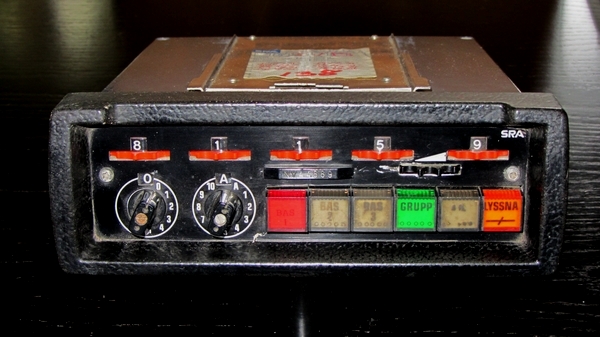

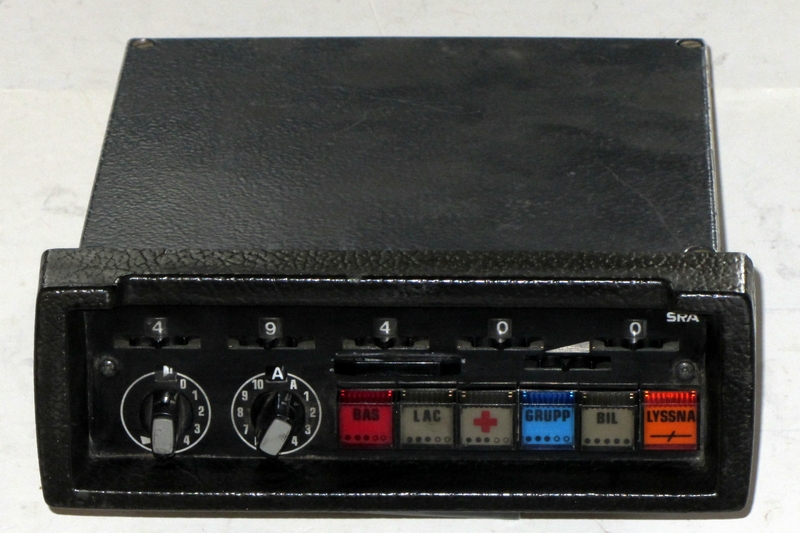

CN 502 AUT
68-88 MHz
Used by Swedish Rescue service
|
|
|
|
|
|
|
|

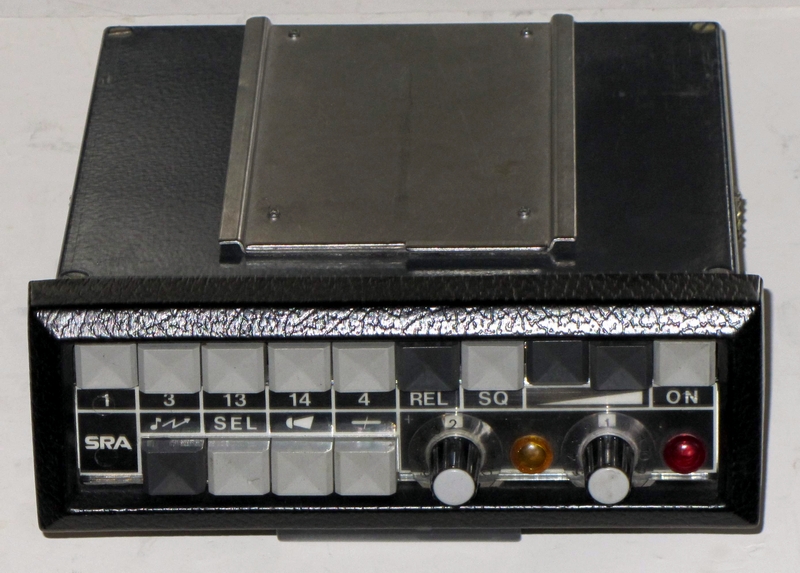

SRA
CN504 AUT
146-174
MHz
|
|
|
|
|
|
|
|
SRA

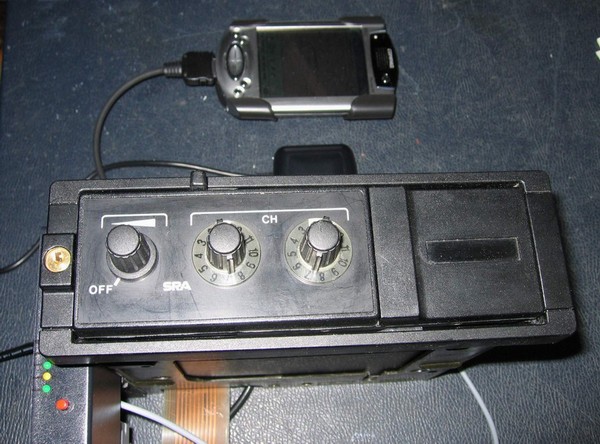

C604 OpenCom
Programmed
for 144.800 MHz APRS
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Ericsson

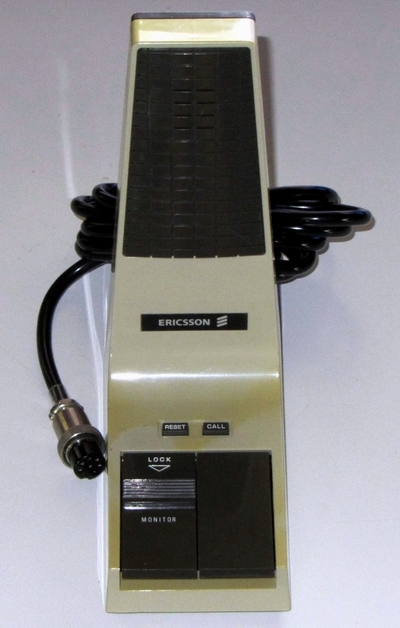

C60 Desk top mic
|
|
|
|
|
|
|
|

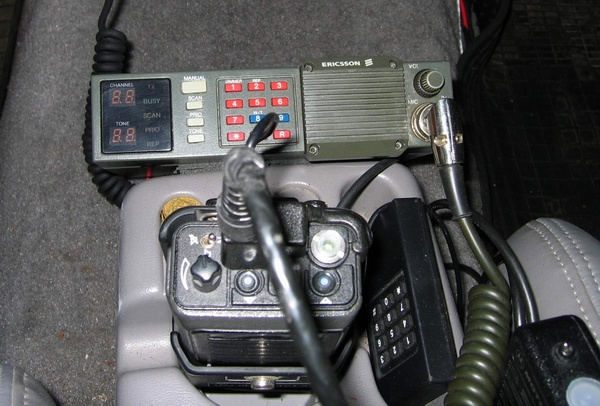

Ericsson
C60

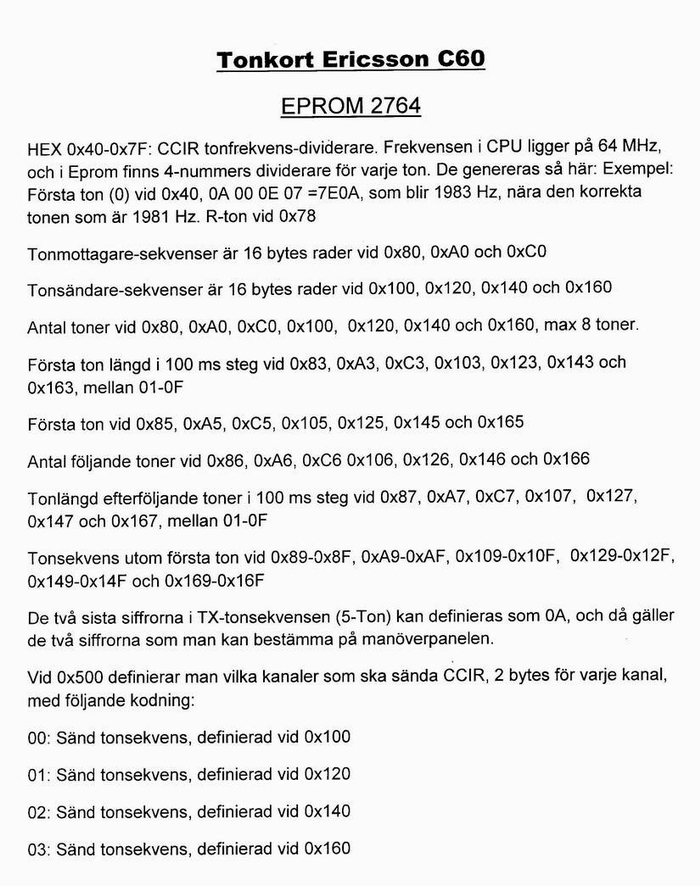

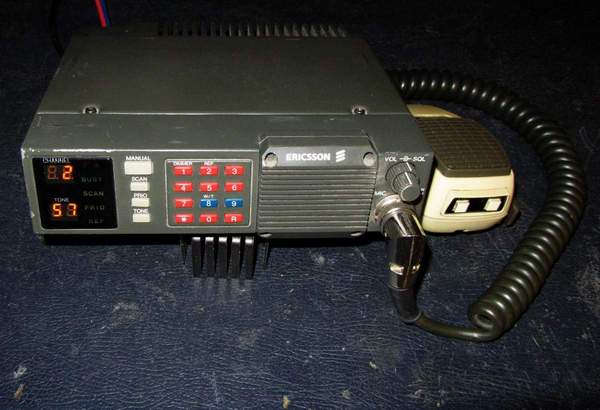

CCIR Enc/Dec and CTCSS Enc
The 5-tone CCIR code is programmed in Eprom
|
|
|
|
|
|
|
|
Ericsson
C60
The 5-tone CCIR code is programmed in Eprom 2764
|
|
|
|
|
|
|
|
|

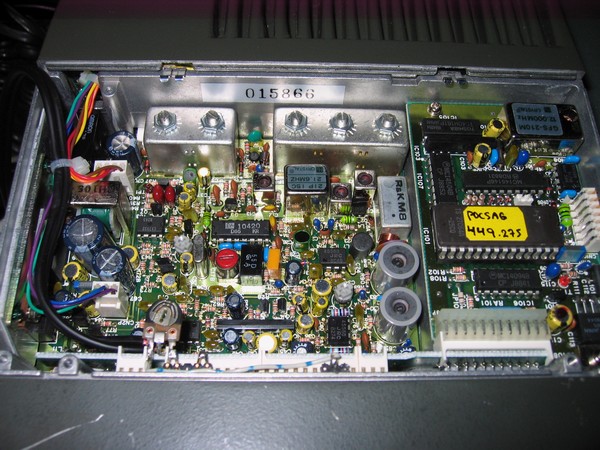

Ericsson
C65 UHF,
Discriminator tap for POCSAG decoding
Terminal CN7S: pin 6; Gnd, pin 23; Discriminator out
Potentiometer; 47K
|
|
|
|
|
|
|
|

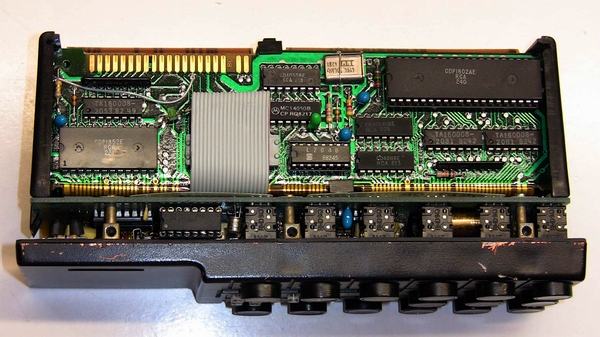

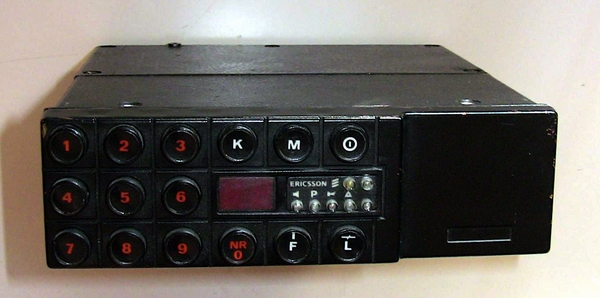

Ericsson
C600 Diricom
The BPROM for programming is located behind the front panel
|
|
|
|
|
|
|
|

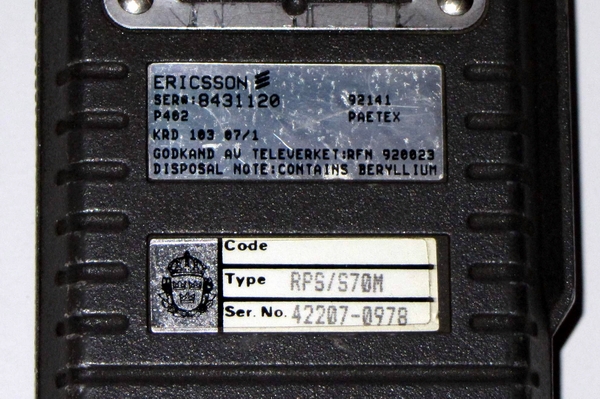

Ericsson

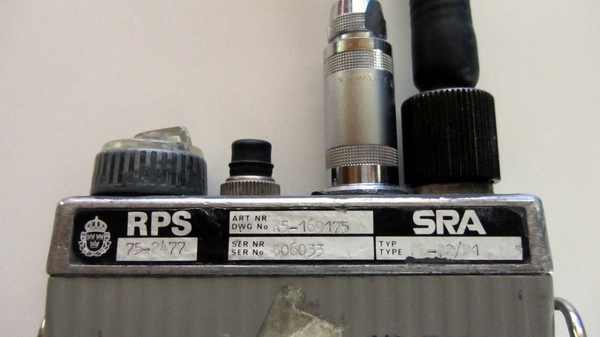

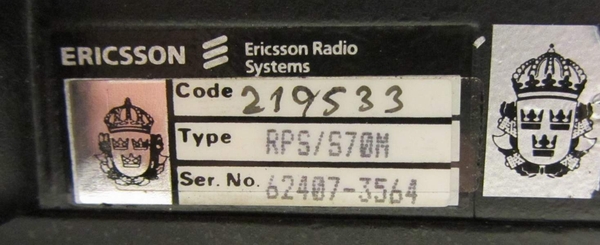

C602/RPS S70M
Used by the Swedish Police
78/79 MHz
|
|
|
|
|
|
|
|

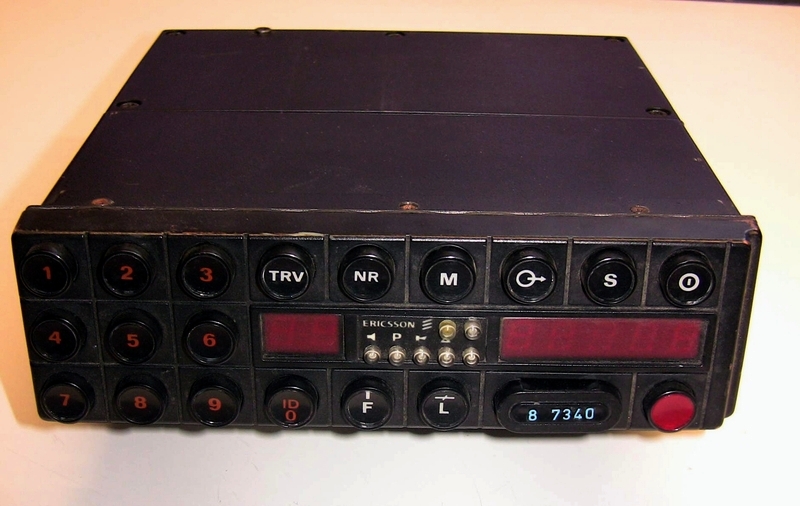

Ericsson
C602/RPS S70M
Used by the Swedish Police
78/79 MHz
|
|
|
|
|
|
|
|

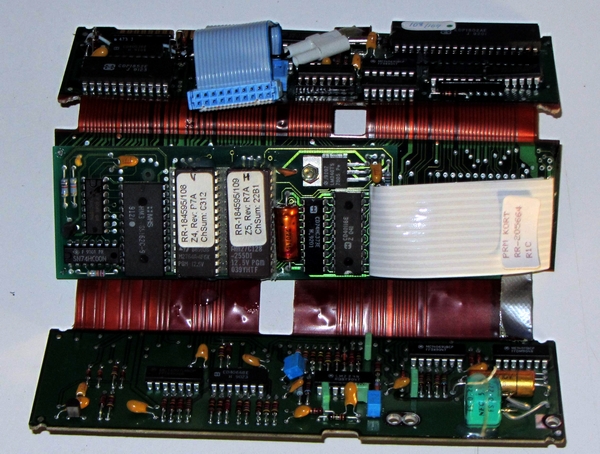

Ericsson
C602/RPS S70M
Q-Logic unit with RPS Firmware.
Eprom 1x16K + 1x8K.
The backup battery is replaced with a 5.5 Volt, 0.22 F super-cap
on the Q-Logic.
|
|
|
|
|
|
|
|
Ericsson

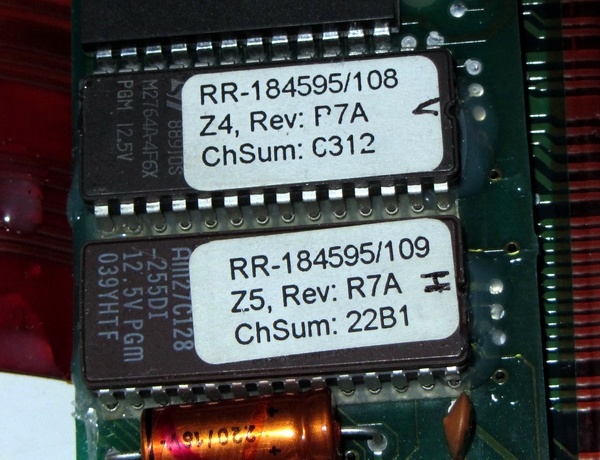

C602/RPS S70M
RPS Firmware Rev: R7A
|
|
|
|
|
|
|
|
Manual and Software for training
on the S70M Police radio system
|
|
|
|
|
|
|
|

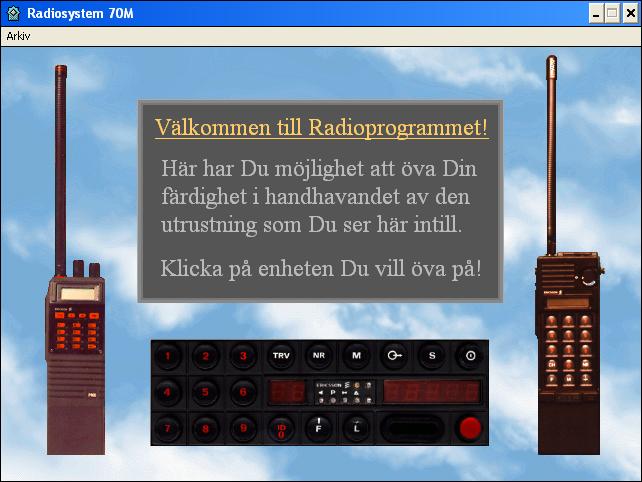

Screen shot from the computer program for training
on the S70M Police radio system.
This is an interactive program, and the radio's
are working just as in "real life".
|
|
|
|
|
|
|
|

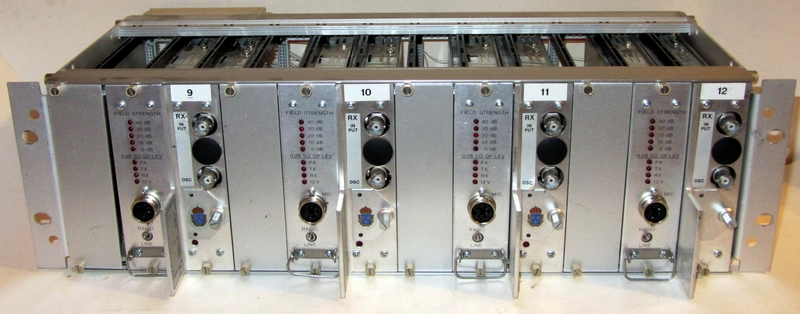

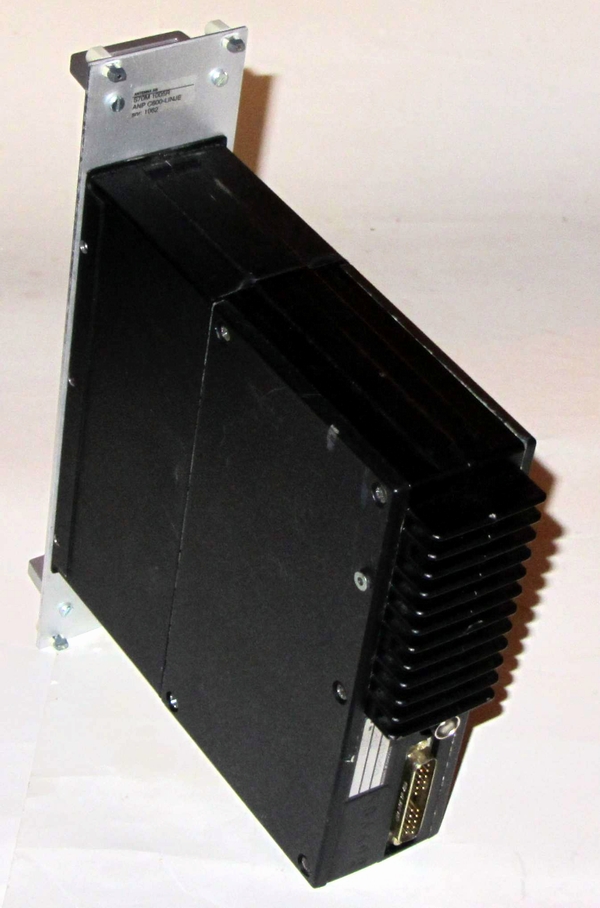

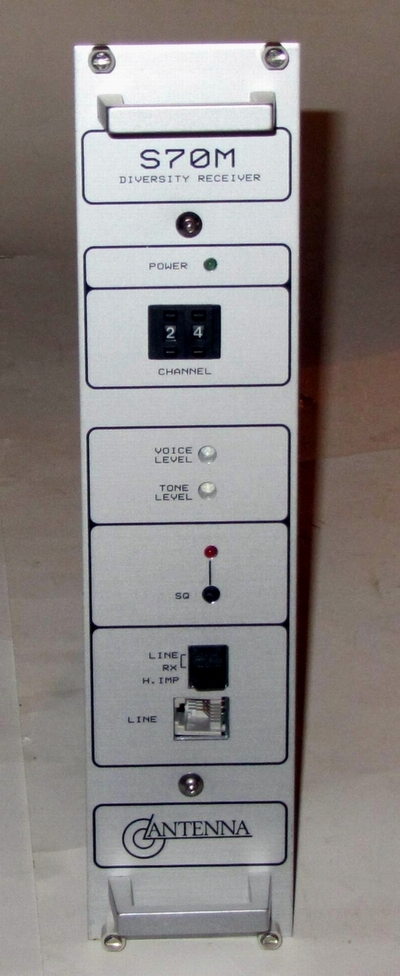

SRA Diversity Receiver for police radio system S70M
Built on a SRA C602
|
|
|
|
|
|
|
|
SRA Diversity Receiver for police radio system S70M
Built on a SRA C602
|
|
|
|
|
|
|
|
SRA Diversity Receiver for police radio system S70M
Built on a SRA C602

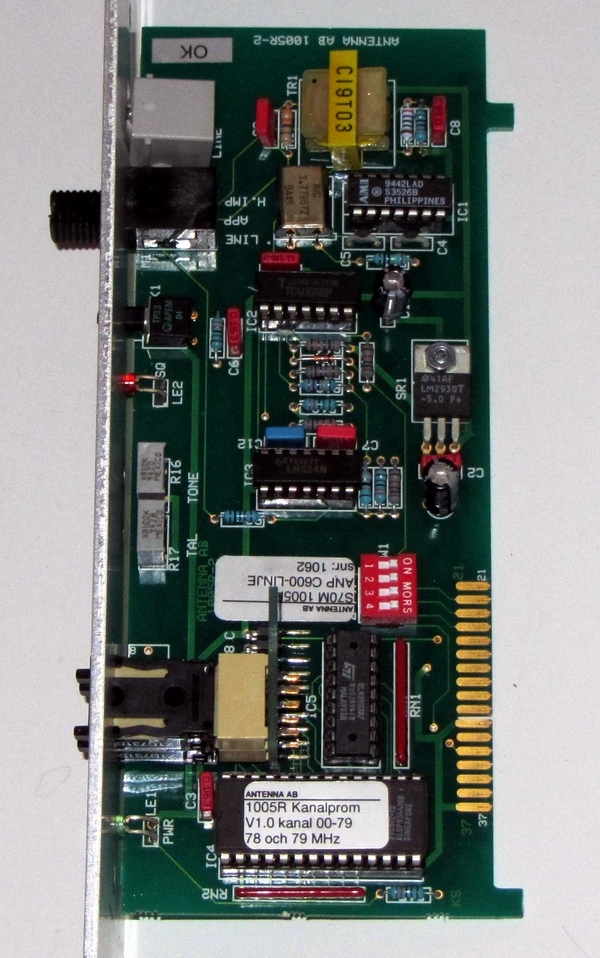

Control circuit board
|
|
|
|
|
|
|
|
Diversity Receivers for police radio system S80 [UHF]
Built by SRA/Sonab
|
|
|
|
|
|
|
|

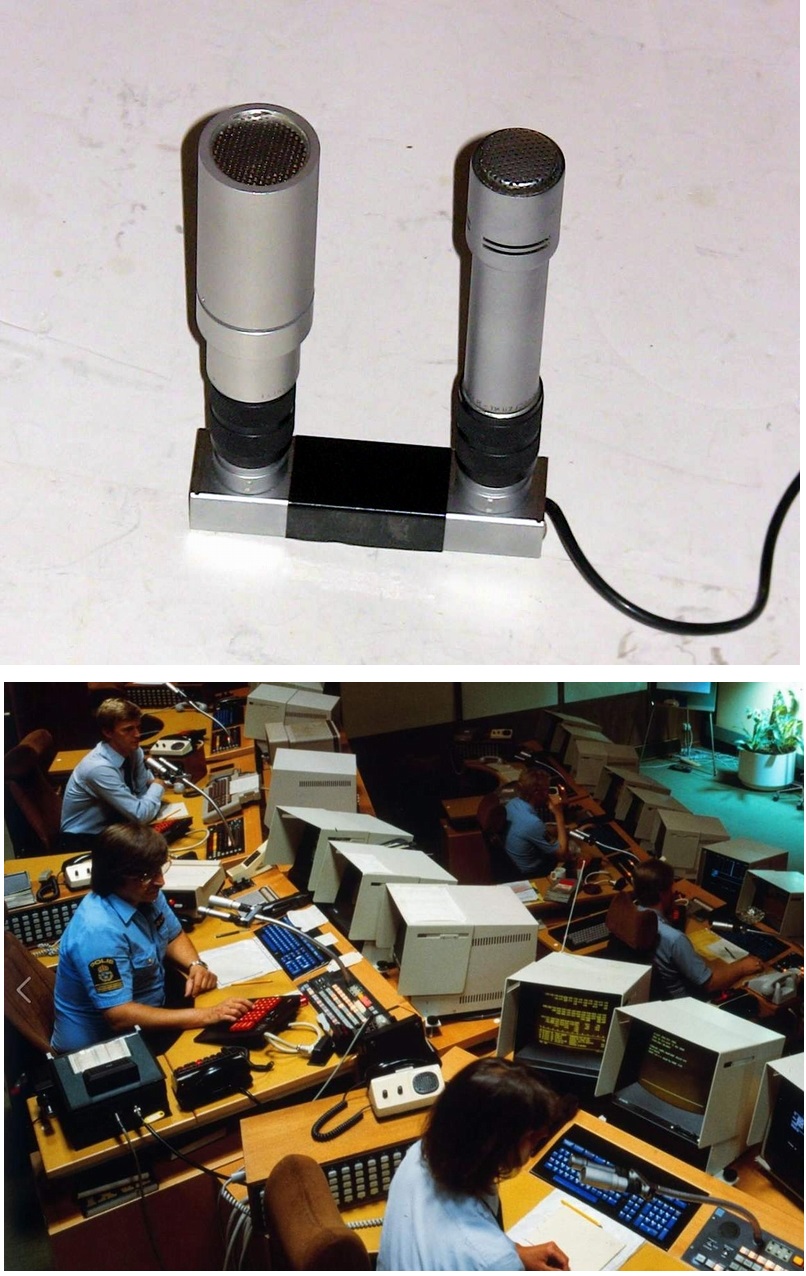

Microphone and speaker
used in the Police command central with the radio system S80
|
|
|
|
|
|
|
|

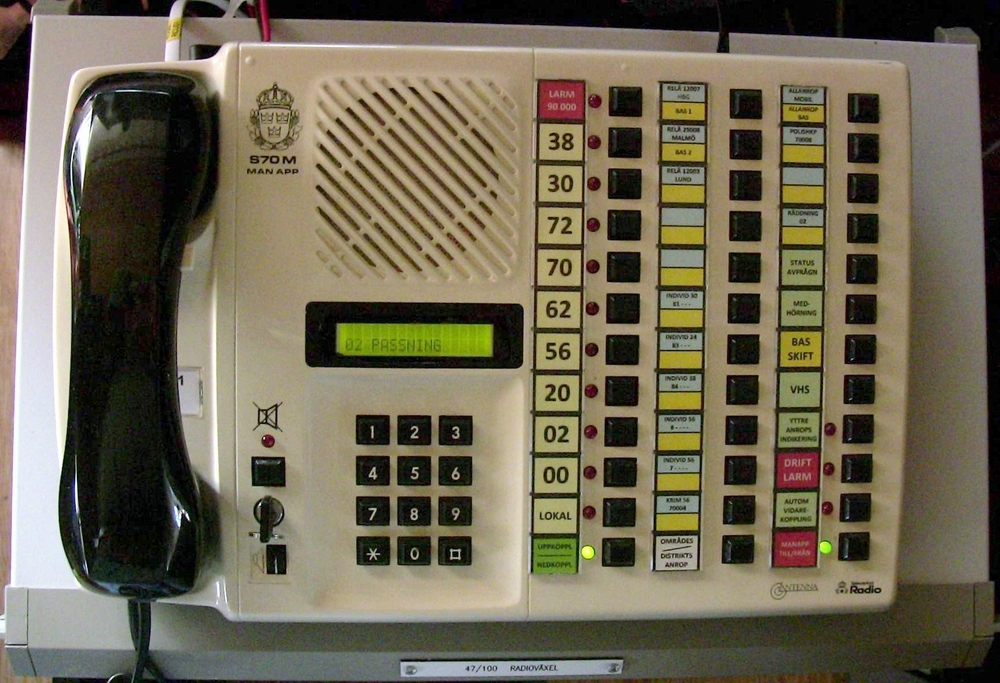

Police radio system S70M
Base station Control unit
|
|
|
|
|
|
|
|

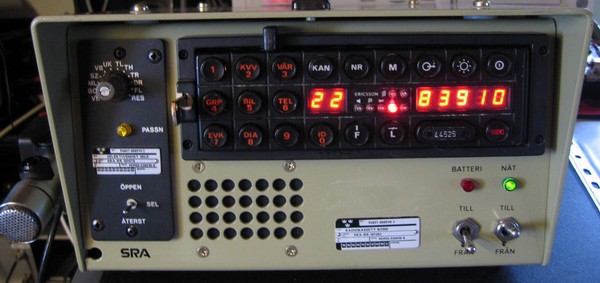

Ericsson
C602
Programmed for S70/M

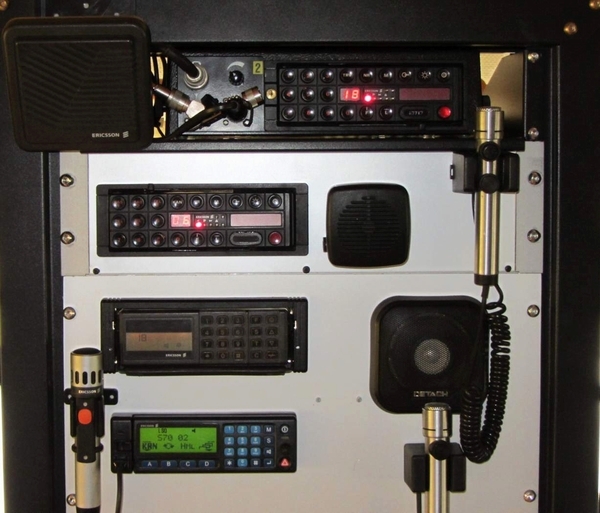

Table top console
|
|
|
|
|
|
|
|
|
|
|
|
|
|
SRA C602 in a carrying case.
|
|
|
|
|
|
|
|

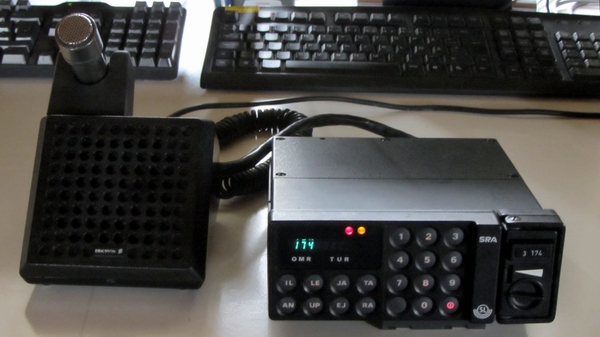

SRA C604, special version for SL (Stockholms Lokaltrafik).
Data transmission and Voice
|
|
|
|
|
|
|
|

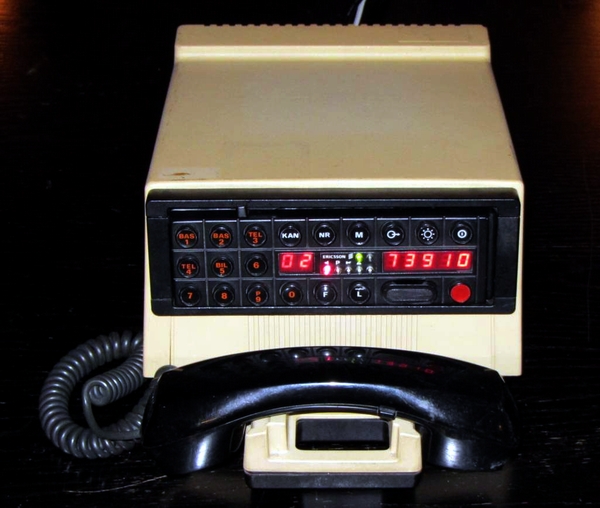

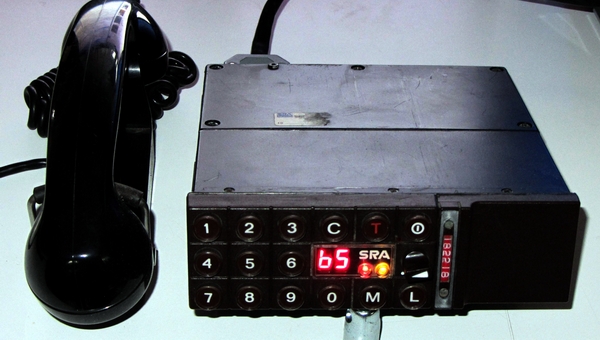

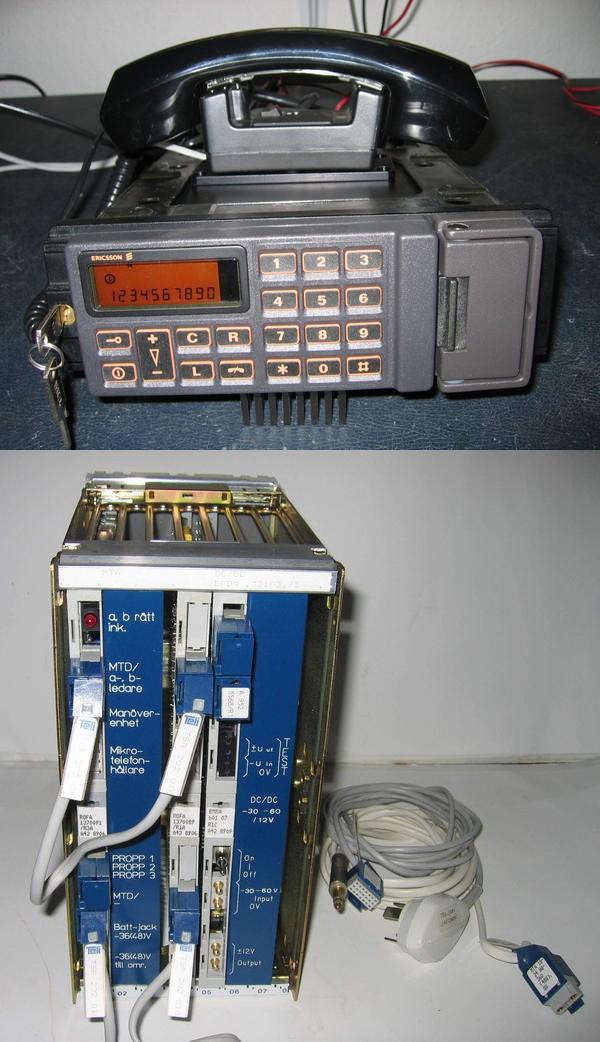

SRA CN605, MTD Mobile telephone
|
|
|
|
|
|
|
|
Ericsson

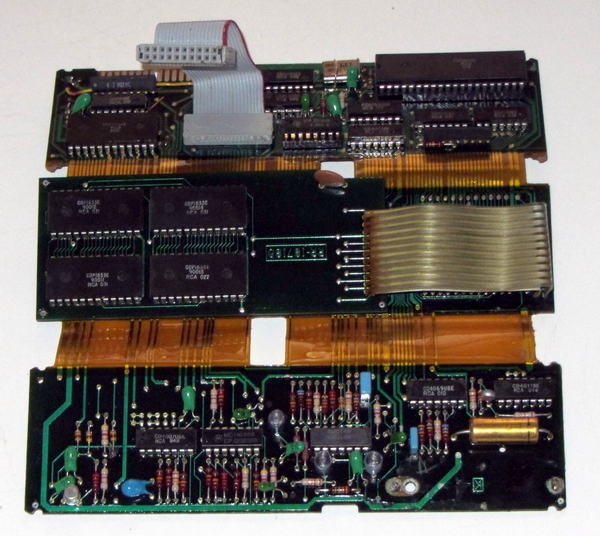

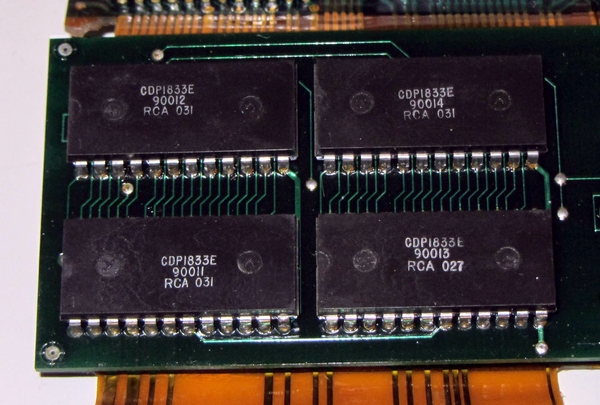

C600, A-Logic unit.
ROM 4x1K.
|
|
|
|
|
|
|
|
Ericsson
C600, A-Logic unit.
The standard Firmware is programmed in ROM on the A-Logic.
|
|
|
|
|
|
|
|
Ericsson

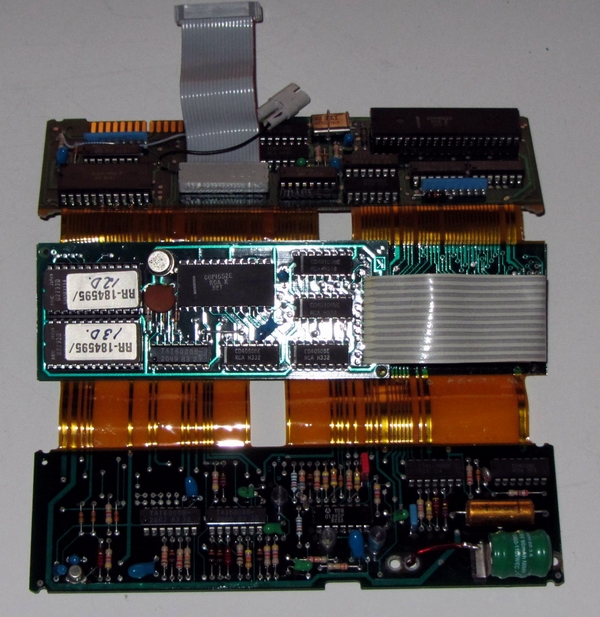

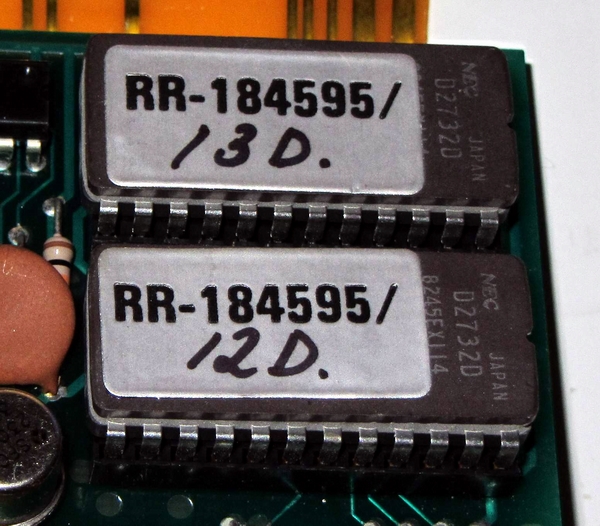

C600, D-Logic unit.
Eprom 2x4K.
|
|
|
|
|
|
|
|
Ericsson
C600, D-Logic unit.
The standard Firmware used on the D-Logic.
|
|
|
|
|
|
|
|
Ericsson
C600, U-Logic unit.
Eprom 2x8K.
|
|
|
|
|
|
|
|
Ericsson
C600, U-Logic unit.
The standard Firmware used on the U-Logic.
|
|
|
|
|
|
|
|
Ericsson
C600, U-Logic unit.
The Vattenfall Firmware used on the U-Logic.
|
|
|
|
|
|
|
|
Ericsson

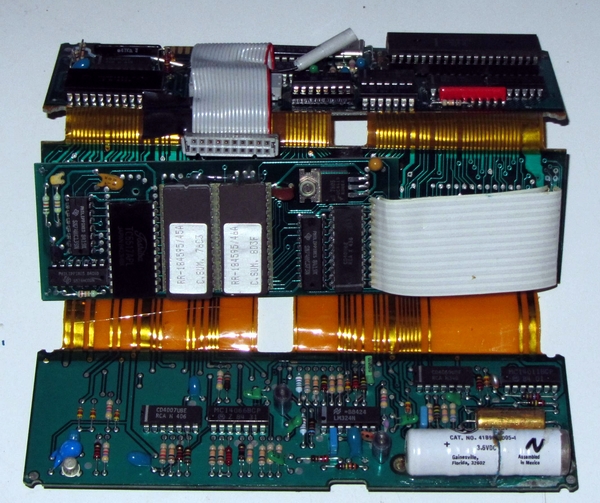

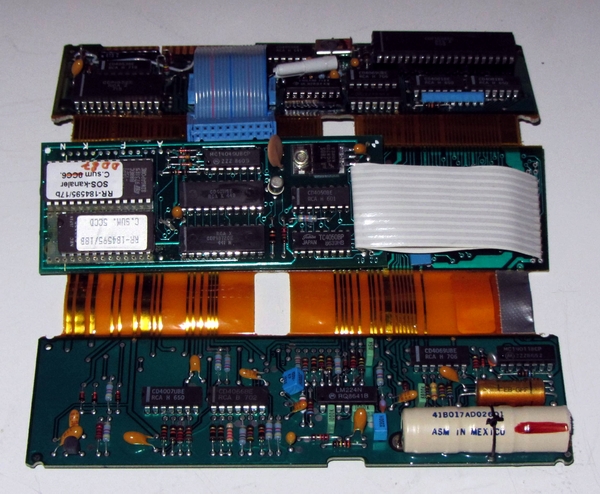

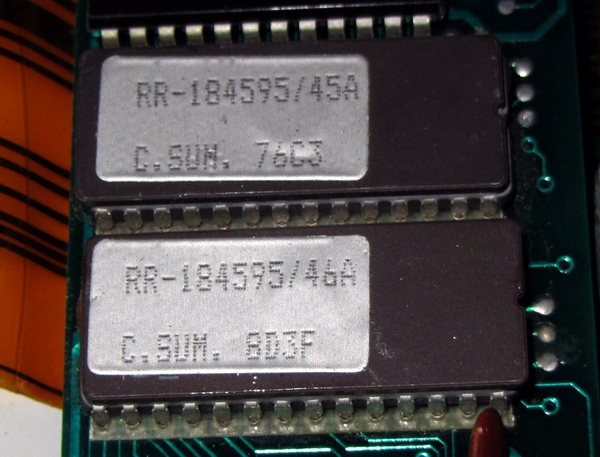

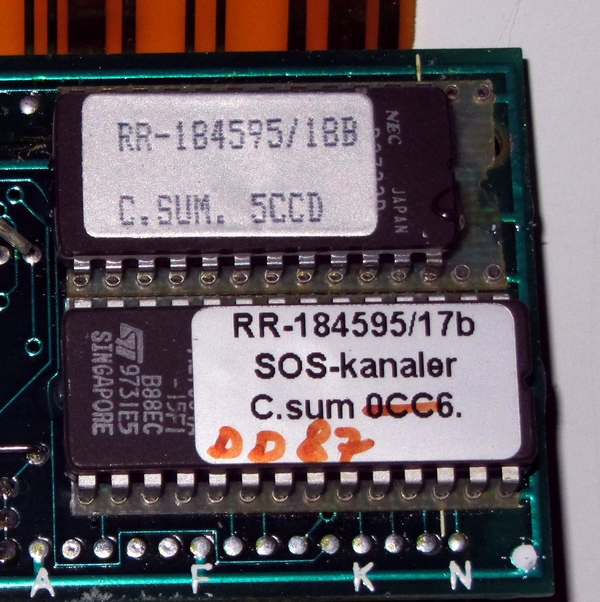

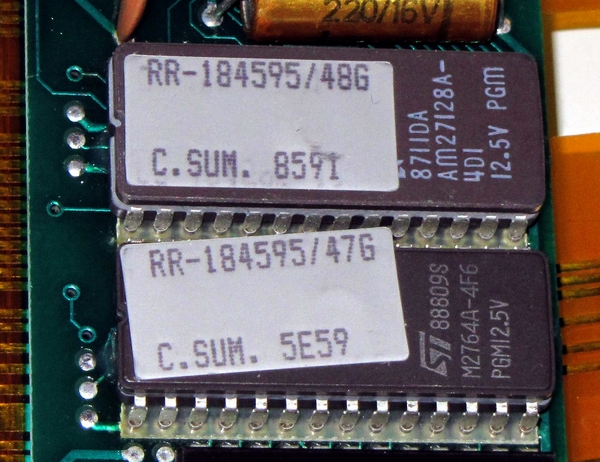

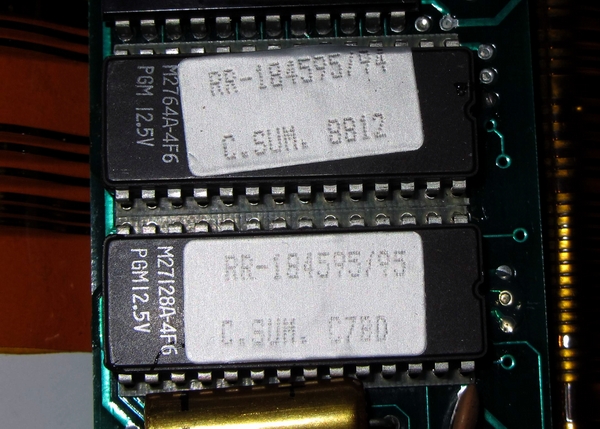

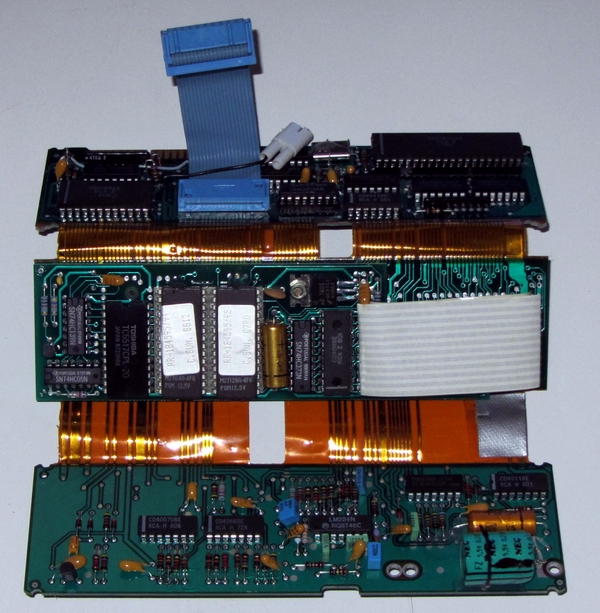

C600, Q-Logic unit.
Eprom 1x16K + 1x8K.
The backup battery is replaced with a 5.5 Volt, 0.22 F super-cap on the
Q-Logic.
|
|
|
|
|
|
|
|
Ericsson
C600, Q-Logic unit.
The standard Firmware used on the Q-Logic.
|
|
|
|
|
|
|
|

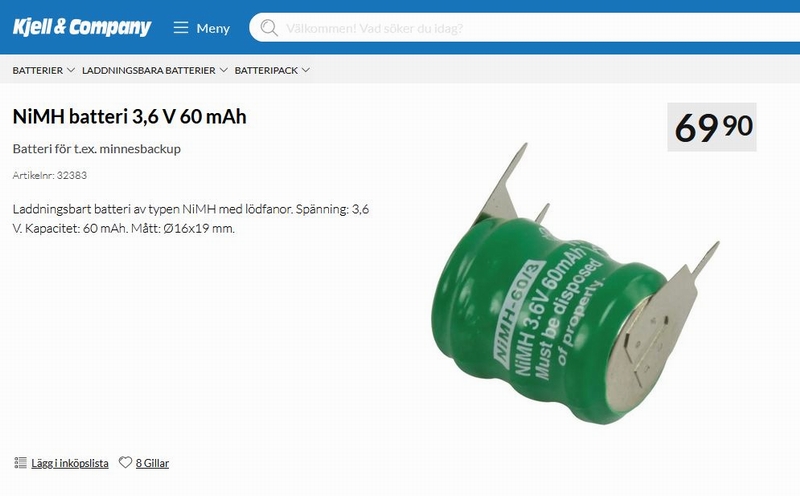

Replacement backup battery for C600 Logic board.
|
|
|
|
|
|
|
|

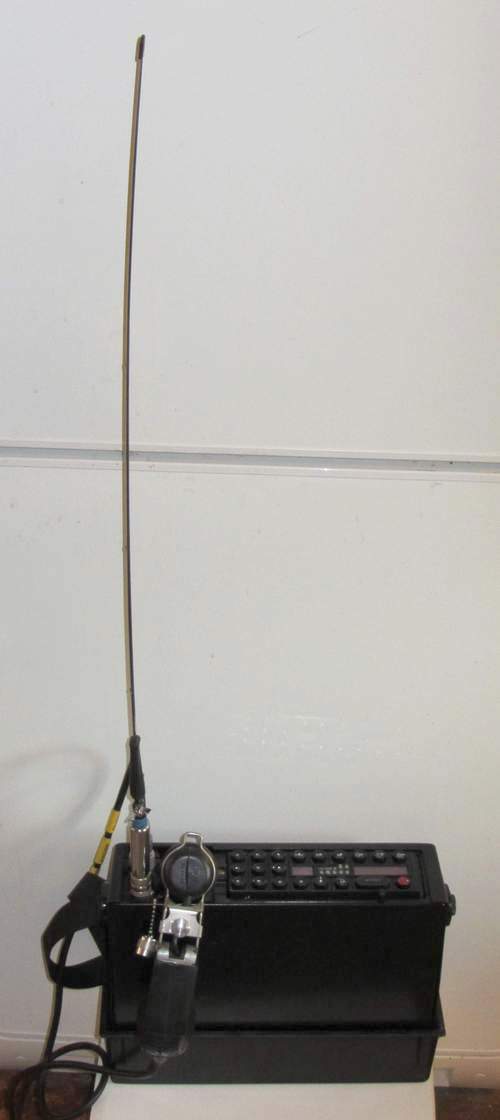

SRA R72 Civil Defence Radio
Built on a SRA C602, 99 Channels 66-88 MHz
Programmed for S70M
|
|
|
|
|
|
|
|
SRA R72 Civil Defence Radio
Eprom 1x4K + 1x8K.
B-Logic unit with SOS Firmware S70M
|
|
|
|
|
|
|
|
SRA R72 Civil Defence Radio
SOS Firmware S70M
|
|
|
|
|
|
|
|
SRA R72 Civil Defence Radio
Built on a SRA/Ericsson C602, 99 Channels 66-88 MHz
Flexible steel blade antenna
|
|
|
|
|
|
|
|
SRA R72 Civil Defence Radio
Effektindikator
|
|
|
|
|
|
|
|

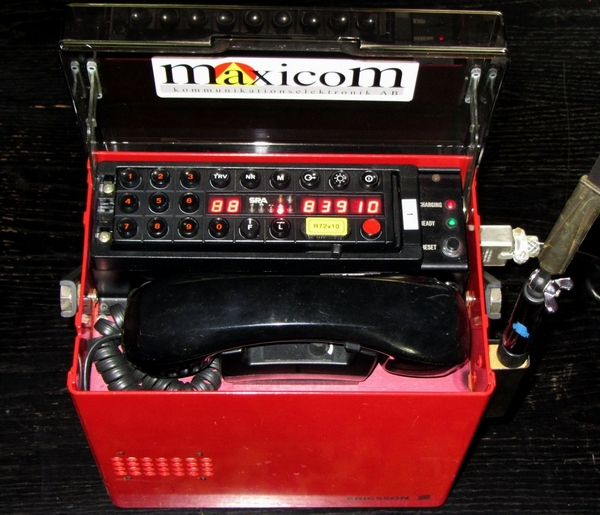

Ericsson
C600 MAXICOM, rebuilt for an internal EPROM Code plug
More info on my Code plug page
|
|
|
|
|
|
|
|

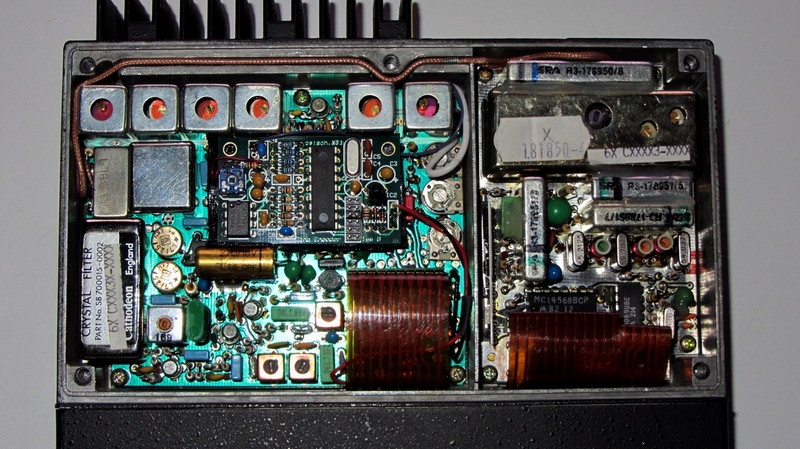

Ericsson

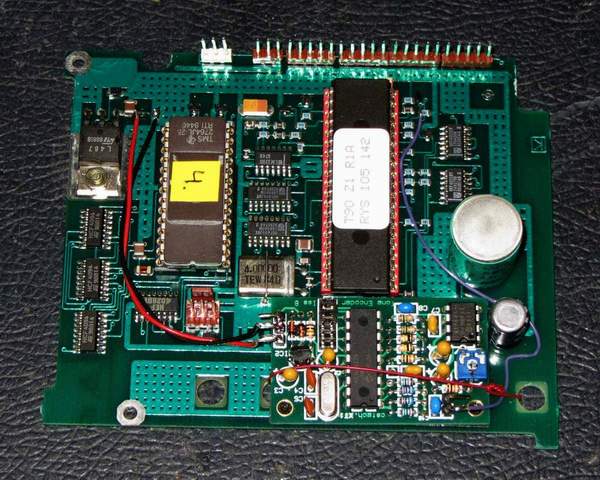

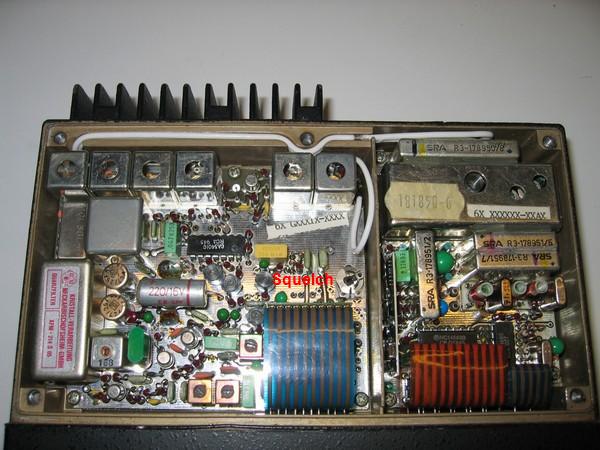

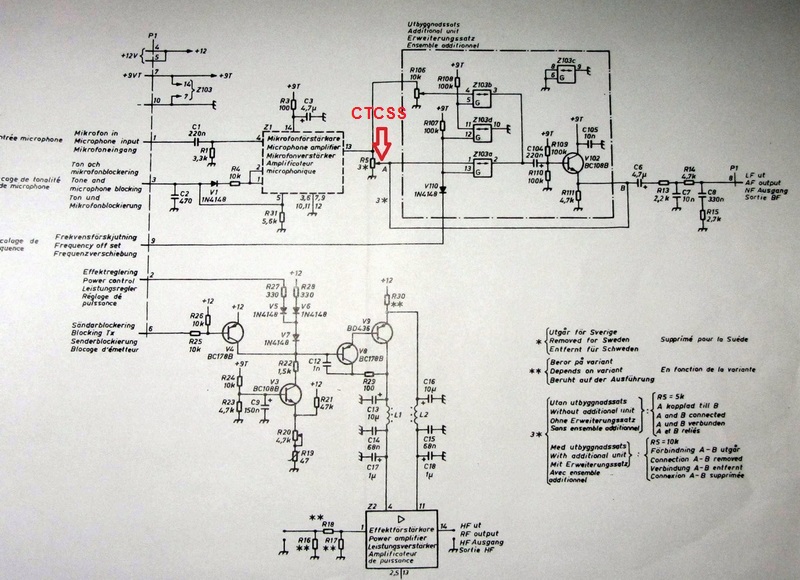

C600, vith PL-Tone Encoder installed
|
|
|
|
|
|
|
|
Ericsson
C600, vith PL-Tone Encoder installed
|
|
|
|
|
|
|
|
|
|
|
|
|
|

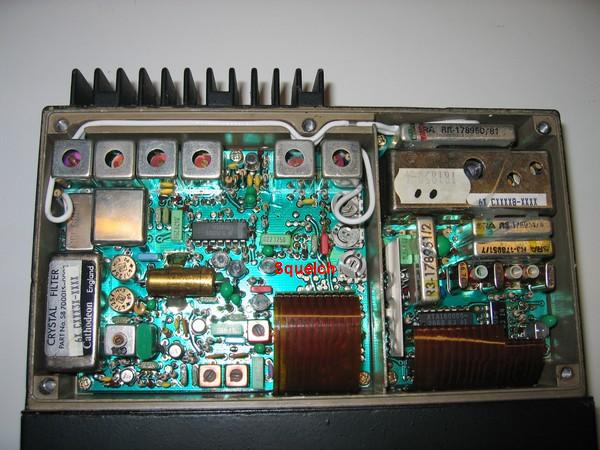

Ericsson
C600

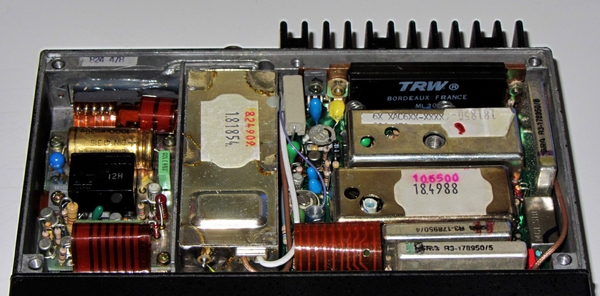

TX Board
FMO type
|
|
|
|
|
|
|
|

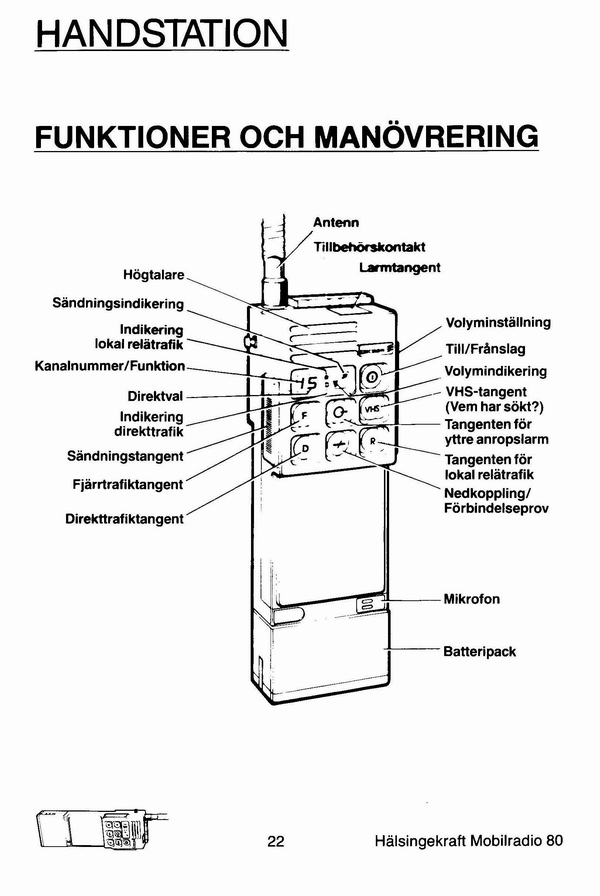

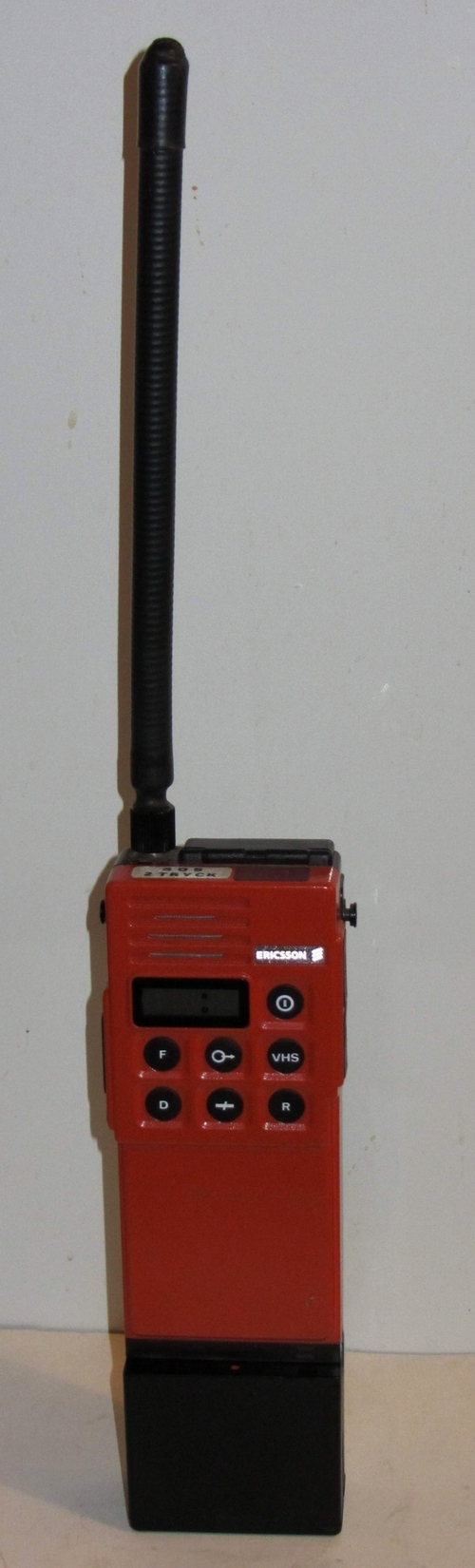

Front panel, Ericsson
C602

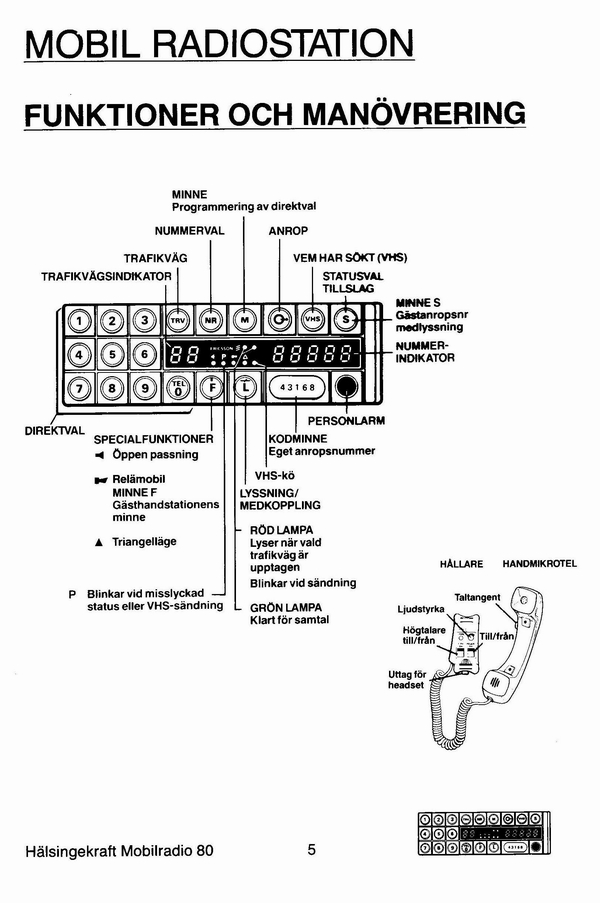

Mobilradio 80, Duplex
Vattenfall (Hälsingekraft)
|
|
|
|
|
|
|
|

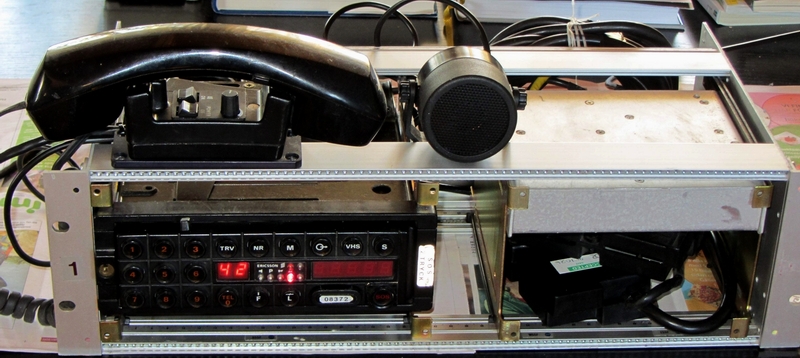

Base station, Ericsson
C602
Mobilradio 80, Duplex
Vattenfall (Hälsingekraft)
|
|
|
|
|
|
|
|

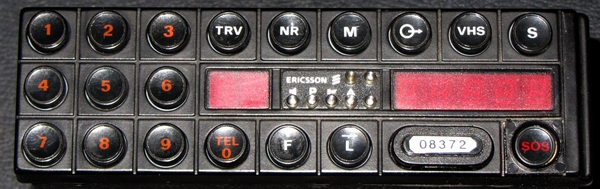

Remote Front panel, Ericsson
C602
Mobilradio 80, Duplex
Vattenfall (Hälsingekraft)
|
|
|
|
|
|
|
|
Mobile station, Ericsson
C602
Mobilradio 80, Duplex
Vattenfall (Hälsingekraft)
|
|
|
|
|
|
|
|
Ericsson
C602
Mobilradio 80, Duplex
Vattenfall (Hälsingekraft)
|
|
|
|
|
|
|
|
Ericsson
C602, Mobilradio 80
Duplex, then you need an
extra coaxial contact in the cassette
Vattenfall (Hälsingekraft)
|
|
|
|
|
|
|
|

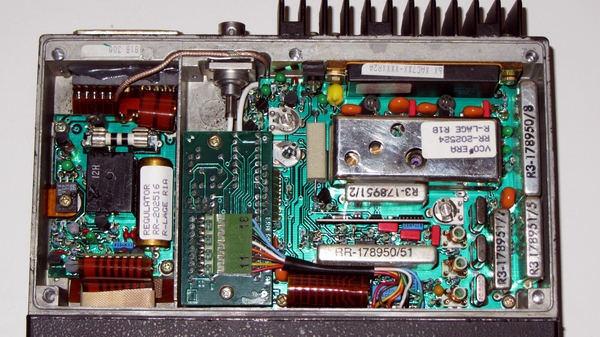

Ericsson
C602
TX Board with X-tals
Mobilradio 80, Duplex
Vattenfall (Hälsingekraft)
|
|
|
|
|
|
|
|

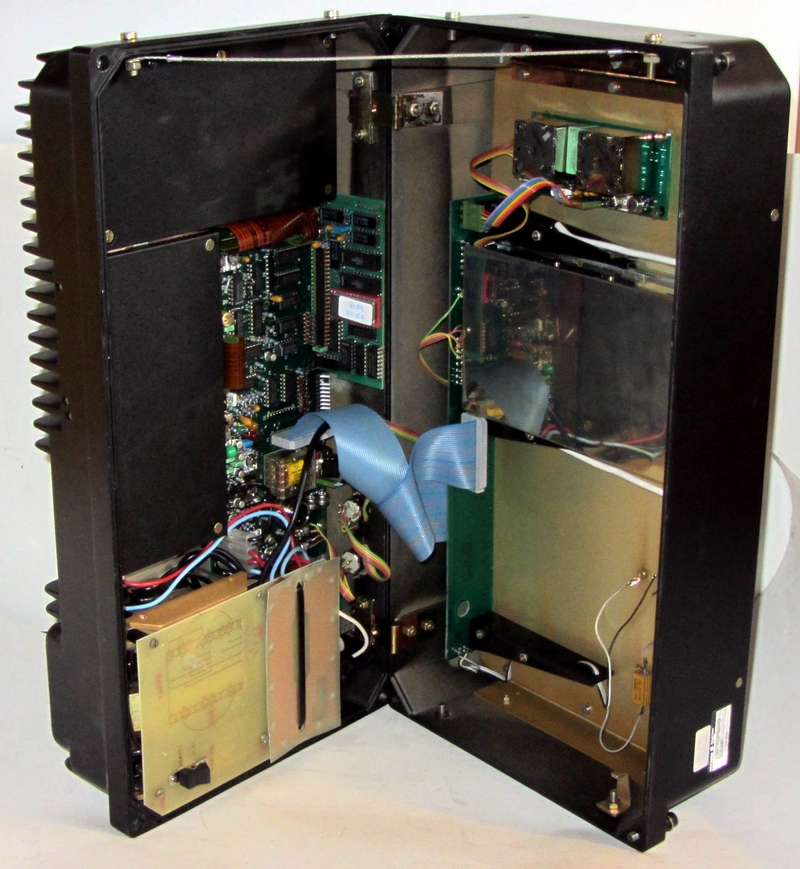

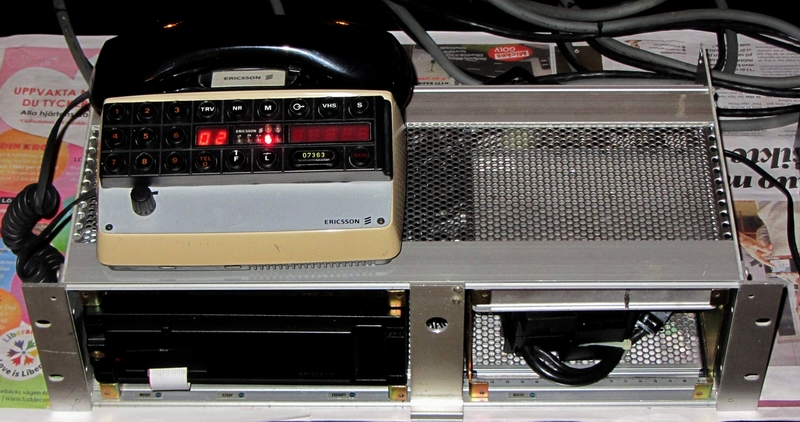

Base station, Ericsson F602
Mobilradio 80, Duplex
Vattenfall (Hälsingekraft)
|
|
|
|
|
|
|
|

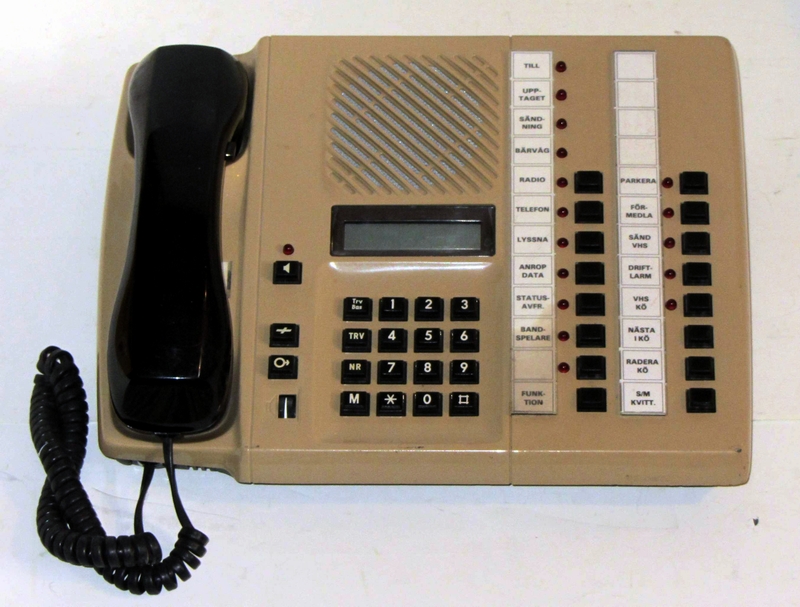

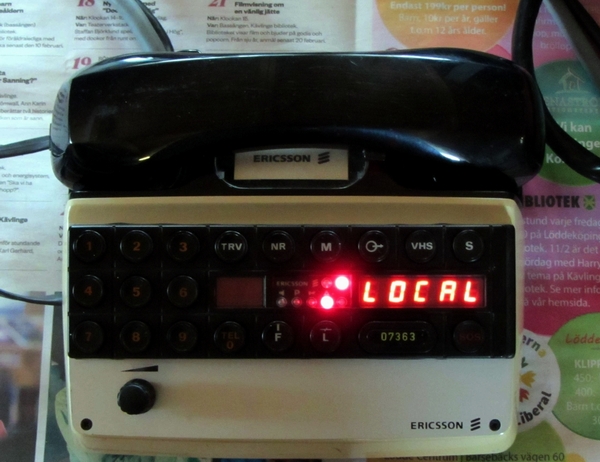

Ericsson RC 80 Remote panel
Connected to F602 by 4-Wire
Mobilradio 80, Duplex
Vattenfall (Hälsingekraft)
|
|
|
|
|
|
|
|
Ericsson
C600

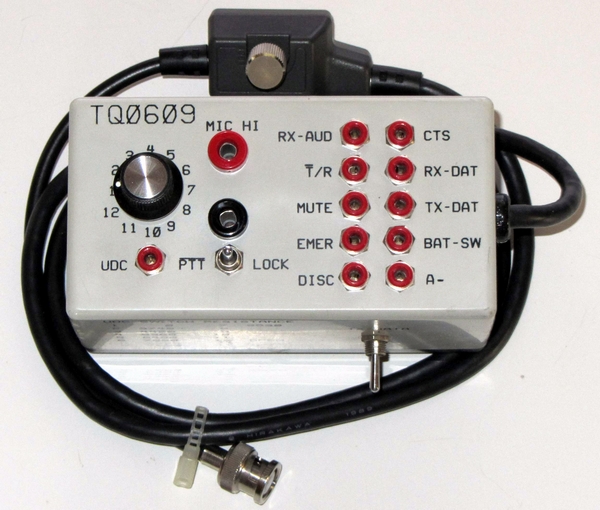

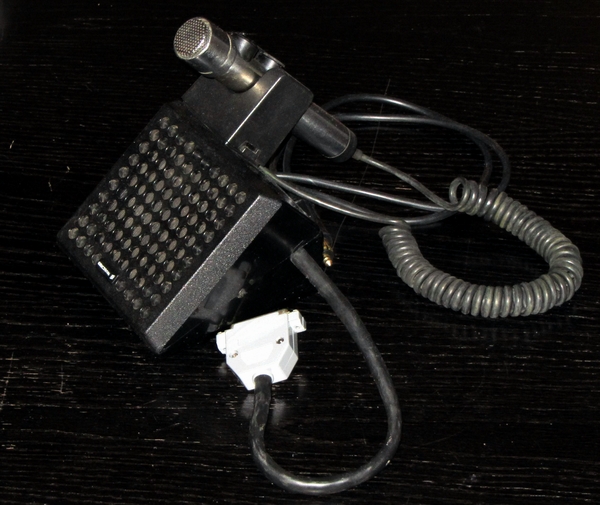

Radio test unit
|
|
|
|
|
|
|
|
Ericsson
C600

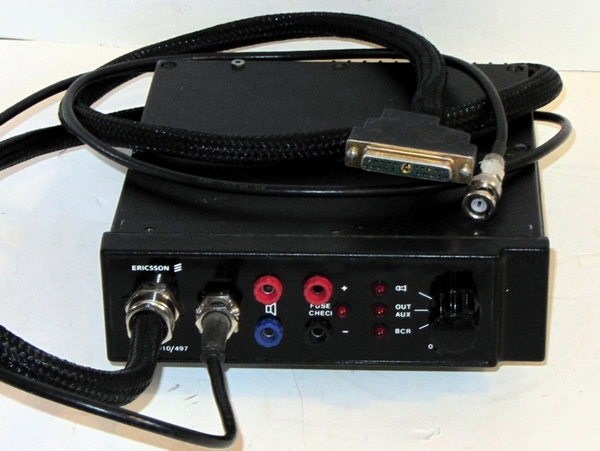

Station test adapter SS-8010/497
|
|
|
|
|
|
|
|

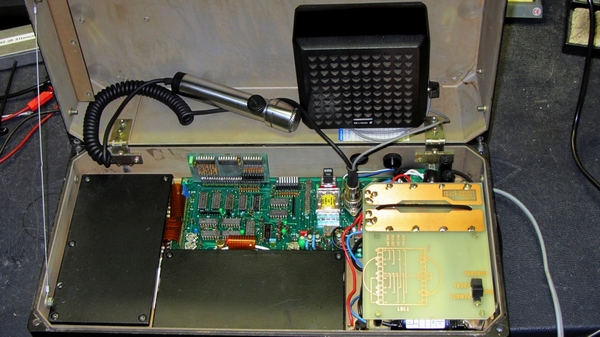

Ericsson F602
8 channels, 78/79 MHz
Used as Base station for the
Swedish Rescue service
Peiker microphone and Ericsson speaker connected to the service jack
|
|
|
|
|
|
|
|

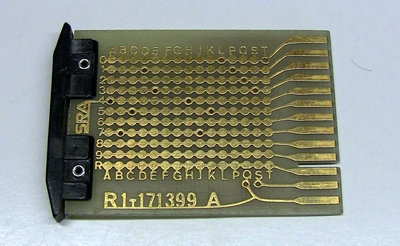

Product key for
SRA/Ericsson C600
|
|
|
|
|
|
|
|

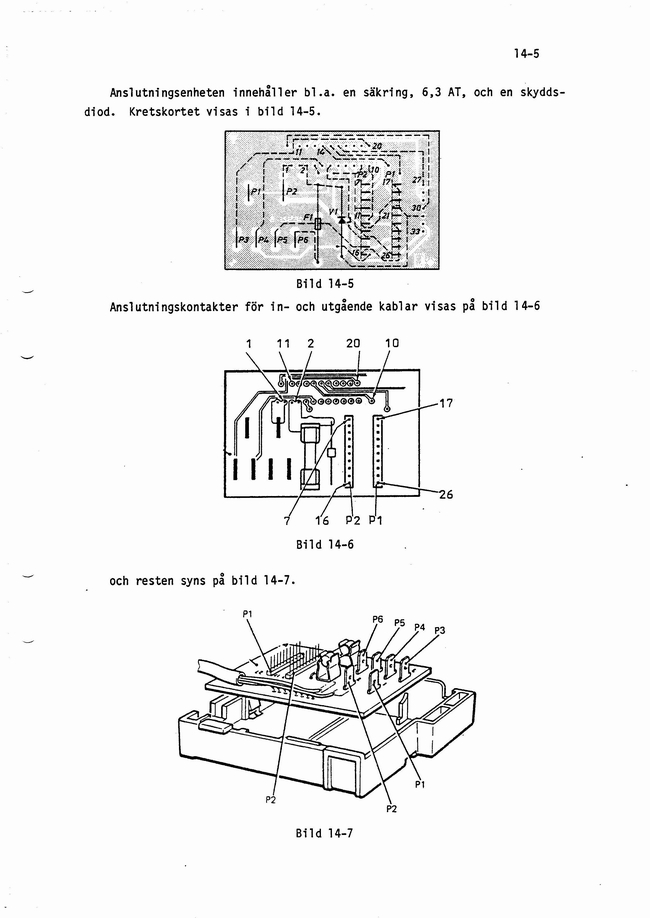

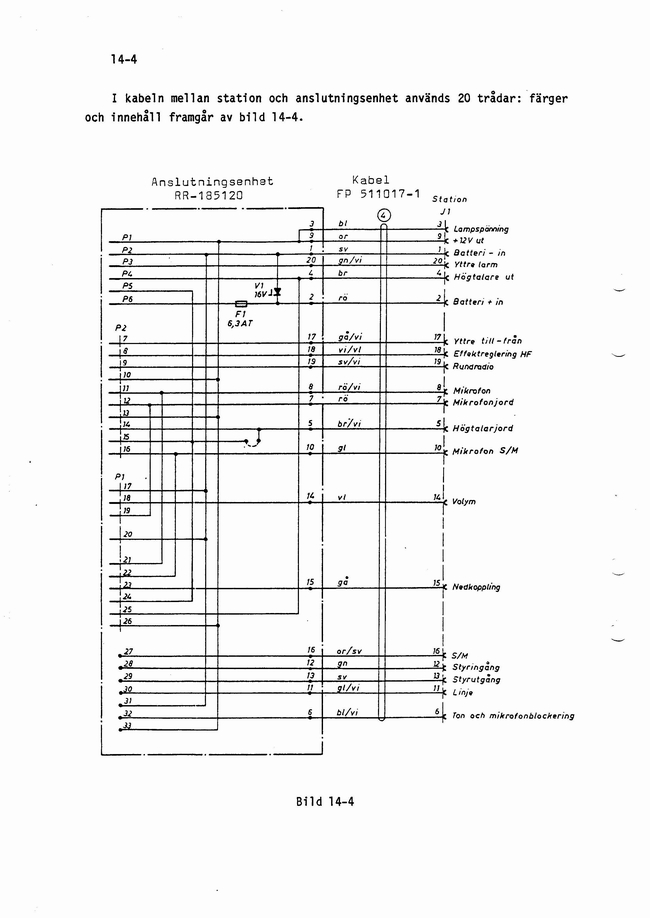

Connection box for
SRA/Ericsson C600 (Tvålkopp)
|
|
|
|
|
|
|
|
Connection box for
SRA/Ericsson C600 (Tvålkopp)
|
|
|
|
|
|
|
|

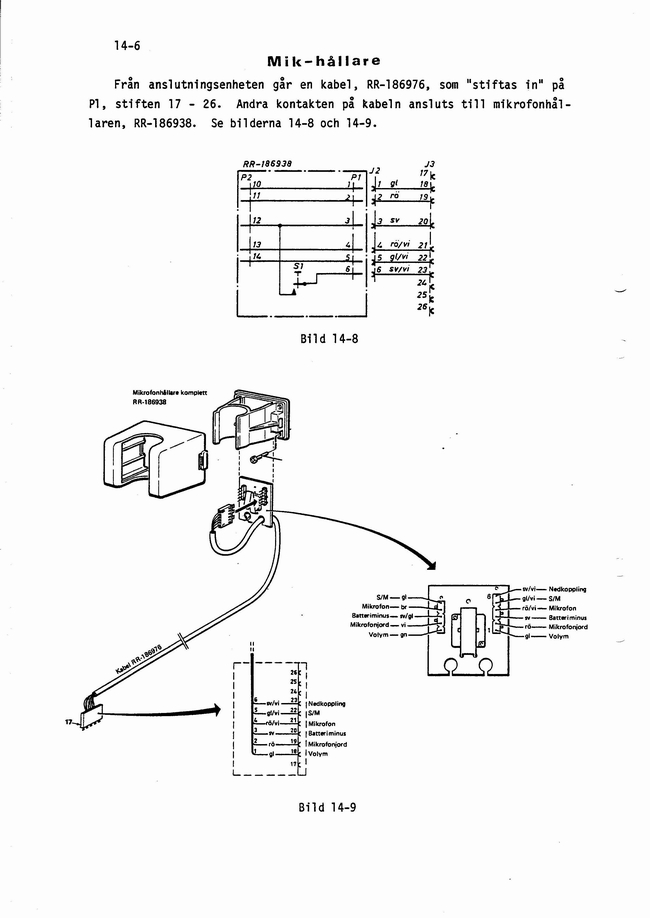

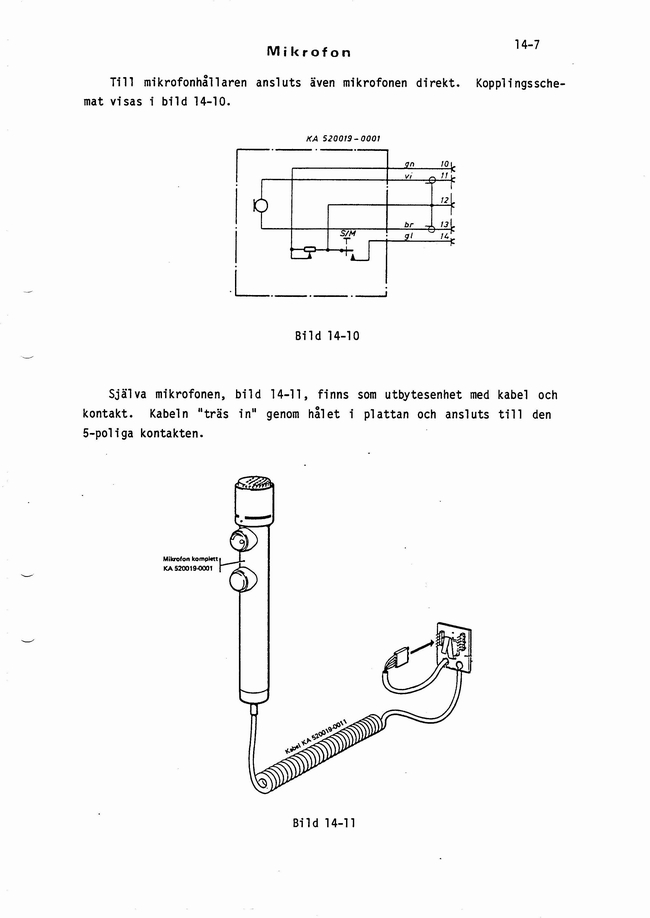

Mic connection for
SRA/Ericsson C600
|
|
|
|
|
|
|
|
Mic connection for
SRA/Ericsson C600
|
|
|
|
|
|
|
|
|
|
|

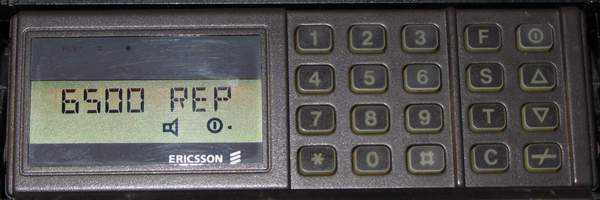

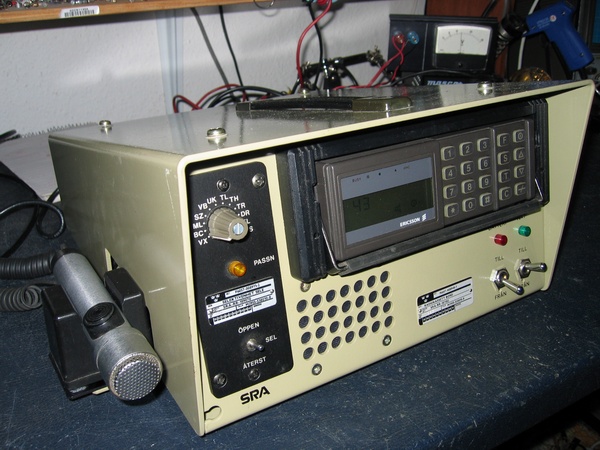

Ericsson
C704, 145 MHz amateur
band.
|
|
|
|
|
|
|
|

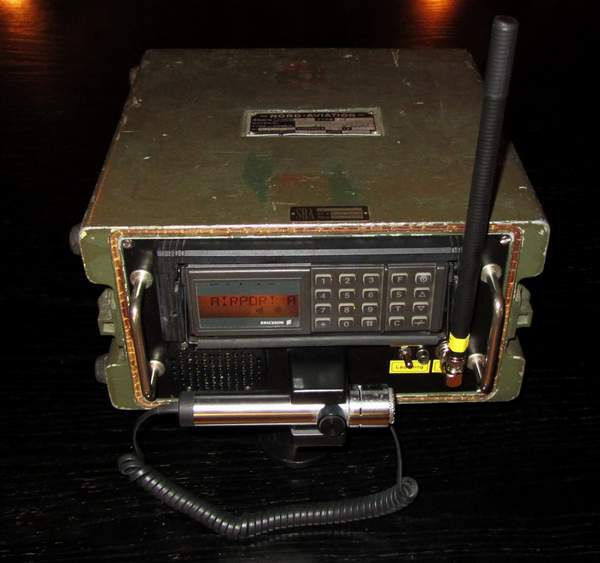

Ericsson
C702, 68-88 MHz
Military version, Output power: Low 2/High 20 Watts
Internal 7 Ah sealed Lead-Acid battery for emergency back-up
External connection for 12 Volt power supply
|
|
|
|
|
|
|
|

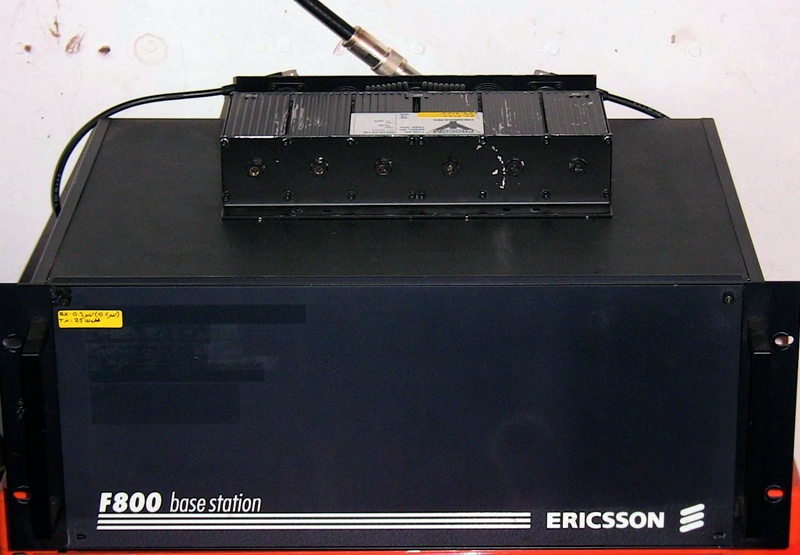

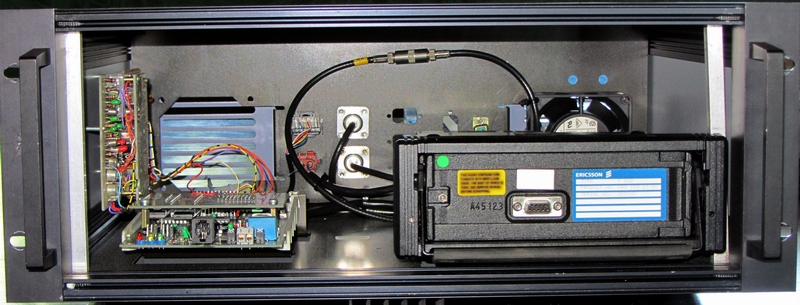

Ericsson F802 Repeater
Full duplex, with 2-tone start
68 - 88 MHz
|
|
|
|
|
|
|
|
Ericsson F802 Repeater
Full duplex, with 2-tone start
68 - 88 MHz
|
|
|
|
|
|
|
|

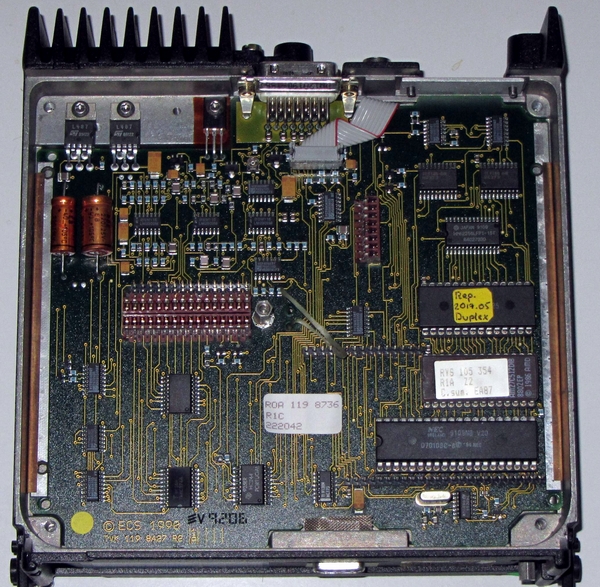

Ericsson F802 Repeater
System board
|
|
|
|
|
|
|
|

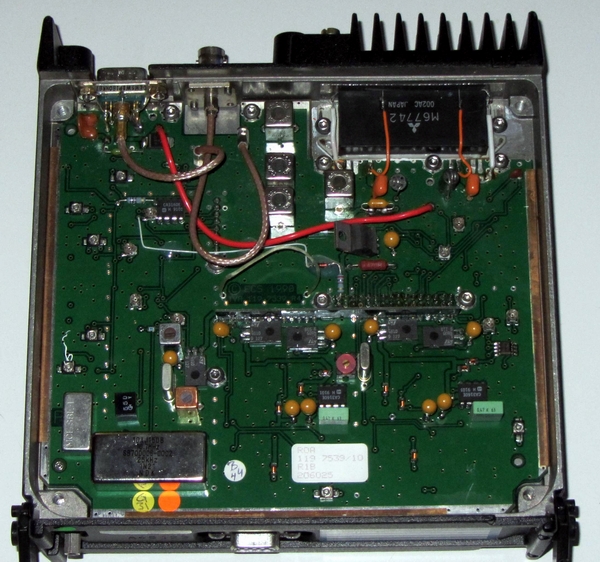

Ericsson F802 Repeater
Duplex Radio board
|
|
|
|
|
|
|
|

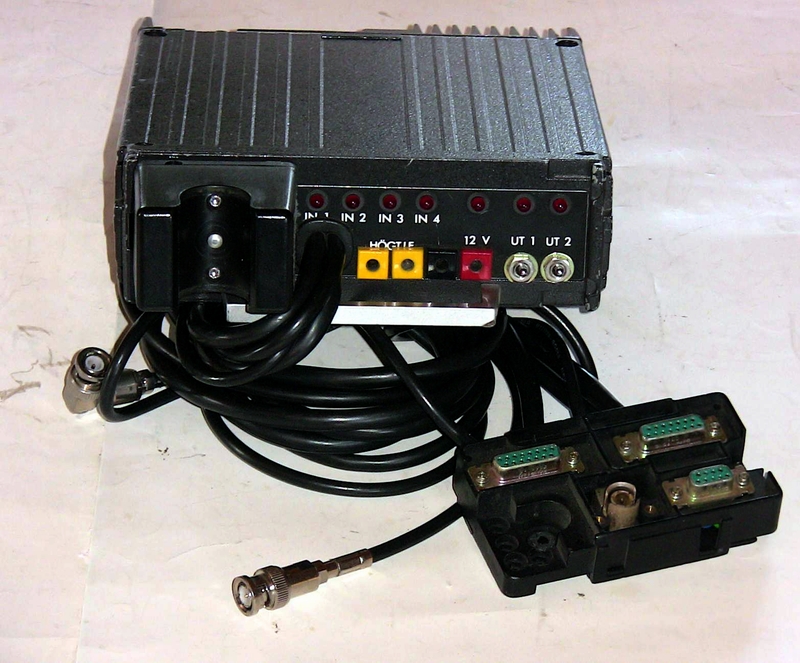

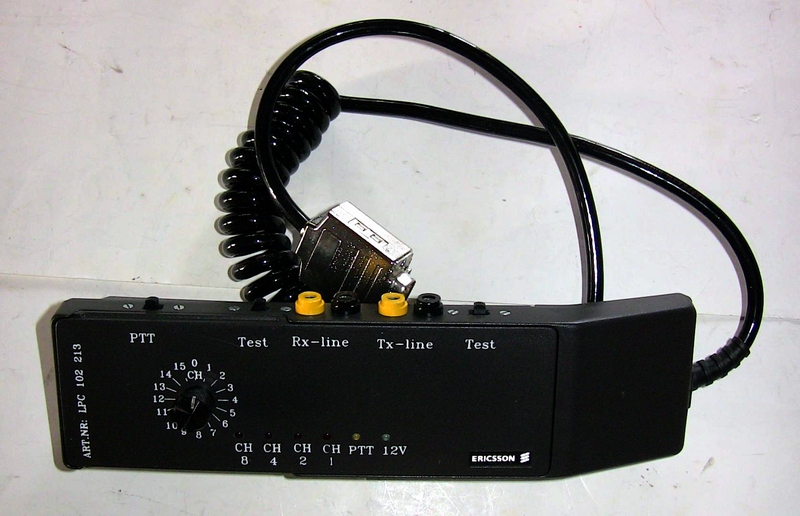

Test/Control unit for Ericsson F800
Connects to the front connector on the radio
|
|
|
|
|
|
|
|

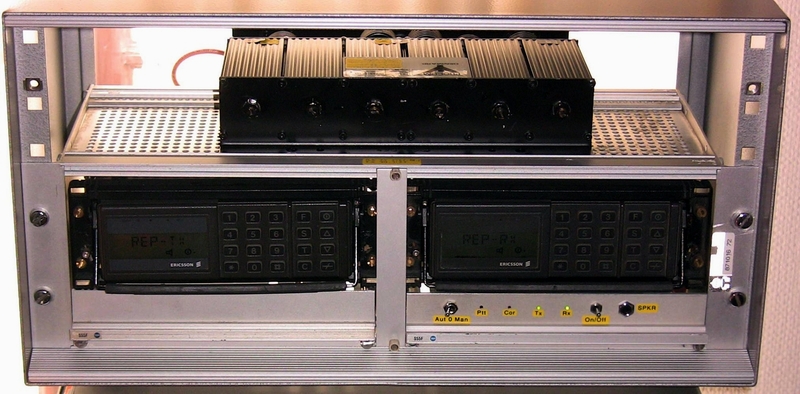

Repeater, built with 2 ea Ericsson C702
|
|
|
|
|
|
|
|
Repeater, built with 2 ea Ericsson C702

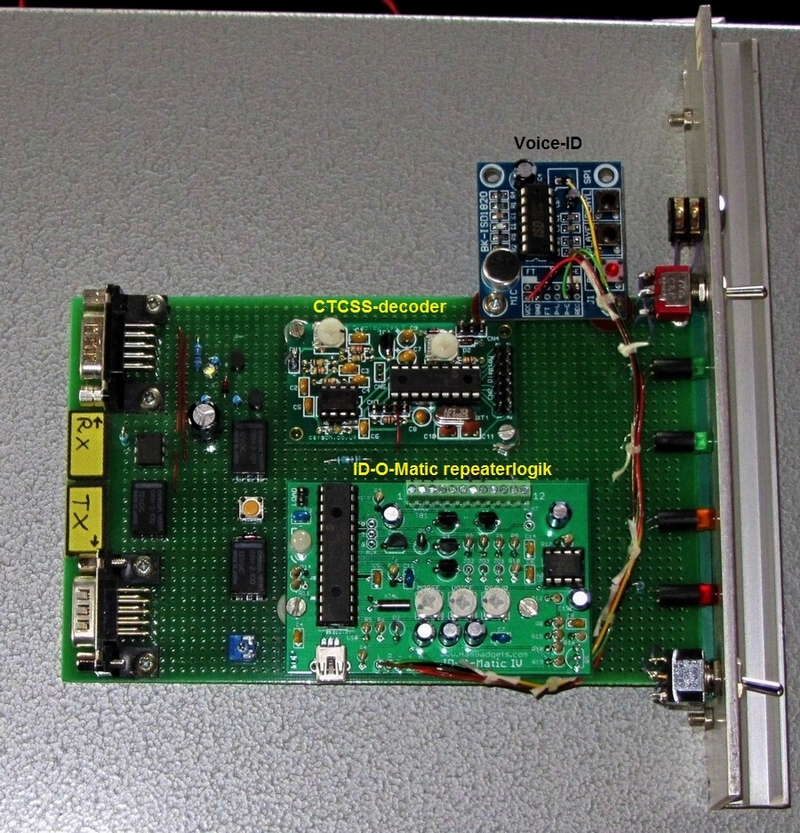

Repeater logic card with CTCSS on RX and Voice-ID
|
|
|
|
|
|
|
|

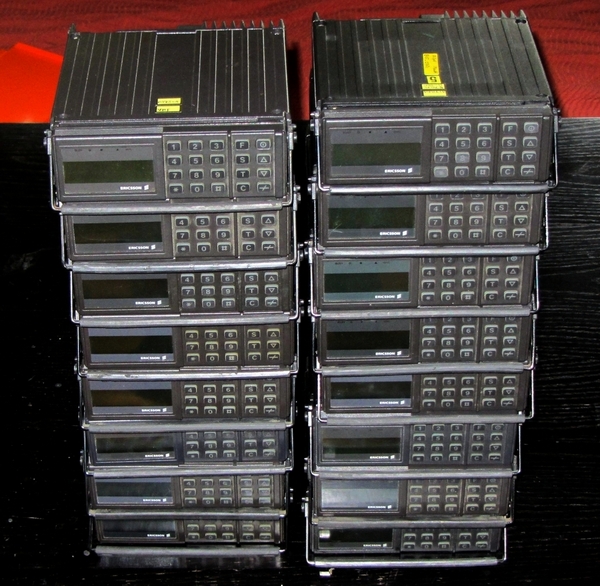

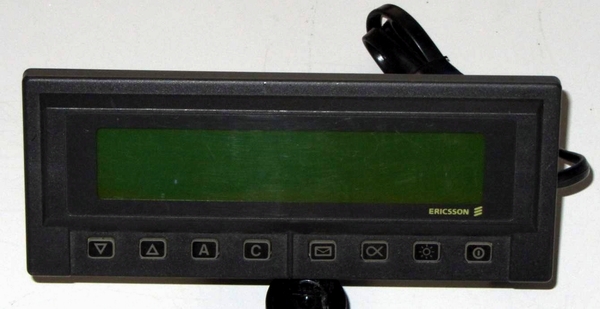

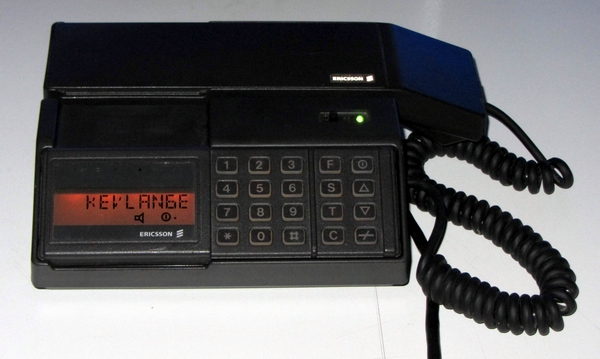

Ericsson
C702

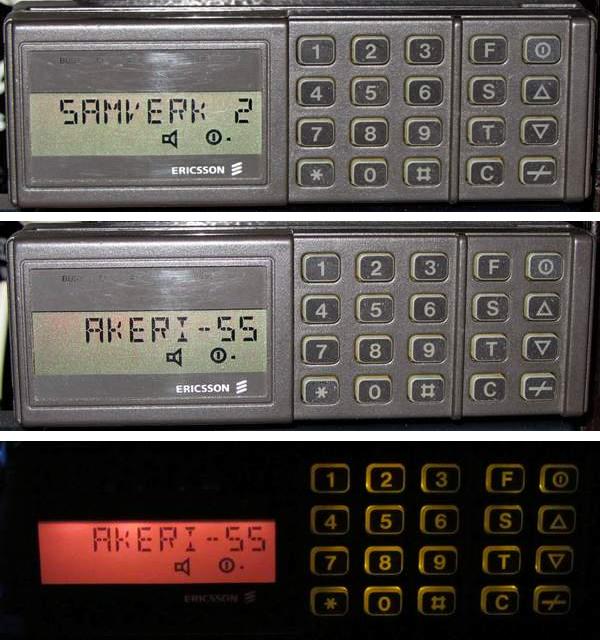

C700 supports channel text on the display
The text function is programmed with RAK-Code
|
|
|
|
|
|
|
|
Ericsson
C700

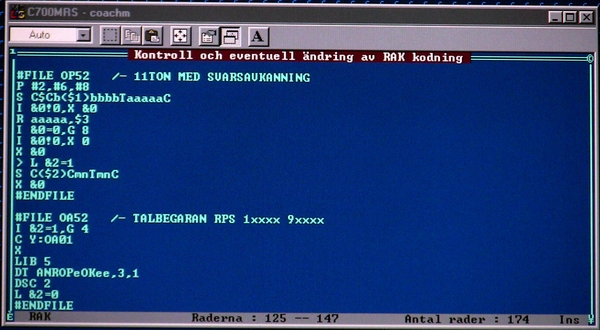

This is RAK-Code
|
|
|
|
|
|
|
|

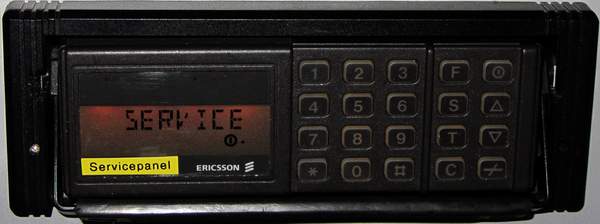

Service Panel for Ericsson
C700
Attaching this panel to the C700 gives access to a special Service Mode
|
|
|
|
|
|
|
|

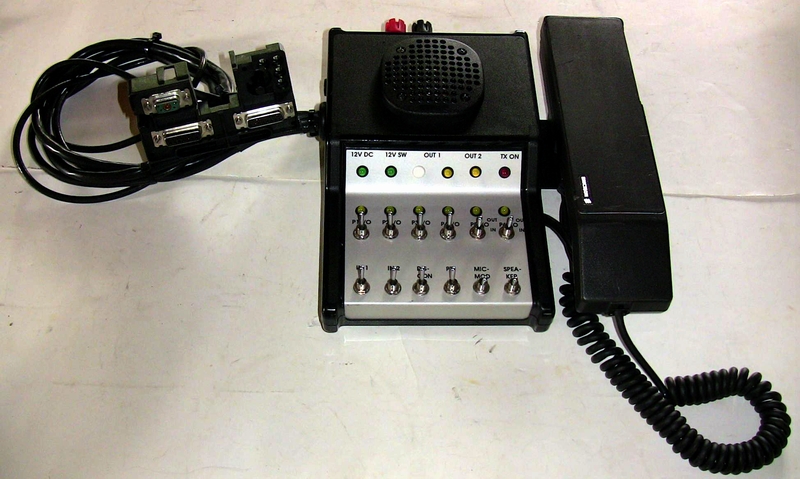

Test Panel for Ericsson
C700
Attaching this panel to the C700 gives access to all external functions
|
|
|
|
|
|
|
|
Test adapter Ericsson
C700
|
|
|
|
|
|
|
|
Control unit for Ericsson
C700
KEP 813 06/2 R2C
|
|
|
|
|
|
|
|

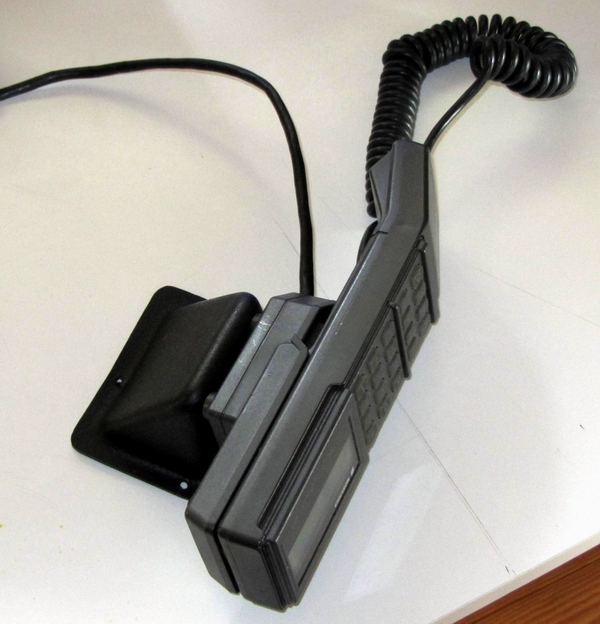

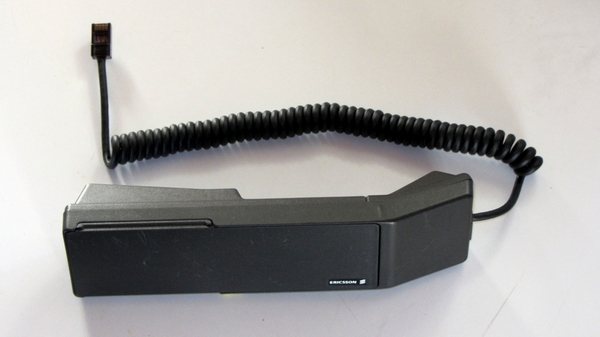

Handset for Ericsson
C700
|
|
|
|
|
|
|
|
Handset for Ericsson
C700
With Front panel
|
|
|
|
|
|
|
|
Handset for Ericsson
C700

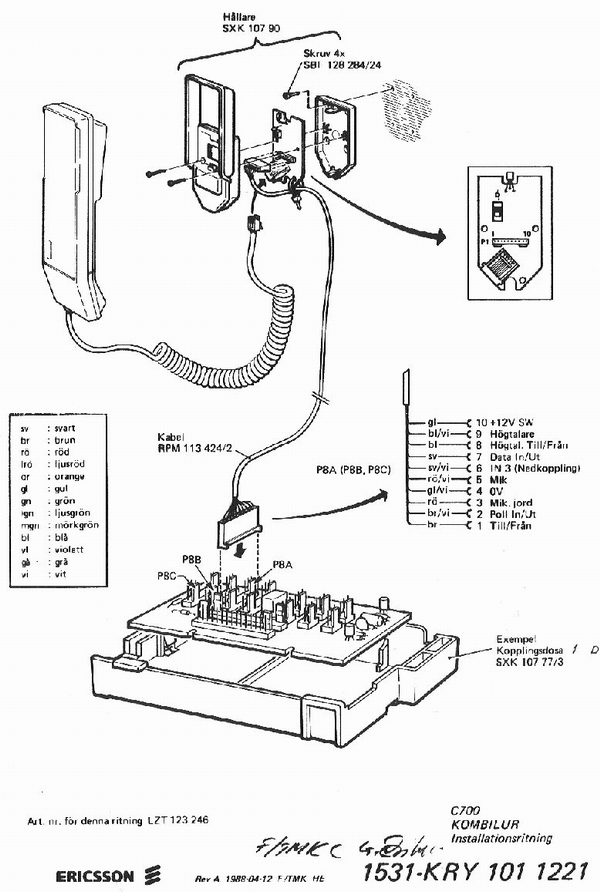

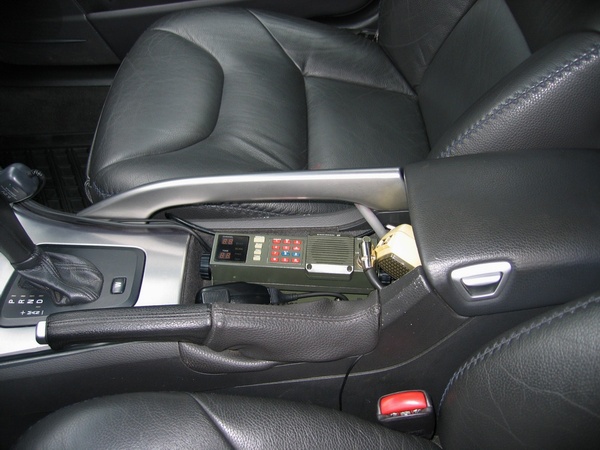

Installation
|
|
|
|
|
|
|
|
Ericsson
C702

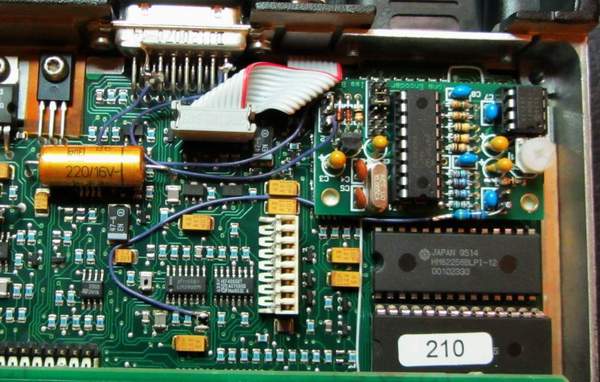

CTCSS (PL-tone) Encoder installed
|
|
|
|
|
|
|
|
Ericsson
C702

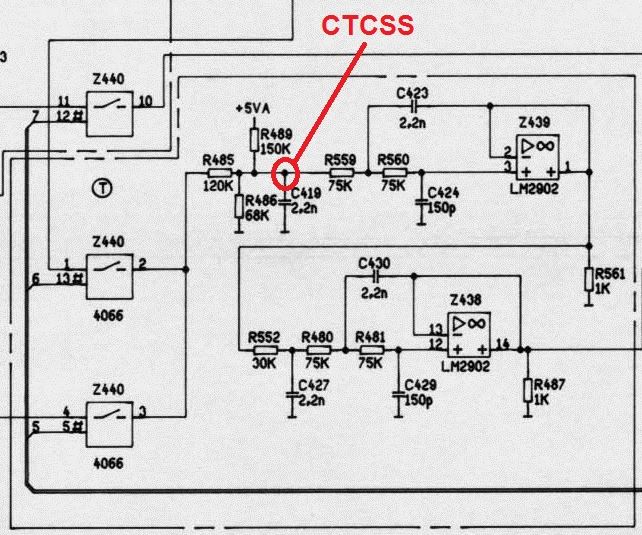

CTCSS (PL-tone) Encoder injection point
|
|
|
|
|
|
|
|
Ericsson

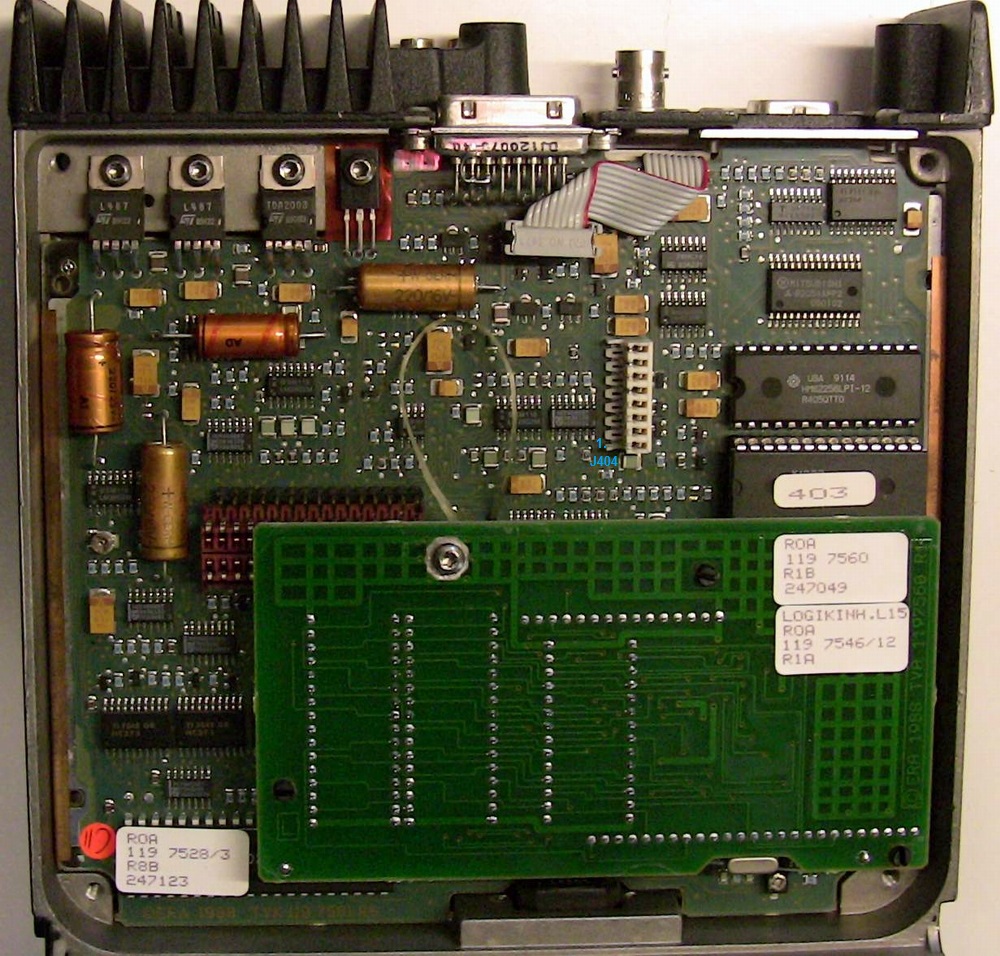

C700

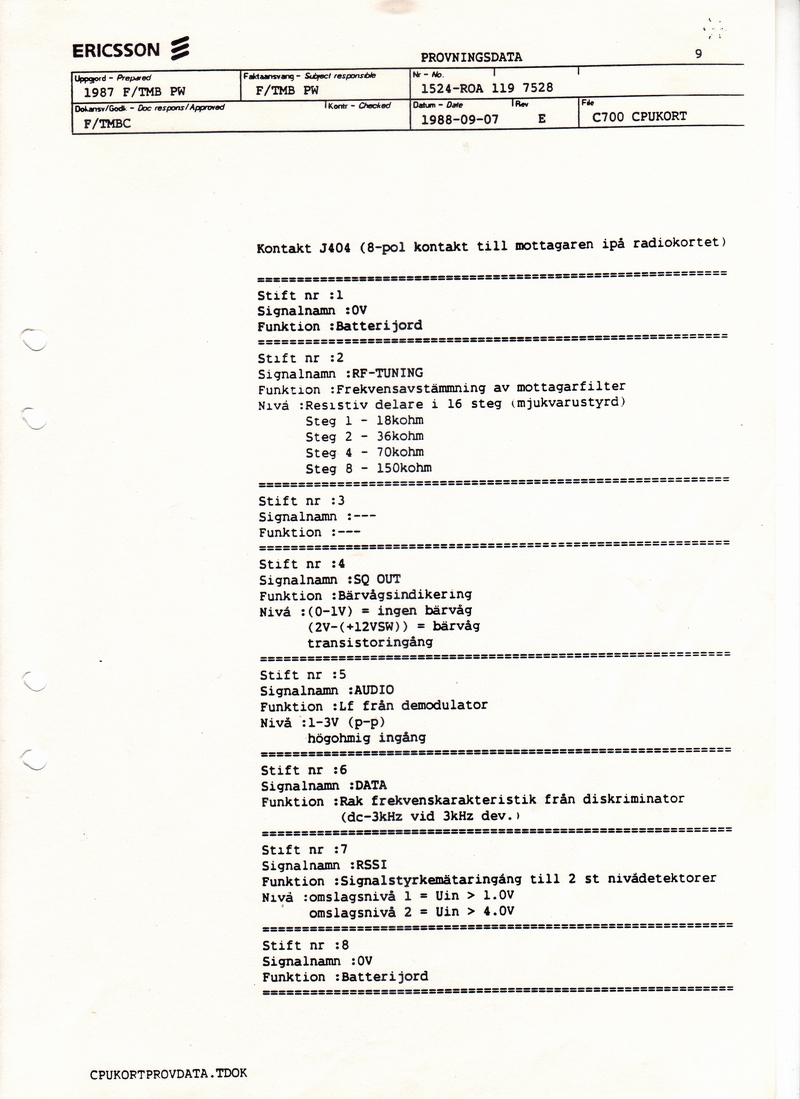

Logic card
Contact J404
|
|
|
|
|
|
|
|
Ericsson
C700

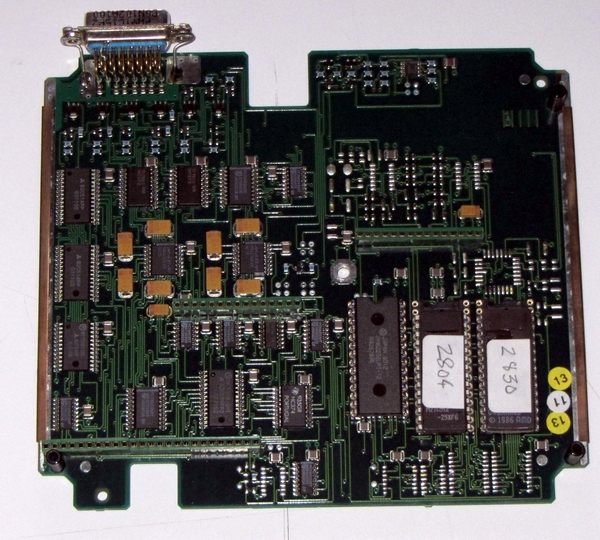

Communication card
|
|
|
|
|
|
|
|
Ericsson
C700

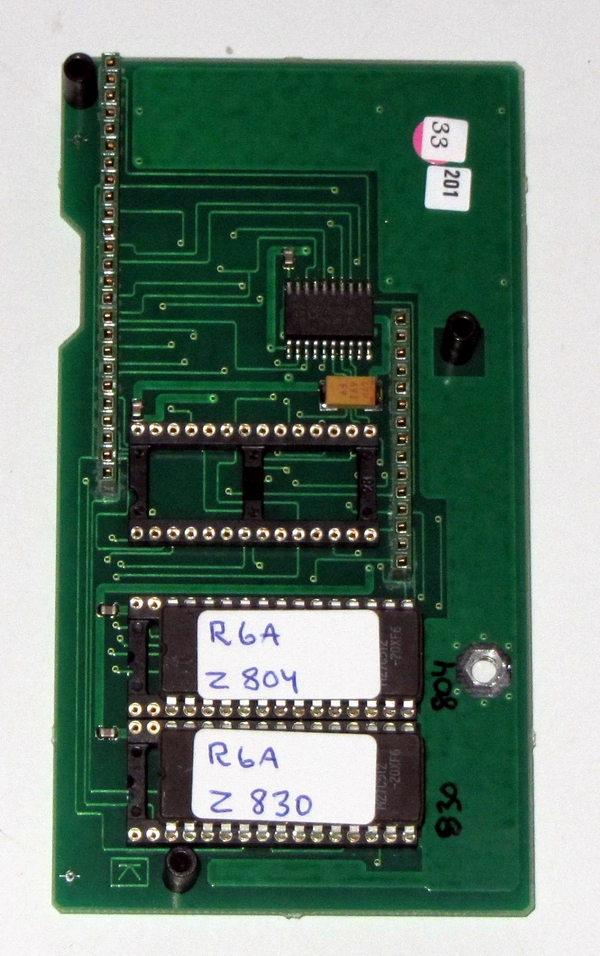

Memory card
|
|
|
|
|
|
|
|
Ericsson
C700

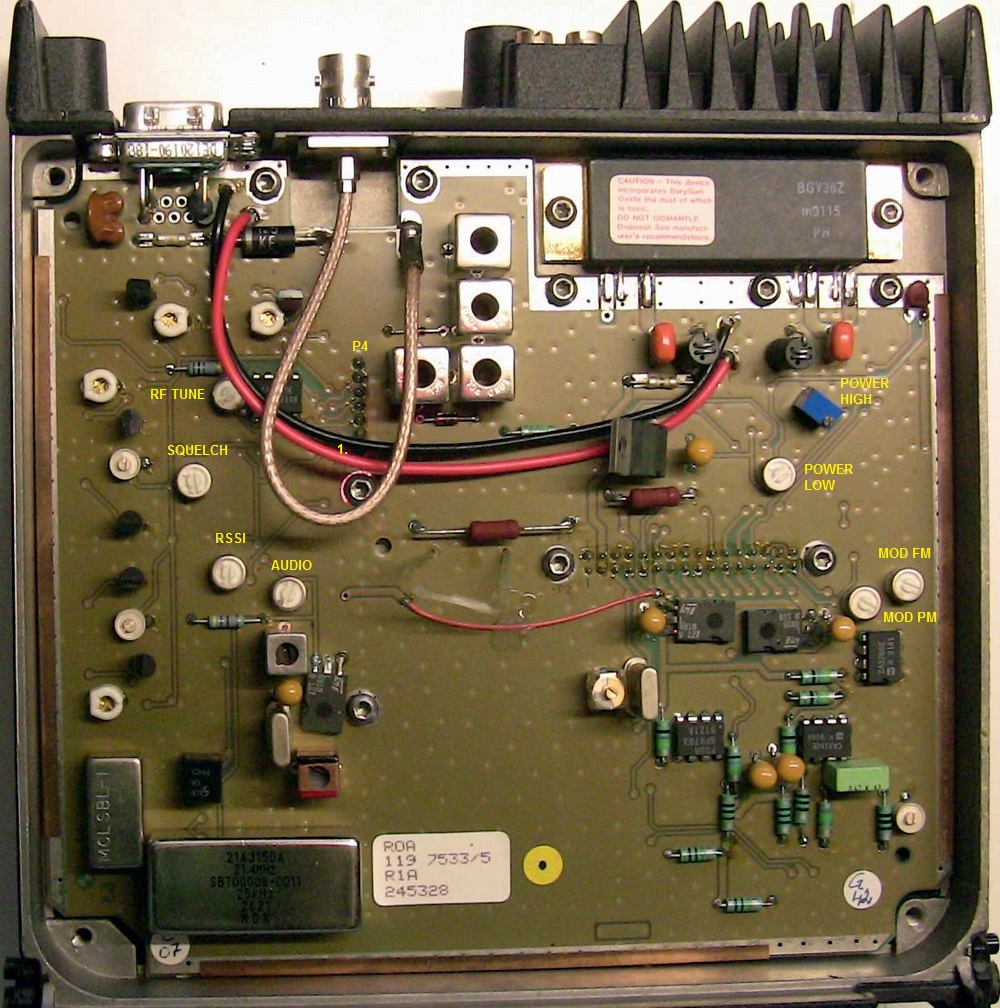

Radio Card
Tuning points
|
|
|
|
|
|
|
|

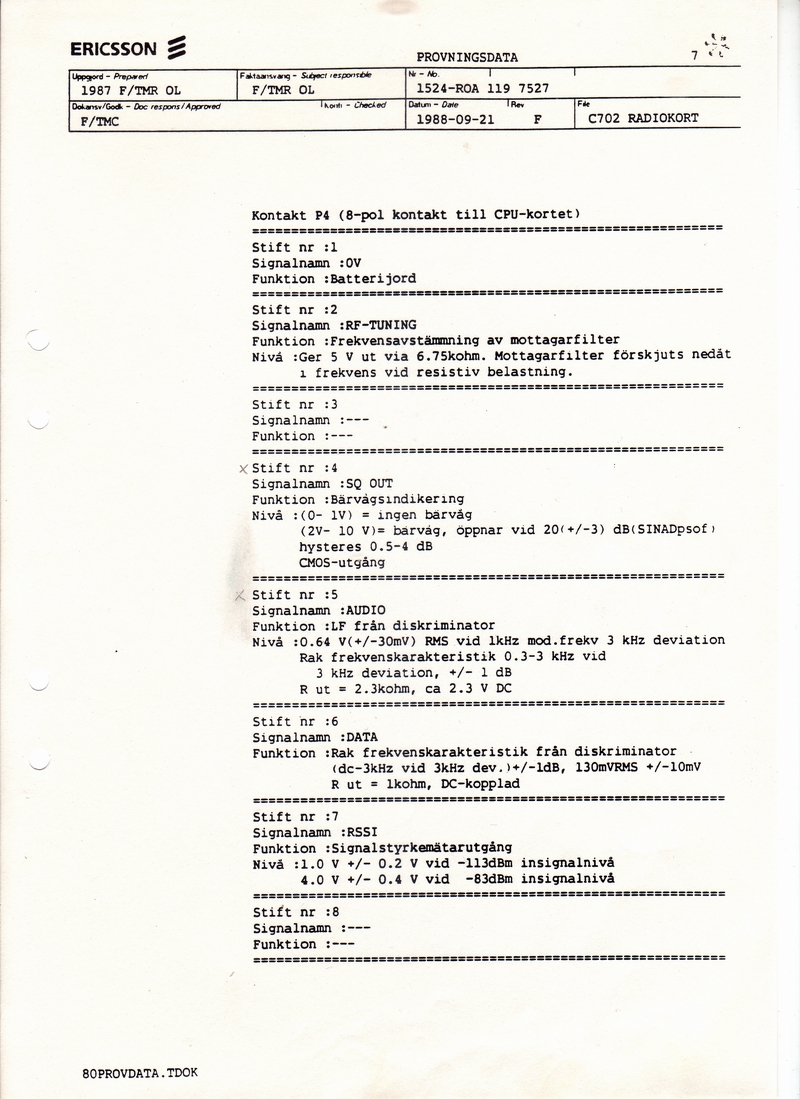

Ericsson
C700
Radio Card
Contact P4
|
|
|
|
|
|
|
|
Ericsson

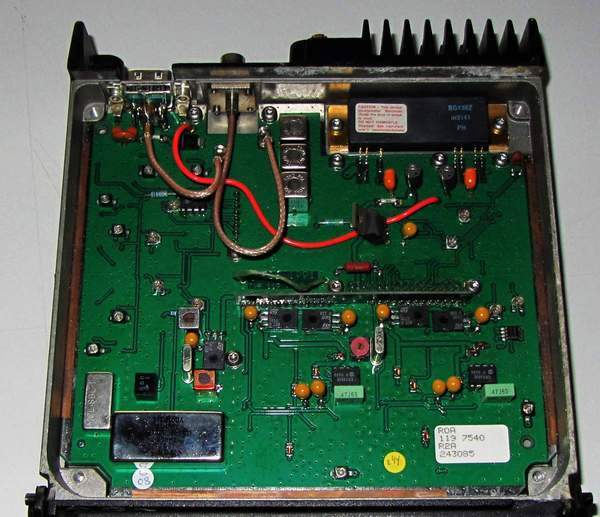

C704
Duplex version
|
|
|
|
|
|
|
|
Ericsson
C702

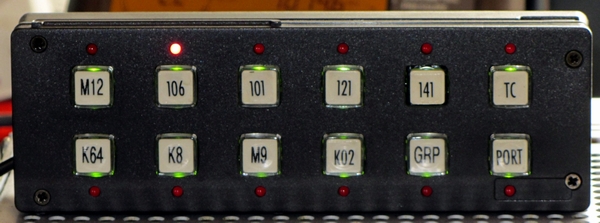

Direct selection panel
Used in a fire truck for quick selection of channels and sel-call
|
|
|
|
|
|
|
|

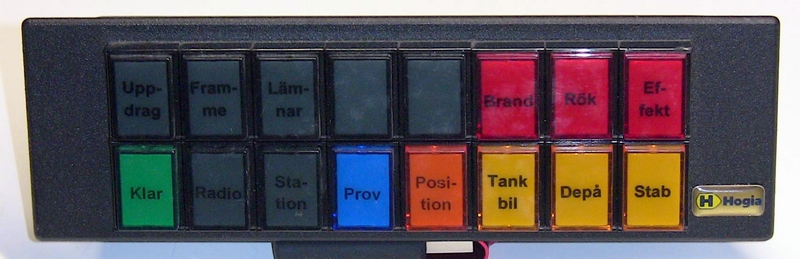

Status panel
Used in a fire truck for quick status report
|
|
|
|
|
|
|
|
Ericsson
C700

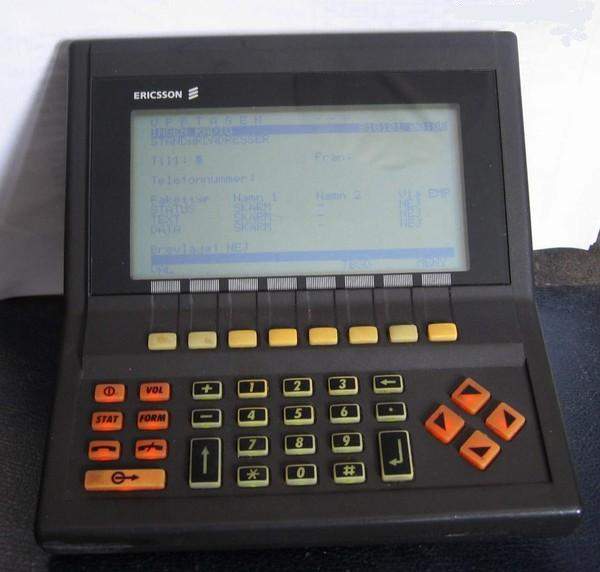

MOBITEX Panel
|
|
|
|
|
|
|
|
Ericsson
C700
MOBITEX Panel
|
|
|
|
|
|
|
|
Ericsson
C700

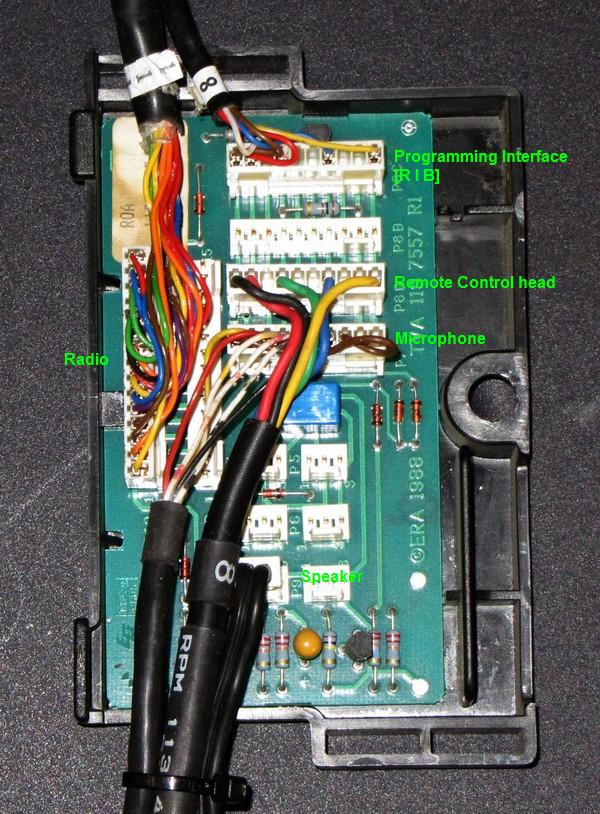

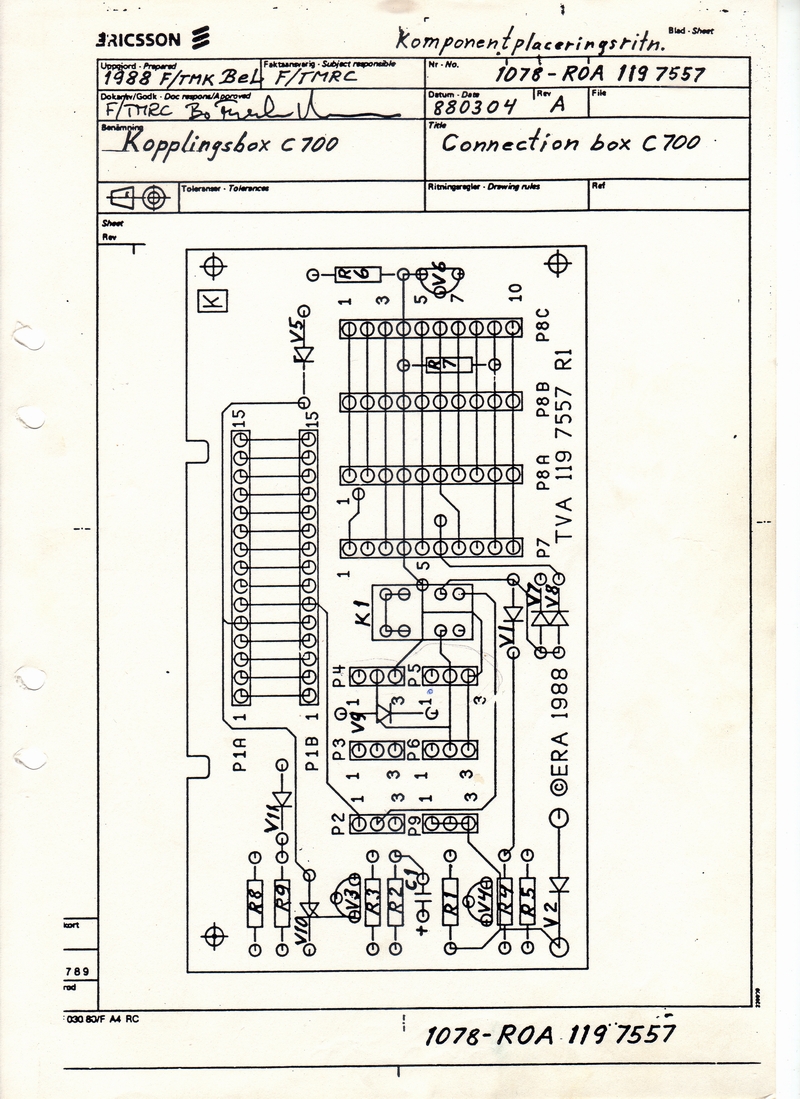

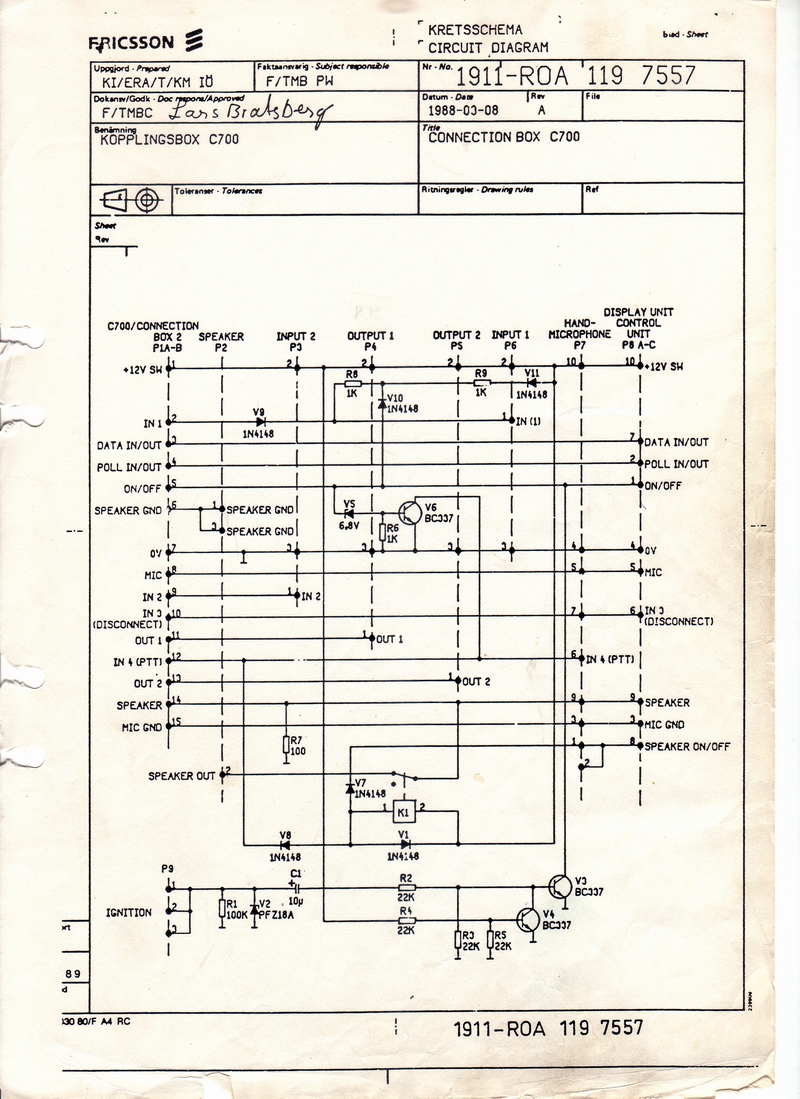

Connection Box
|
|
|
|
|
|
|
|
Ericsson
C700
Connection Box
|
|
|
|
|
|
|
|
Ericsson
C700
Connection Box
|
|
|
|
|
|
|
|
Ericsson

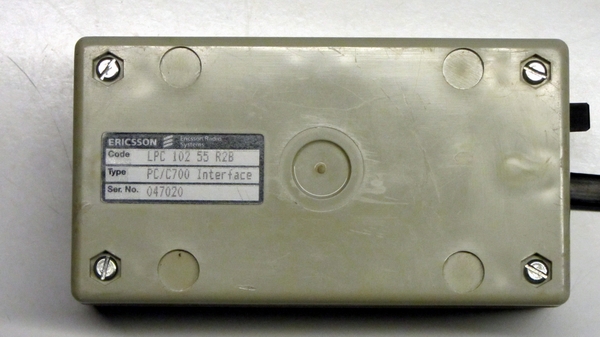

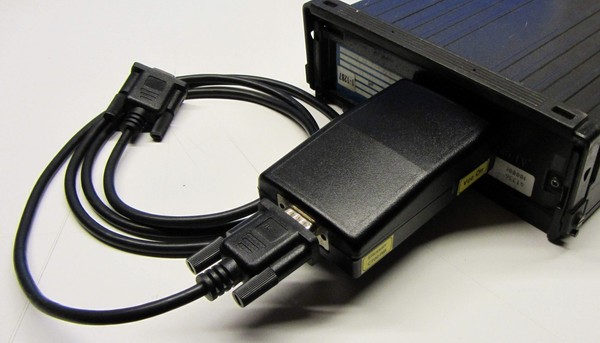

C700 Programming interface
Original
|
|
|
|
|
|
|
|
Ericsson
C700 Programming interface
Original
|
|
|
|
|
|
|
|
Ericsson
C700 Programming interface
Original

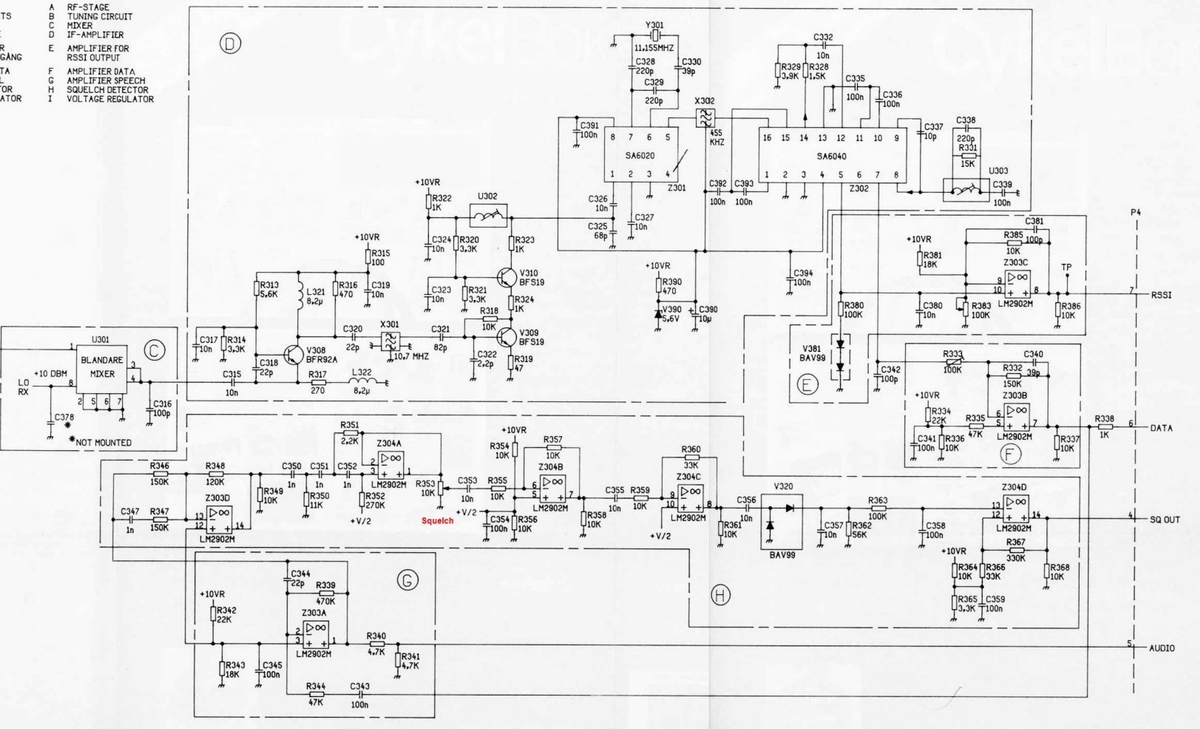

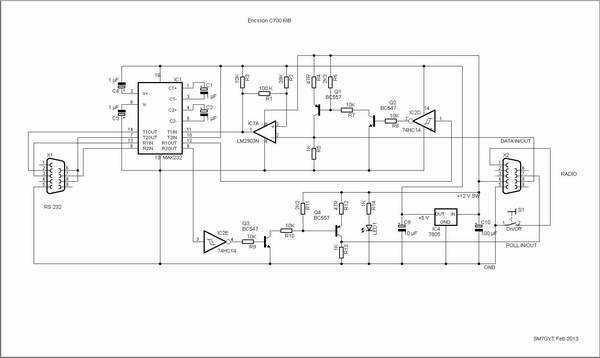

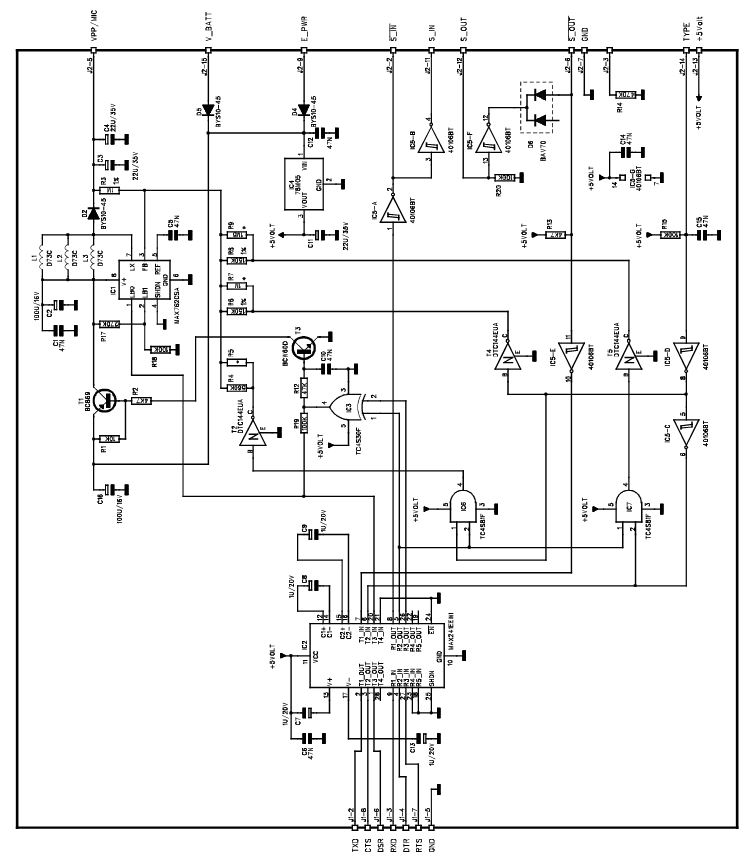

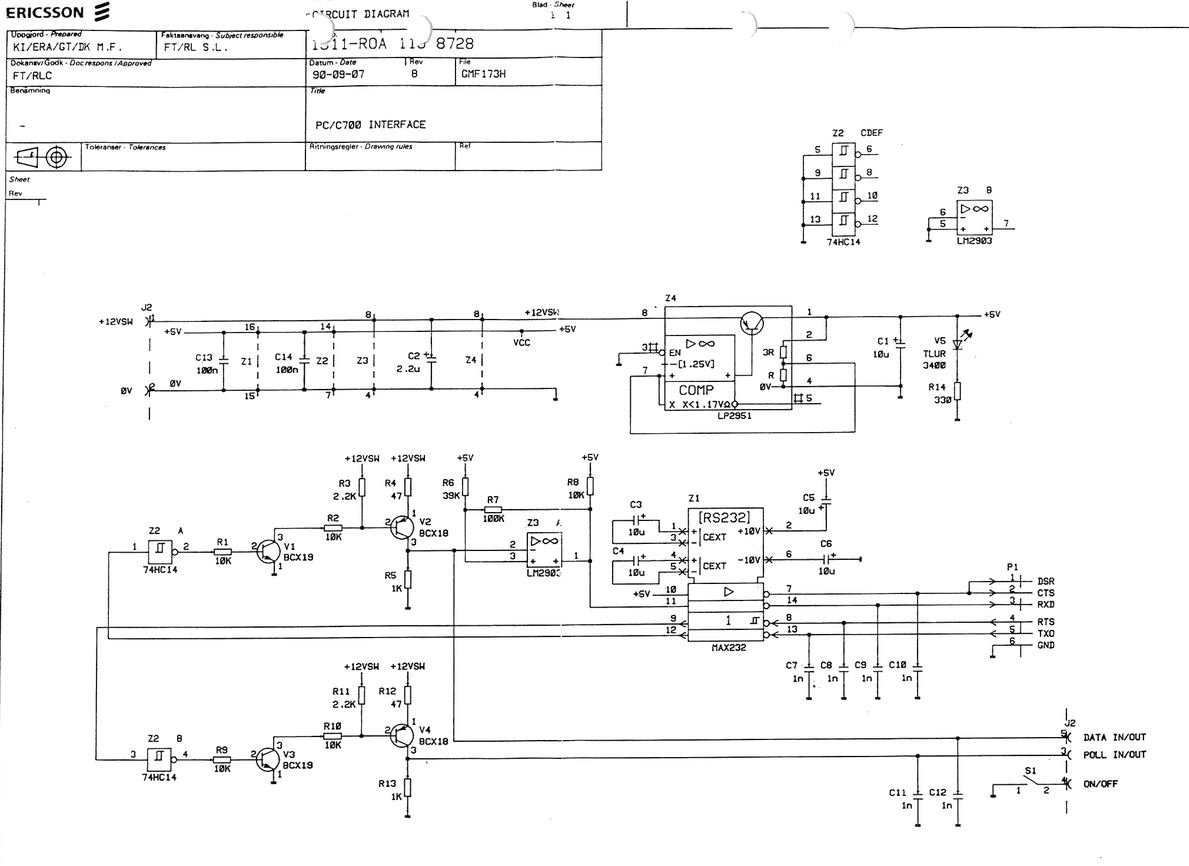

Circuit diagram
|
|
|
|
|
|
|
|
Ericsson
C700 Programming interface
Original

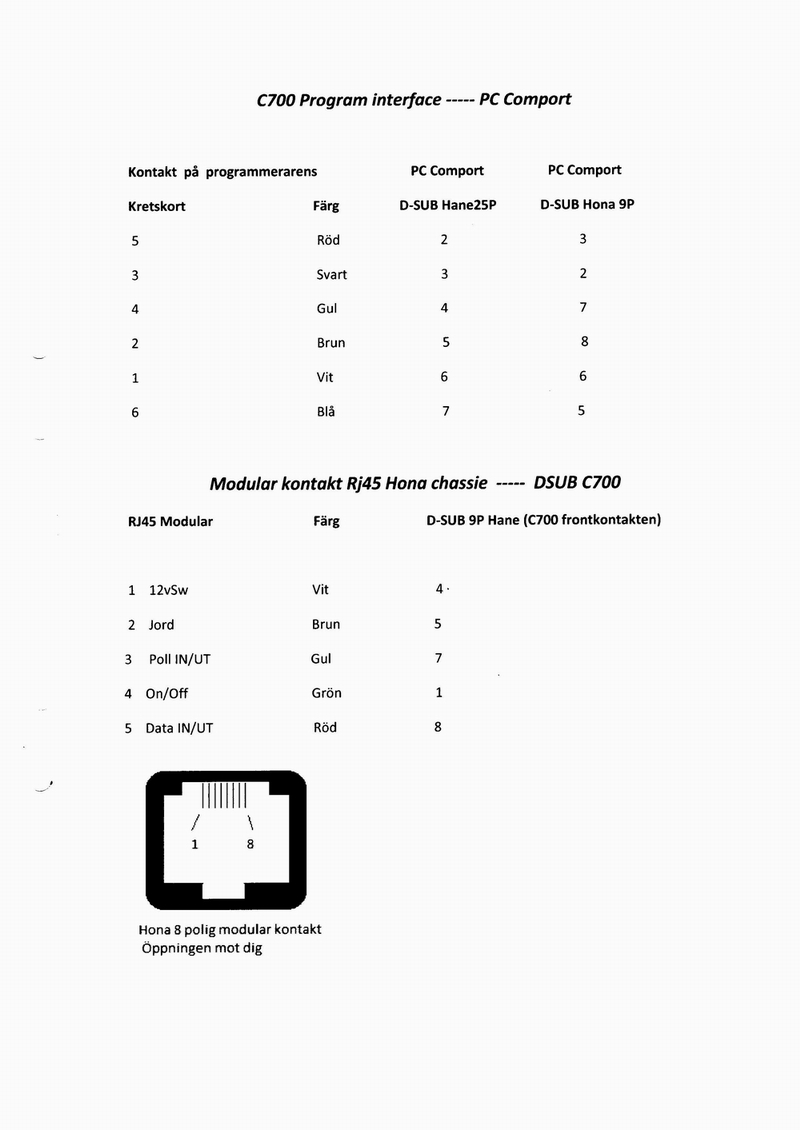

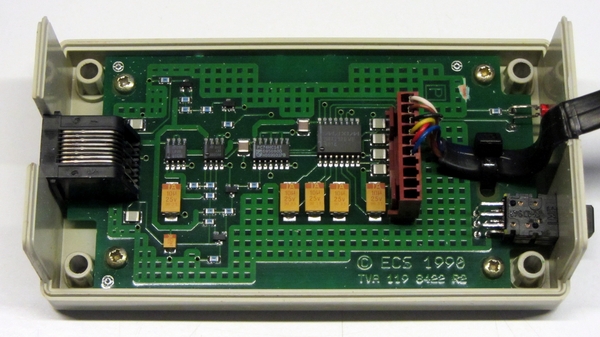

Connectors
|
|
|
|
|
|
|
|
Ericsson

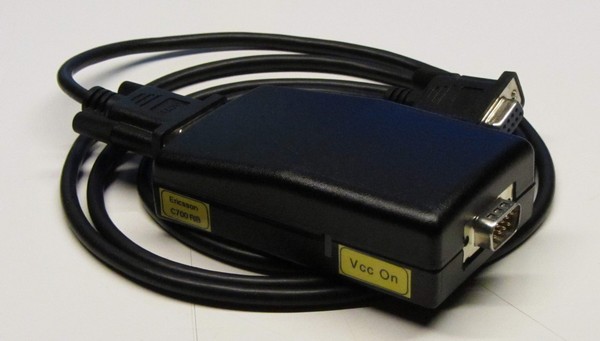

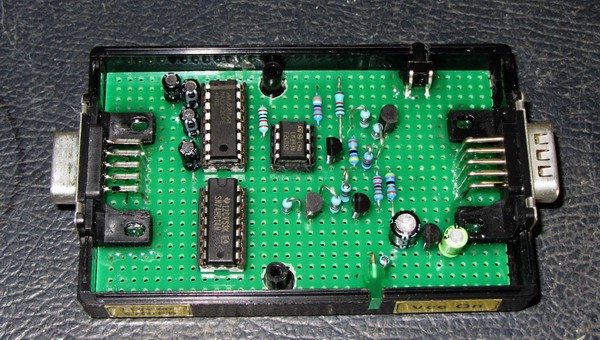

C700 Programming interface
Homebuilt
|
|
|
|
|
|
|
|
Ericsson
C700 Programming interface
Homebuilt
|
|
|
|
|
|
|
|
Ericsson
C700 Programming interface
Homebuilt
Due to unauthorized use, high resolution copy of the circuit diagram is not available from this site,
Please use the Ericsson original diagram.
|
| |
|
|
|
|
|
|
Ericsson
C700 Programming interface
Can be connected to the front panel or to the connection box
|
|
|
|
|
|
|
|
Ericsson

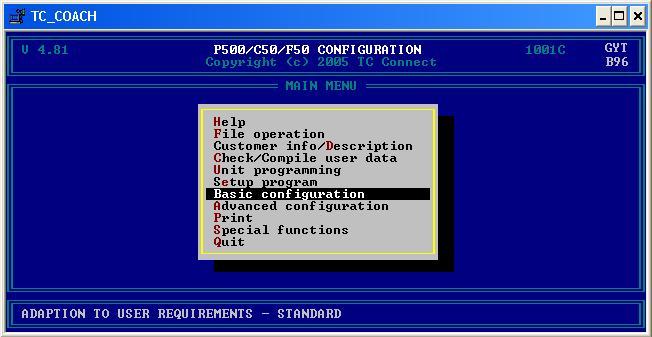

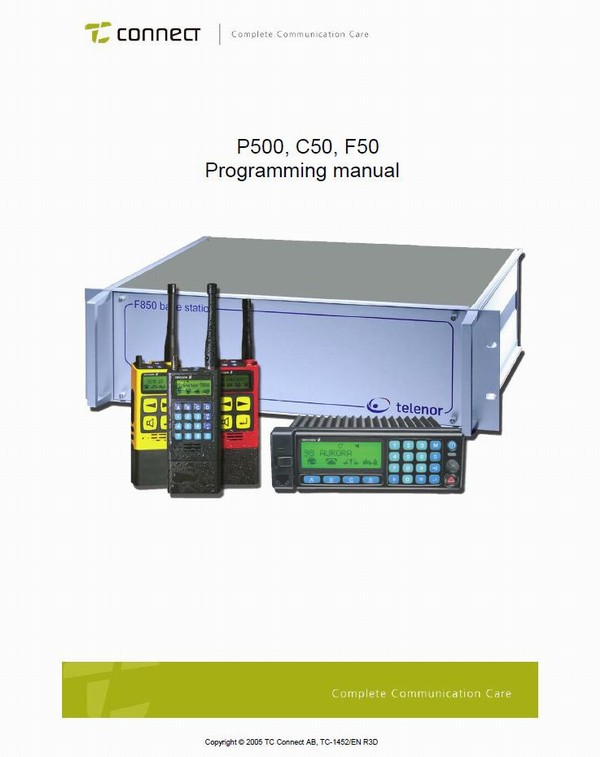

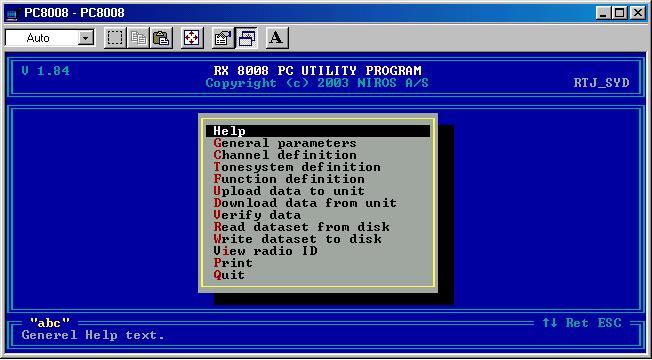

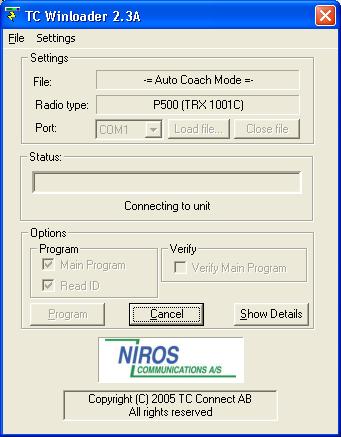

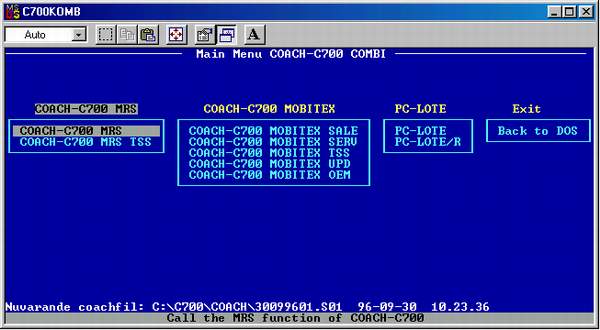

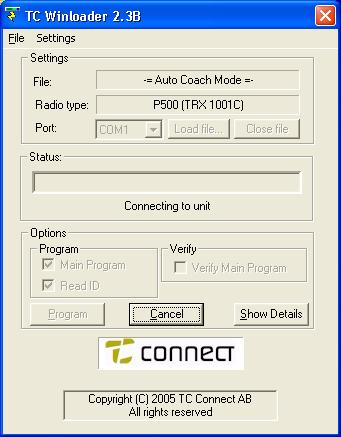

COACH-C700 MRS configuration program
Rev. P4E
Please don't ask for a copy of
the program, because I will not give you one. Also, I will not program your
Ericsson radio, for programming please contact an Ericsson dealer.
|
|
|
|
|
|
|
|

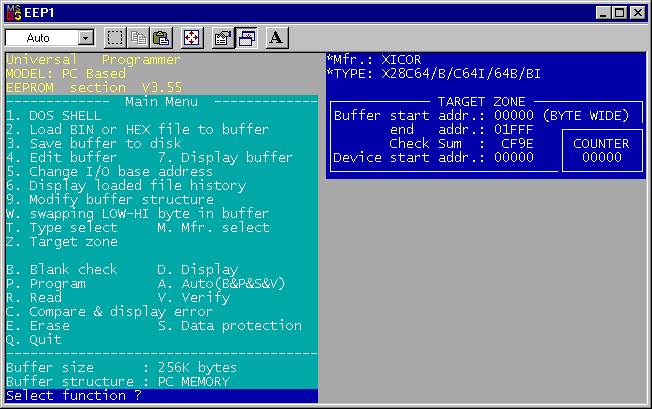

EEPROM Programmer ALL-03
Used for programming the XICOR X28C64 (Ericsson C700)
|
|
|
|
|
|
|
|
Ericsson
NORDEN 480
NMT Mobile Telephone
Removed from a passenger ship
|
|
|
|
|
|
|
|

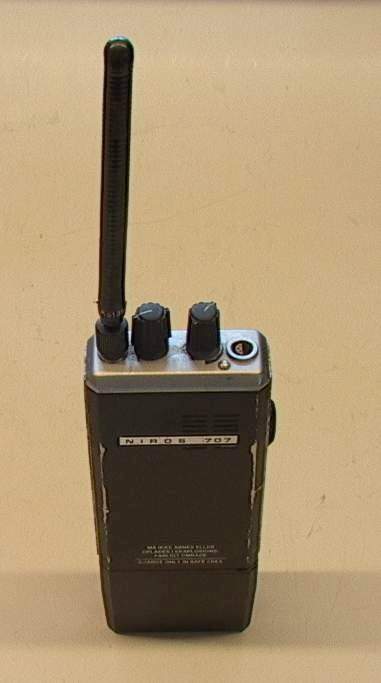

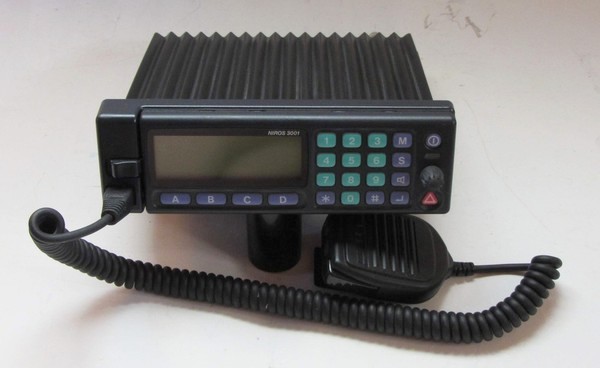

NIROS TRX 3001 VHF Midband
68 - 88 MHz
This radio is also sold branded as Ericsson Aurora C52
|
|
|
|
|
|
|
|

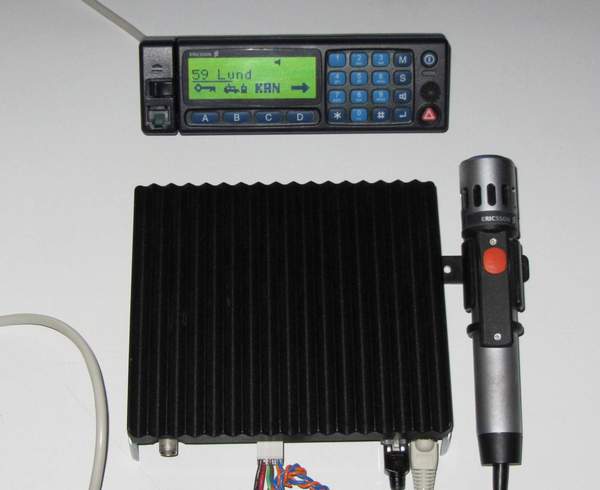

Ericsson C52 Aurora
68 - 88 MHz
Programmed for S70M
|
|
|
|
|
|
|
|
Ericsson C52 Aurora
68 - 88 MHz

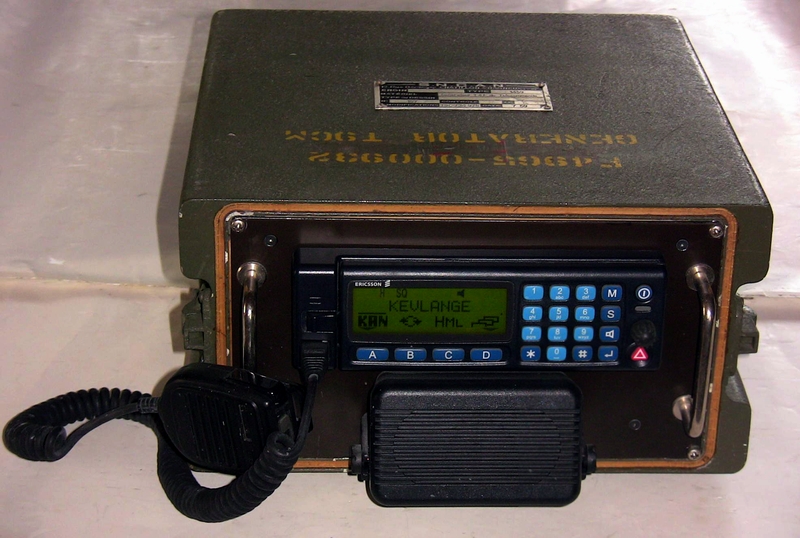

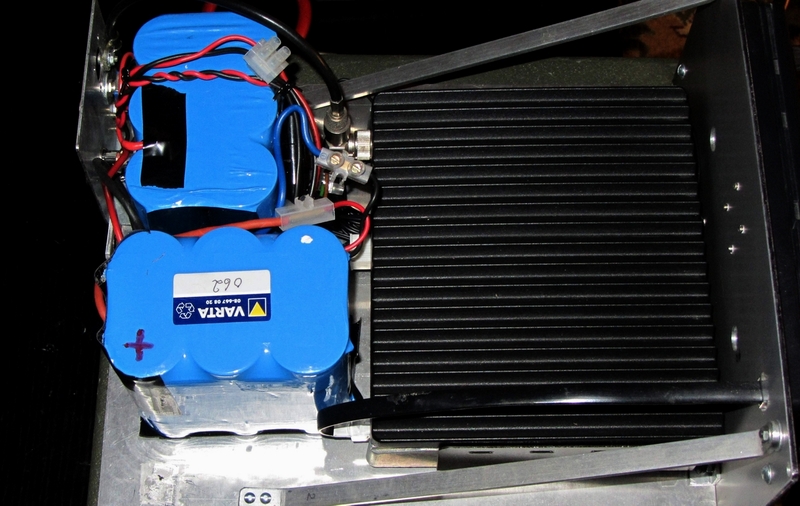

Military box
|
|
|
|
|
|
|
|
Ericsson C52 Aurora
68 - 88 MHz
Military box
5 Ah NiMh battery pack
|
|
|
|
|
|
|
|
Handset for Ericsson C50 Aurora
Used in the Swedish Police S80 UHF radio system
This radio system is replaced by RAKEL (Tetra)
|
|
|
|
|
|
|
|
C52 utrustad för att kunna köra både 12.5 kHz och 25 kHz kanalbredd.
Det betyder att radion är bestyckad både med dubbla kristallfilter och dubbla keramiska filter.
Vid programmering väljer man alternativet som kallas "Mix".
|
|
|
|
|
|
|
|

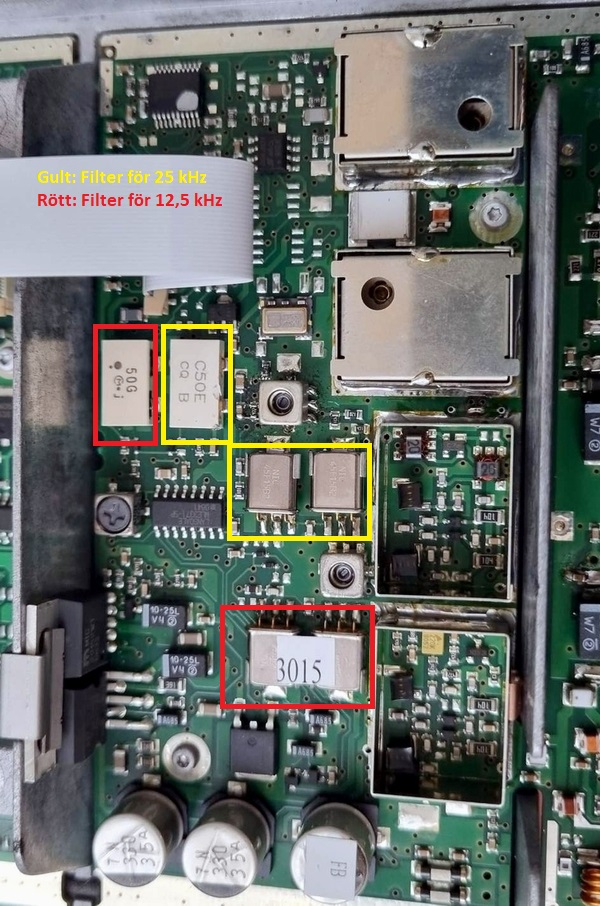

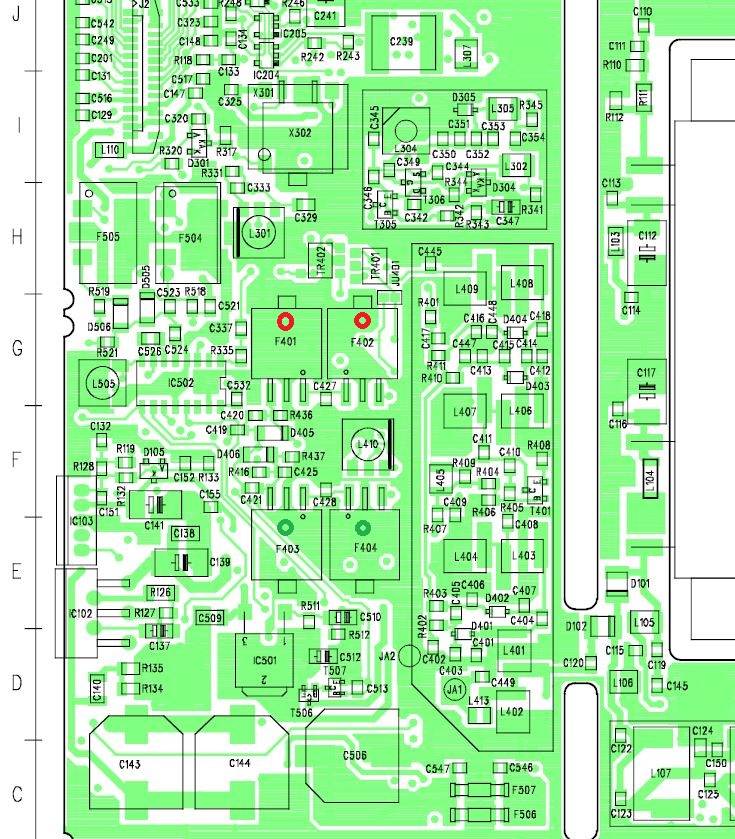

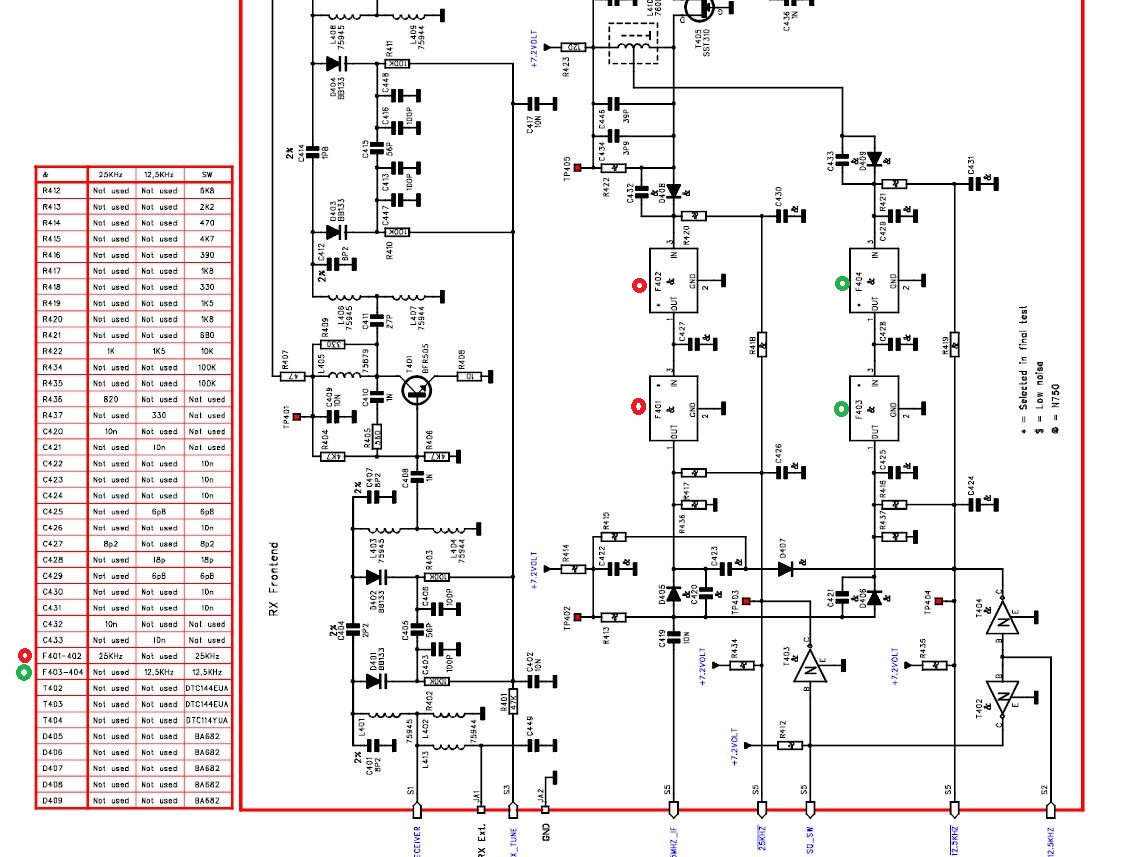

Komponentplacering av dubbla kristallfilter.
Färgmärkningen hänvisar till ovanstående schema.
De keramiska filtren heter F504 och F505.
|
|
|
|
|
|
|
|

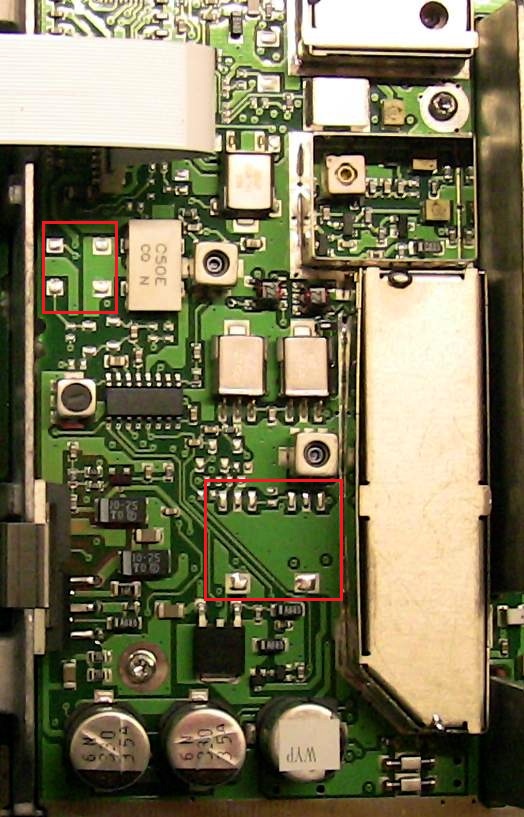

Kristallfiltren och de keramiska filtren ska sitta inom de röda ramarna
om radion är konfigurerad för att köra både 12.5 kHz och 25 kHz.
Radion på foto är endast klar för att köra 25 kHz kanalbredd.
Mix-varianten är mycket sällsynt.
Det går att programmera radion med t ex de "smala" frekvenserna på 69 MHz-bandet,
även om radion bara är bestyckad för att köra 25 kHz kanalbredd, men det betyder
att den inte är formellt godkänd, och kommer att fungera mycket dåligt på dessa
frekvenser med splatter och överhörning mellan kanalerna.
|
|
|
|
|
|
|
|
Kristallfiltren och de keramiska filtren ska sitta inom de gula och röda ramarna
om radion är konfigurerad för att köra både 12.5 kHz och 25 kHz.
Radion på foto är klar för att köra 12.5 kHz och 25 kHz kanalbredd.
Mix-varianten är mycket sällsynt.
Det går att programmera radion med t ex de "smala" frekvenserna på 69 MHz-bandet,
även om radion bara är bestyckad för att köra 25 kHz kanalbredd, men det betyder
att den inte är formellt godkänd, och kommer att fungera mycket dåligt på dessa
frekvenser med splatter och överhörning mellan kanalerna.
|
|
|
|
|
|
|
|

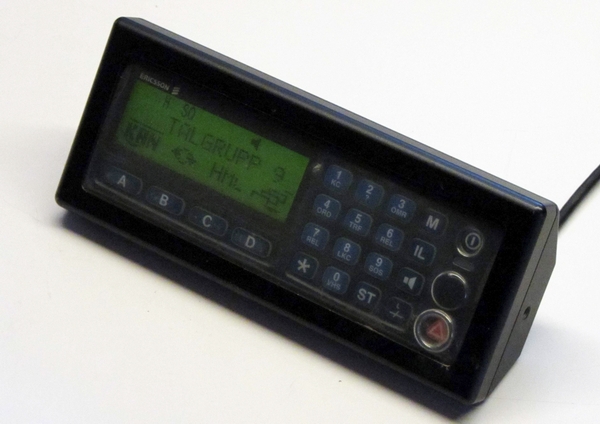

Ericsson C50 Aurora
Front panel, special made cover for the Swedish police MC
|
|
|
|
|
|
|
|

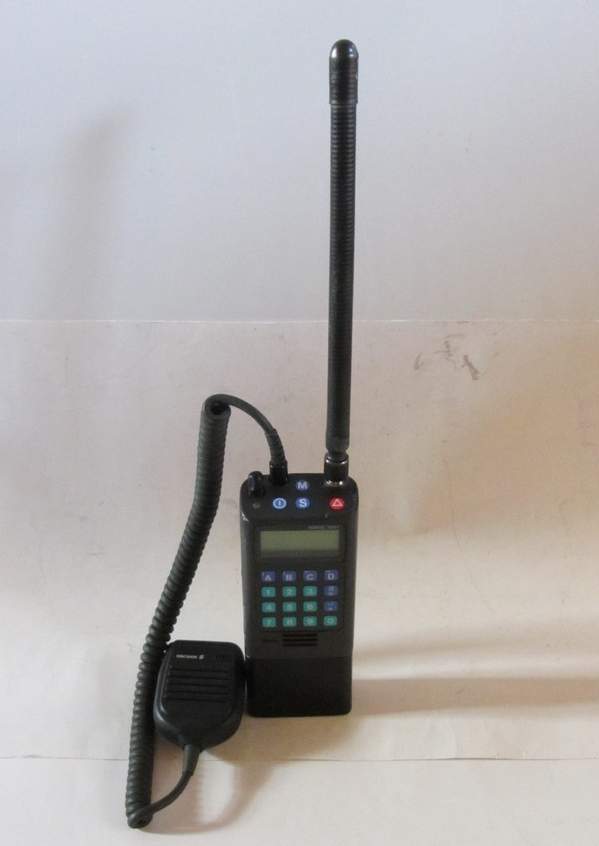

NIROS TRX 1001 UHF
Programmed for 70 cm Amateur band
|
|
|
|
|
|
|
|
NIROS TRX 1001 VHF Midband
68 - 88 MHz
|
|
|
|
|
|
|
|

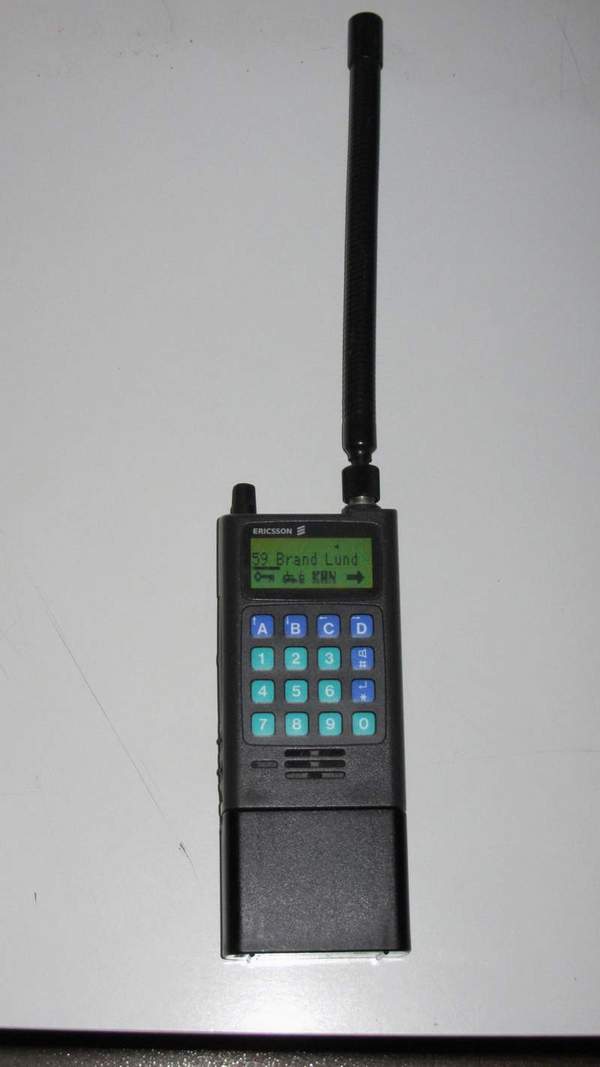

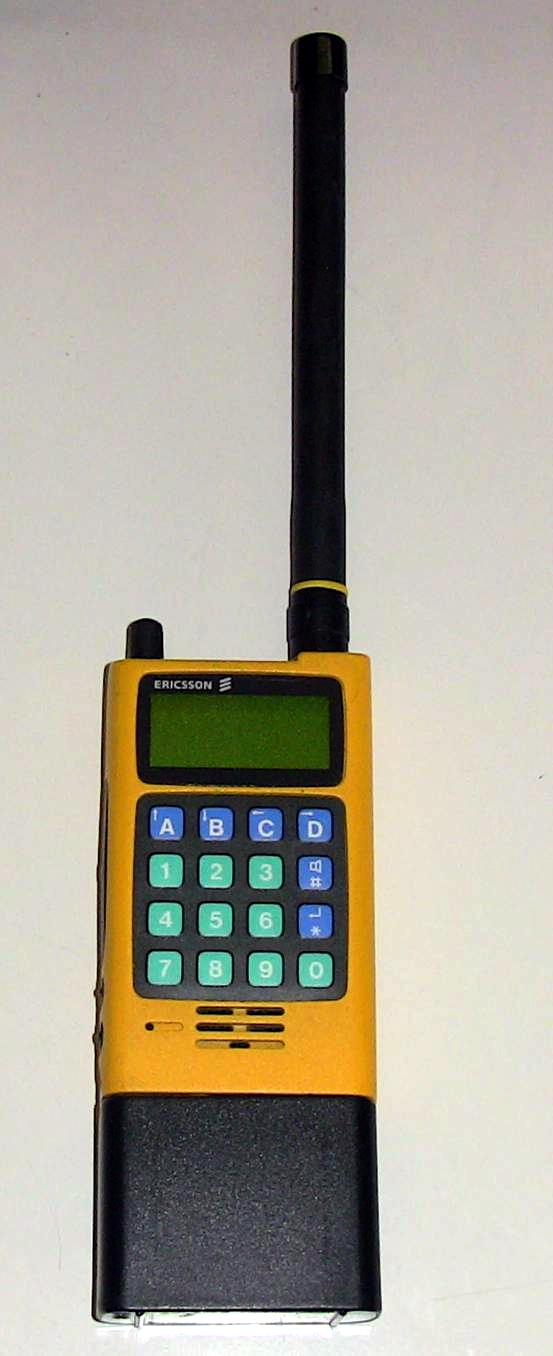

Ericsson P502
68 - 88 MHz
Programmed for S70M
|
|
|
|
|
|
|
|
Ericsson P502
68 - 88 MHz
|
|
|
|
|
|
|
|

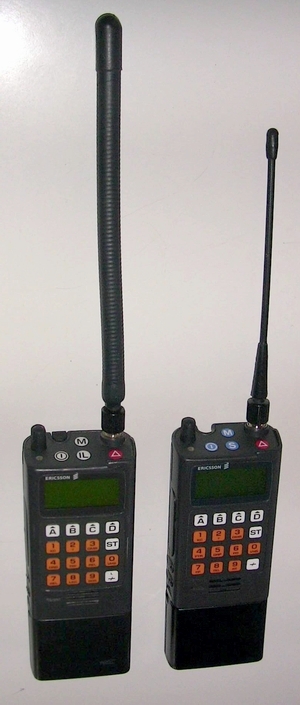

Ericsson P502/RPS and P505/RPS
Police radio, system S70M and S80
|
|
|
|
|
|
|
|

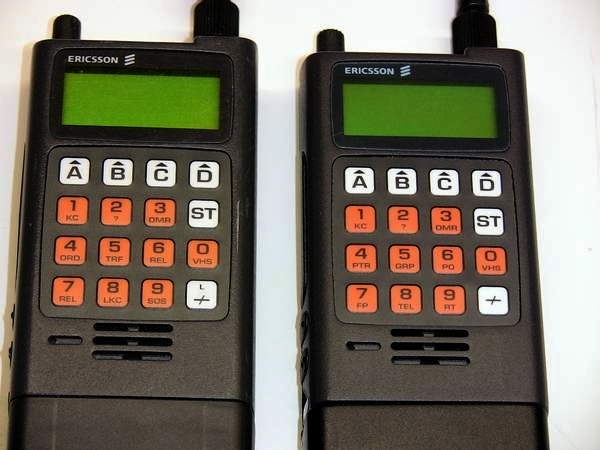

Ericsson P502/RPS and P505/RPS
Police radio, system S70M and S80
Different text on the keyboard
|
|
|
|
|
|
|
|

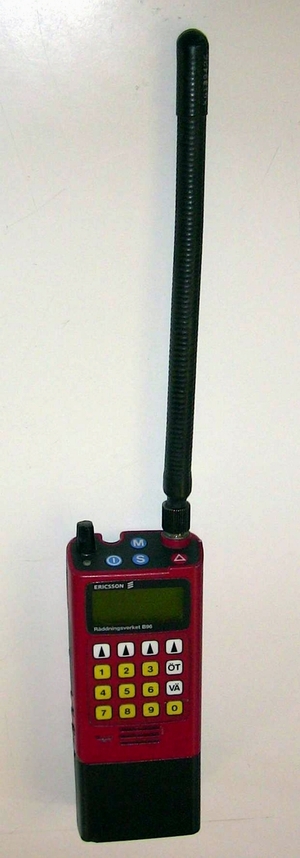

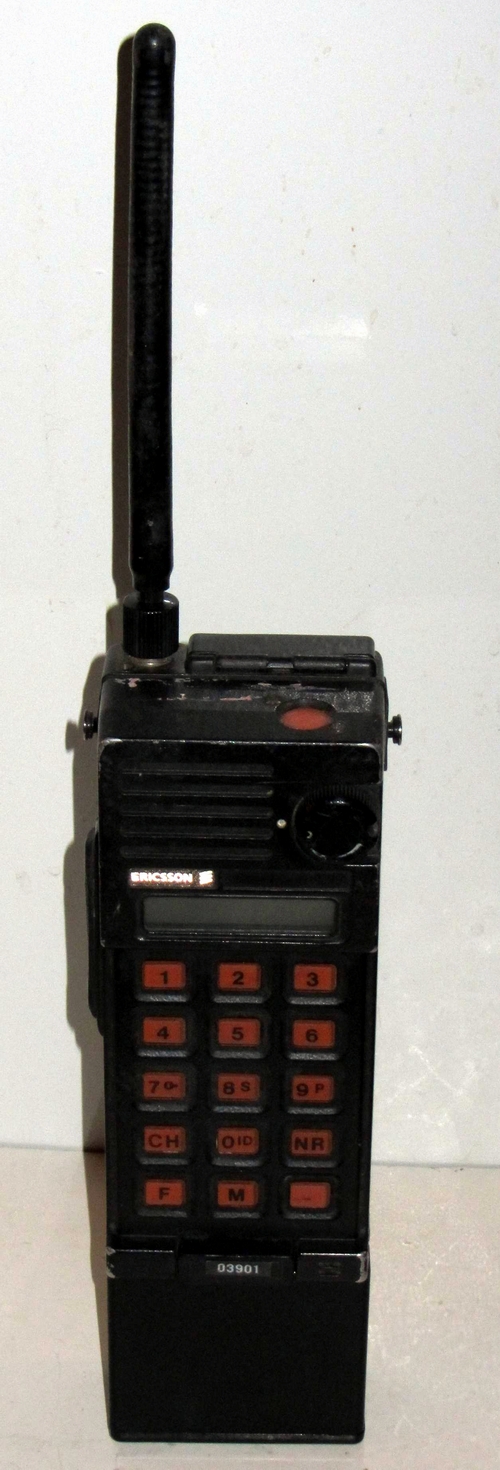

Ericsson B96 VHF Midband
68 - 88 MHz
This model was used by the Swedish Civil Defence
|
|
|
|
|
|
|
|
Ericsson B96 VHF Midband
68 - 88 MHz, 16-Key
This model was used by the Swedish Civil Defence
|
|
|
|
|
|
|
|

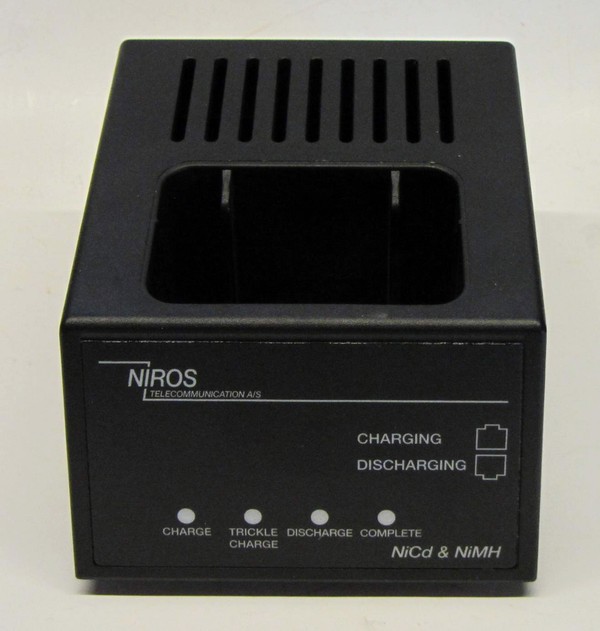

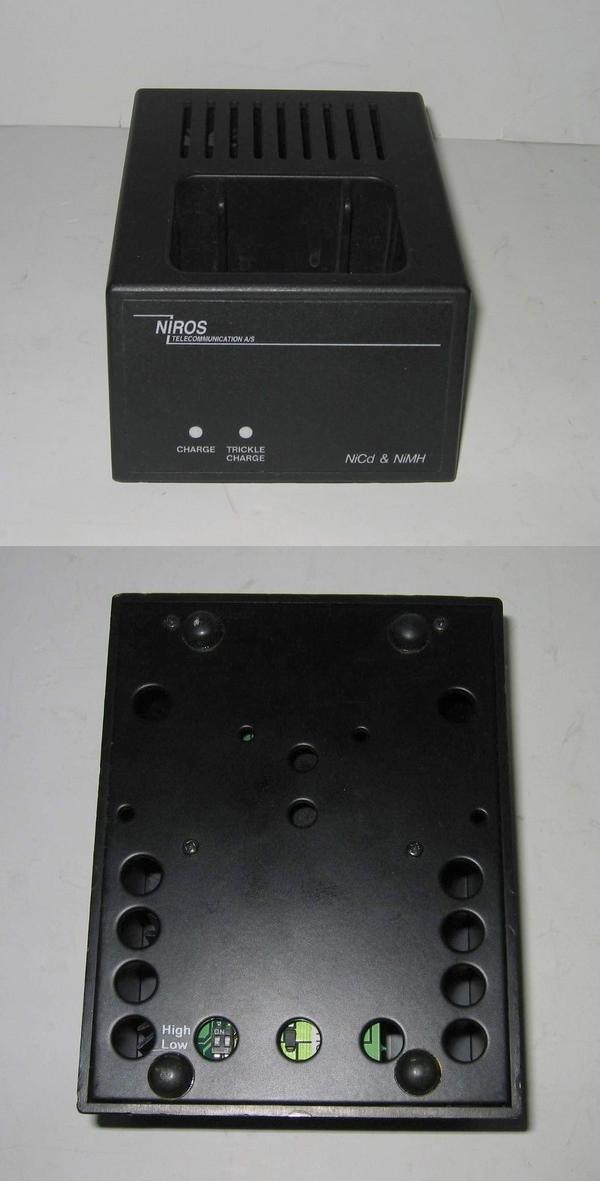

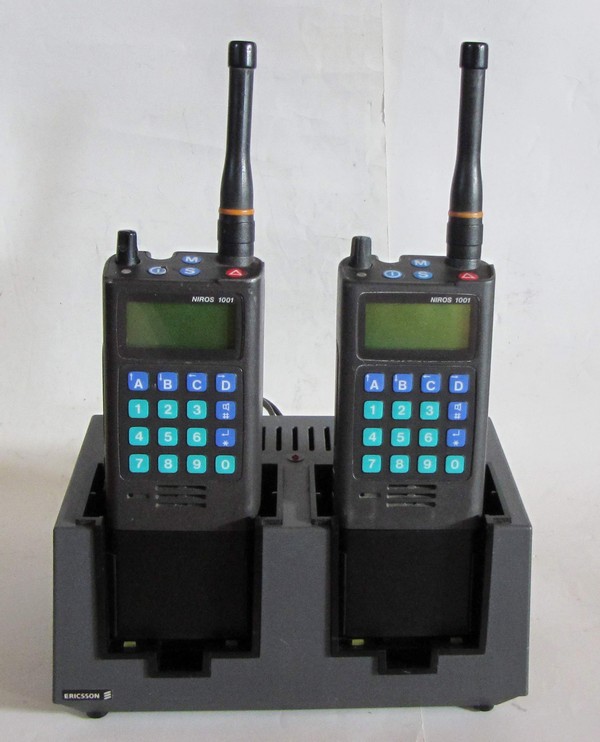

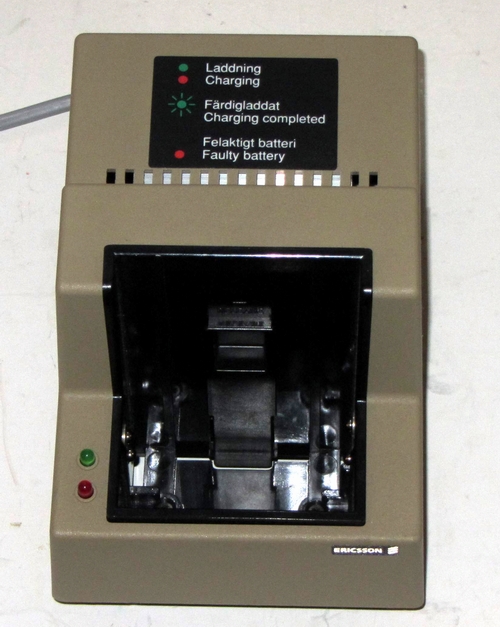

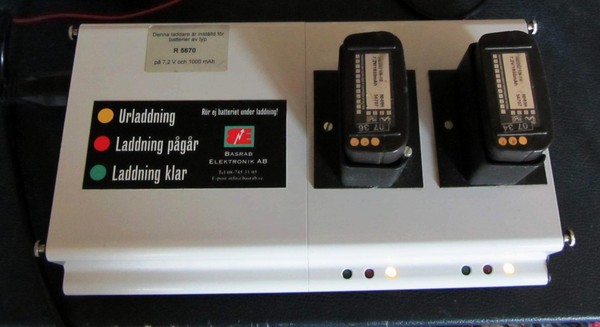

Charger for Ericsson B96
Used by the Swedish Civil Defence
|
|
|
|
|
|
|
|

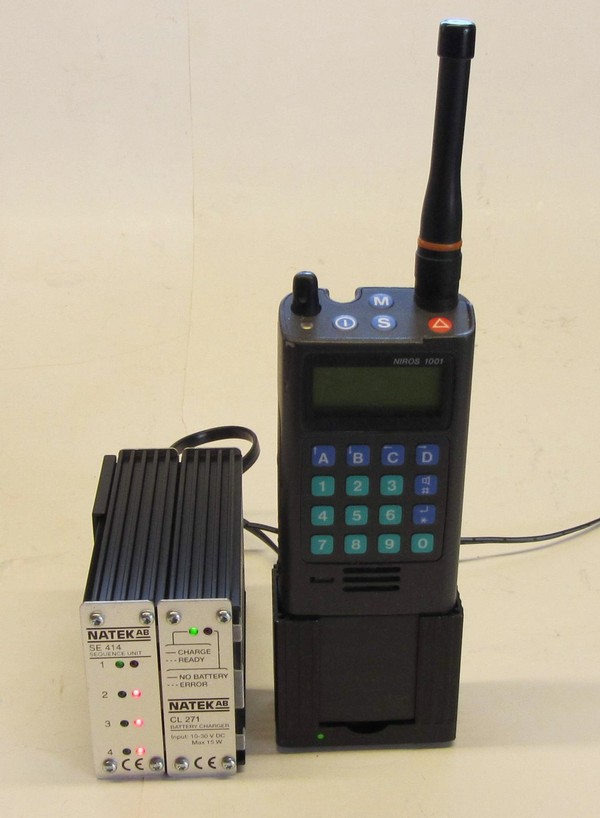

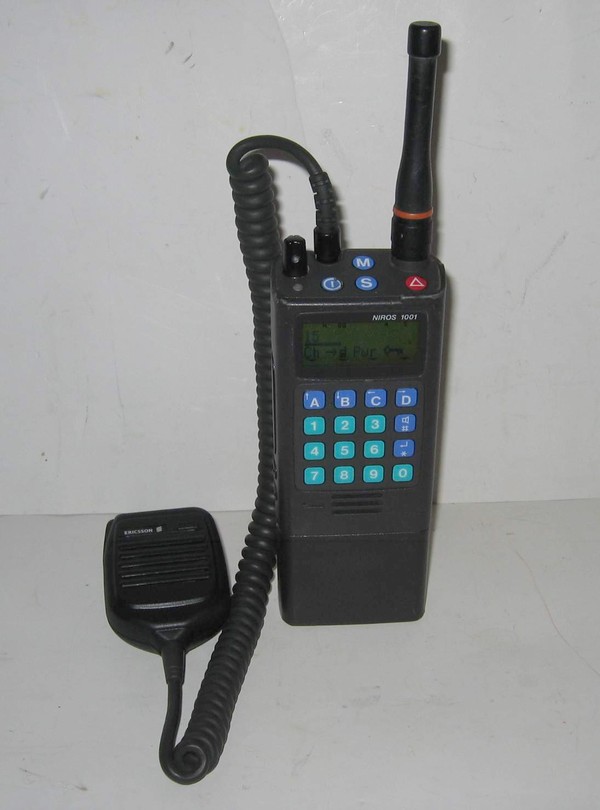

NIROS TRX 1001

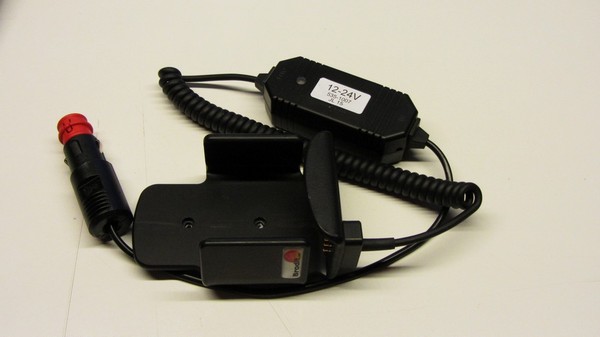

Brodit holder/charger
|
|
|
|
|
|
|
|

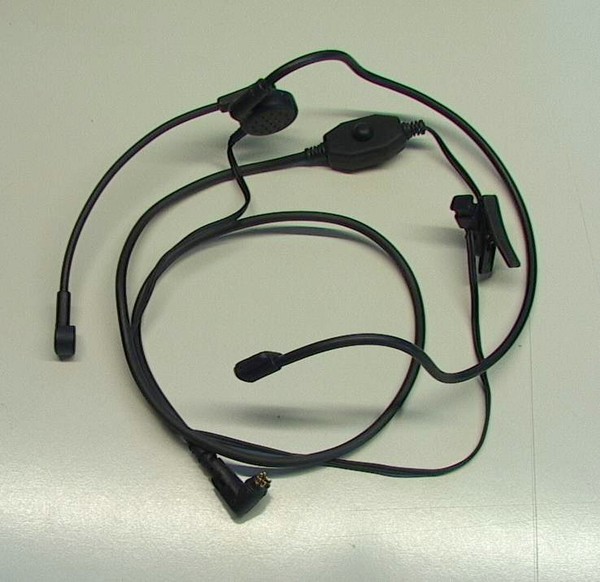

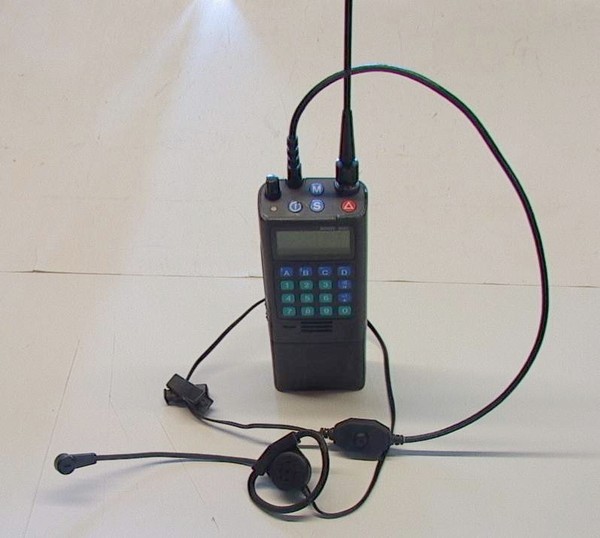

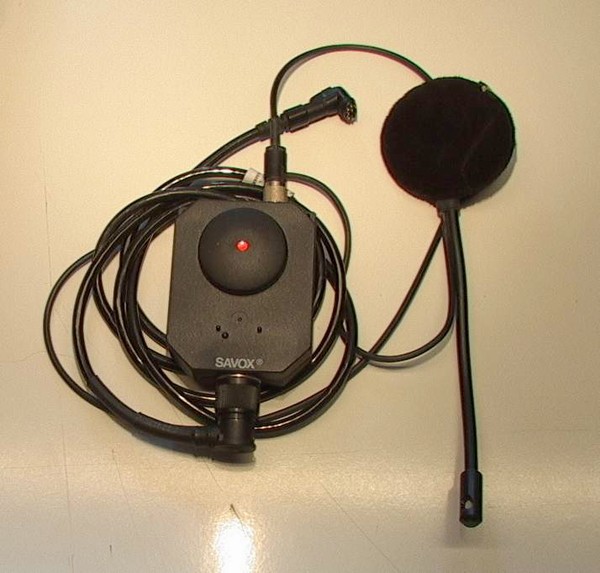

SAVOX Helmet Headset
Used by Police and Fire
Connector for NIROS/Ericsson
|
|
|
|
|
|
|
|
Tactical Headset
Used by Police and Fire
Connector for NIROS/Ericsson
|
|
|
|
|
|
|
|
Tactical Headset
Used by Police and Fire
Connector for NIROS/Ericsson
|
|
|
|
|
|
|
|
NIROS TRX 1001 UHF

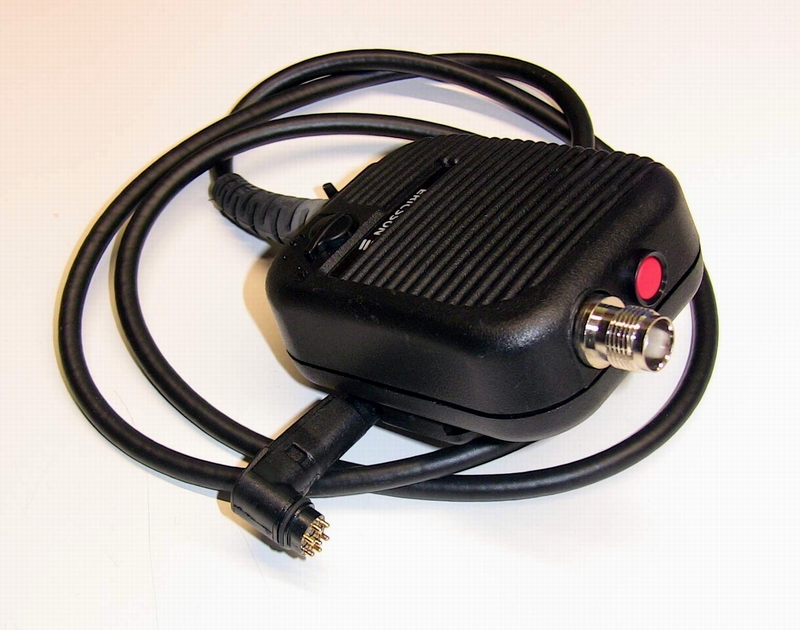

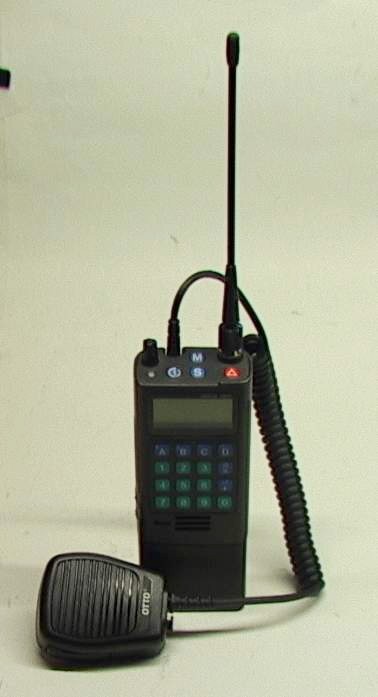

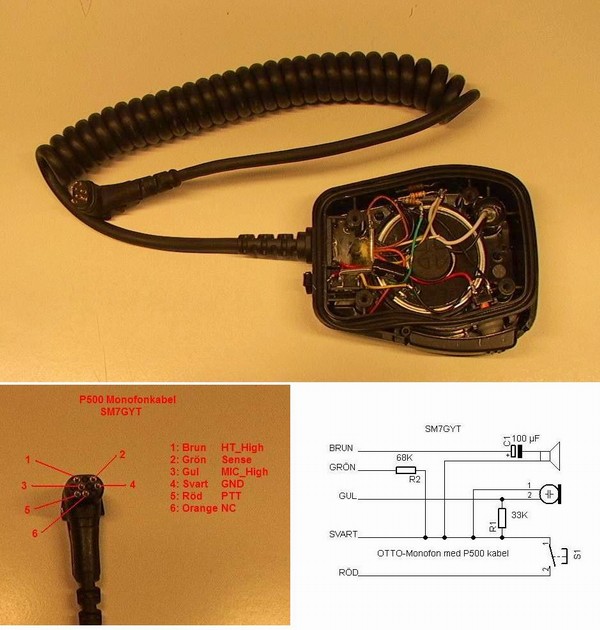

OTTO
Monophone
|
|
|
|
|
|
|
|
Ericsson Public safety monophone

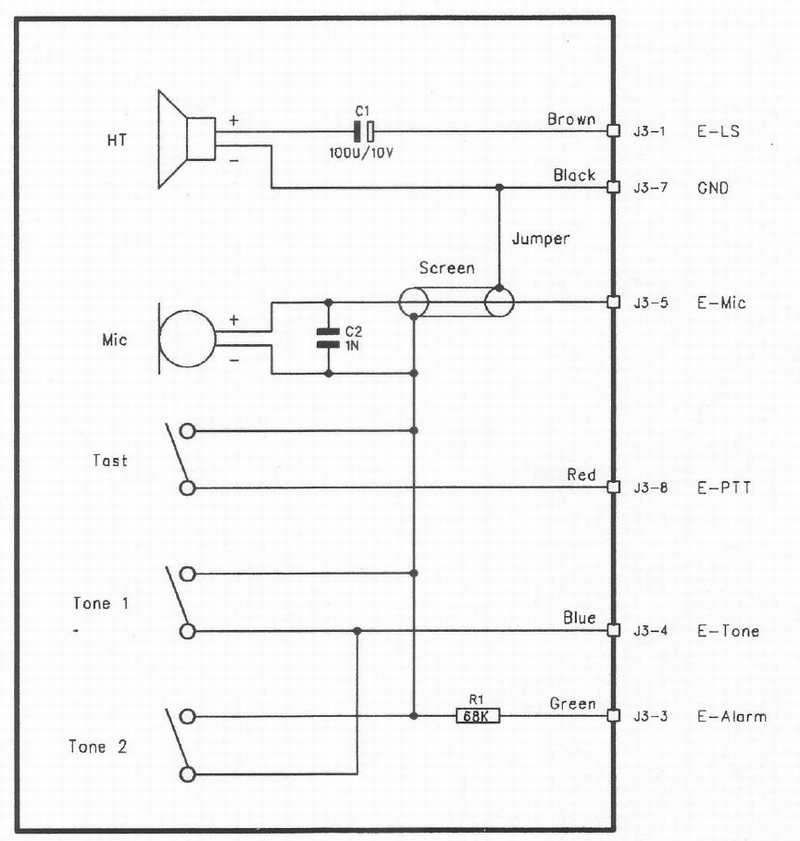

For NIROS/Ericsson P500
|
|
|
|
|
|
|
|

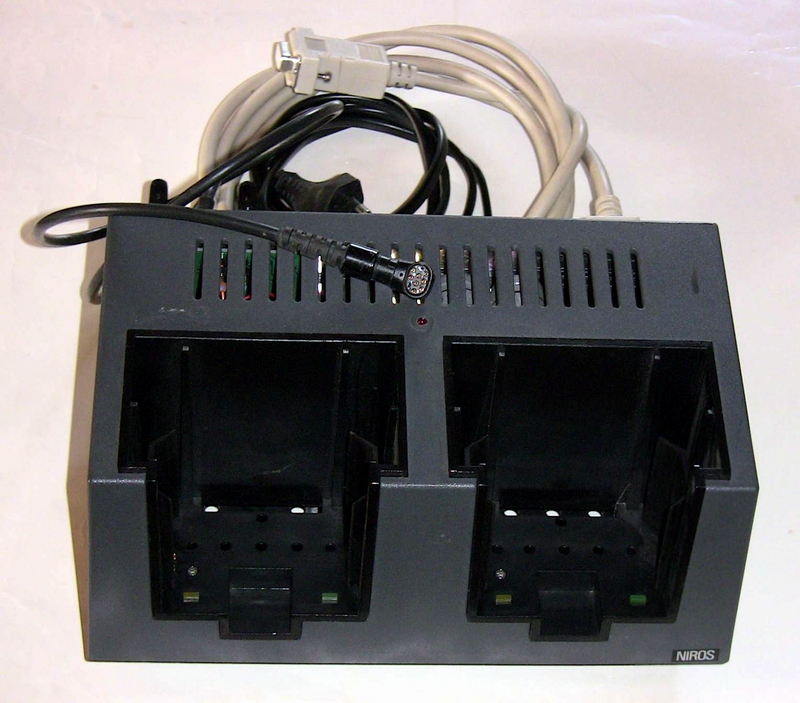

NIROS/Ericsson P500/C50
Programming
Interface
Original
|
|
|
|
|
|
|
|

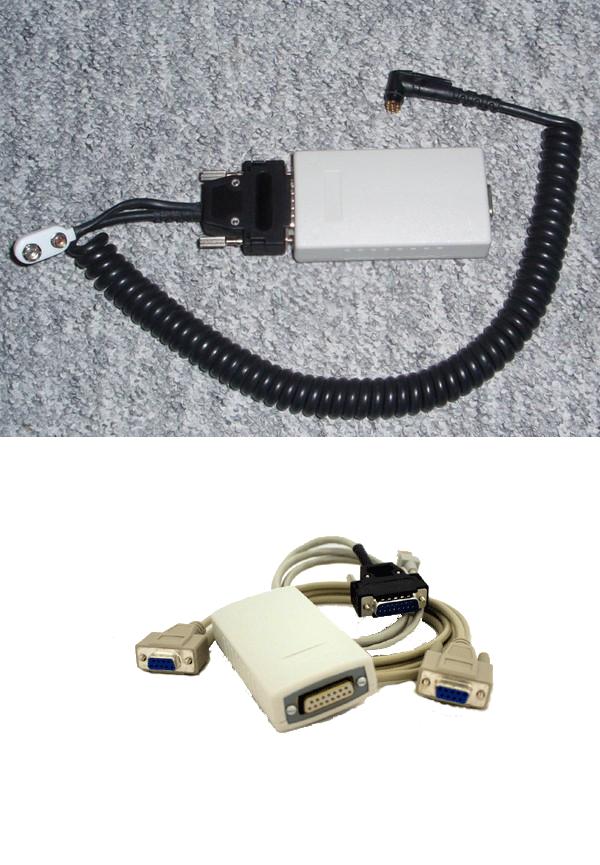

NIROS/Ericsson P500/C50
Programming
Interface
Original
|
|
|
|
|
|
|
|
NIROS/Ericsson P500/C50
Programming
Interface
Original
|
|
|
|
|
|
|
|

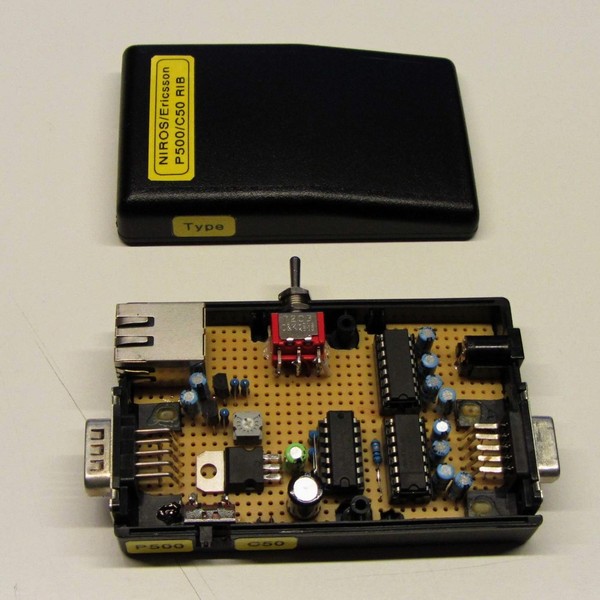

NIROS/Ericsson P500/C50
Programming
Interface

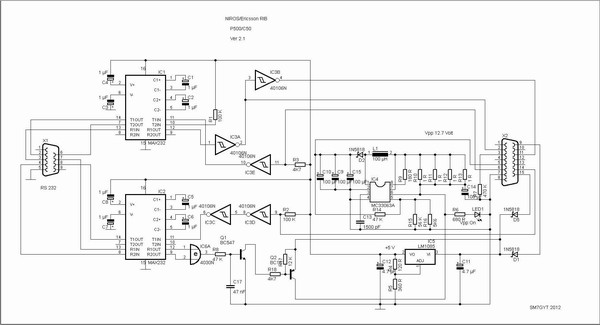

Homebuilt Ver 2.1
No need for externe power supply, makes 5 VDC and Vpp from 7.2 VDC,
supplied by
the radio.
Vpp is automatically switched ON/OFF by the program.
|
|
|
|
|
|
|
|

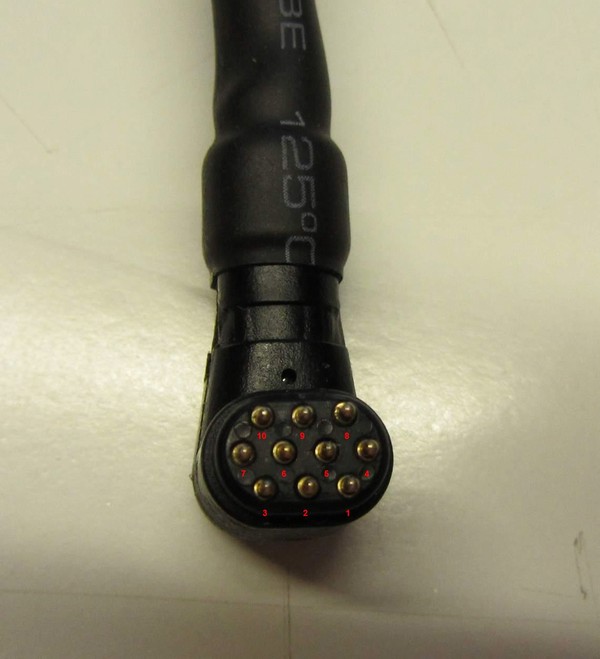

NIROS/Ericsson P500
Connector
|
|
|
|
|
|
|
|
NIROS/Ericsson P500
Connector
|
|
|
|
|
|
|
|

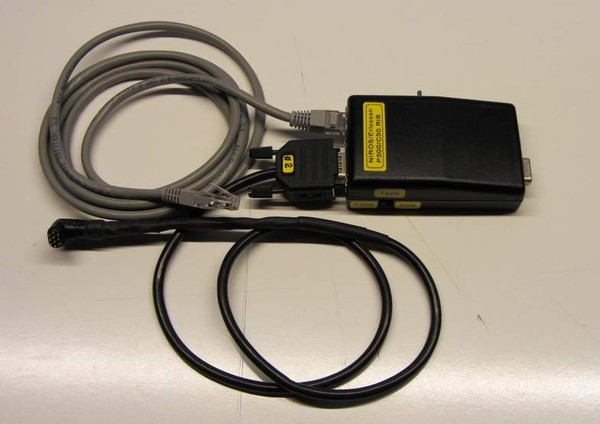

NIROS/Ericsson P500/C50
Programming
Interface

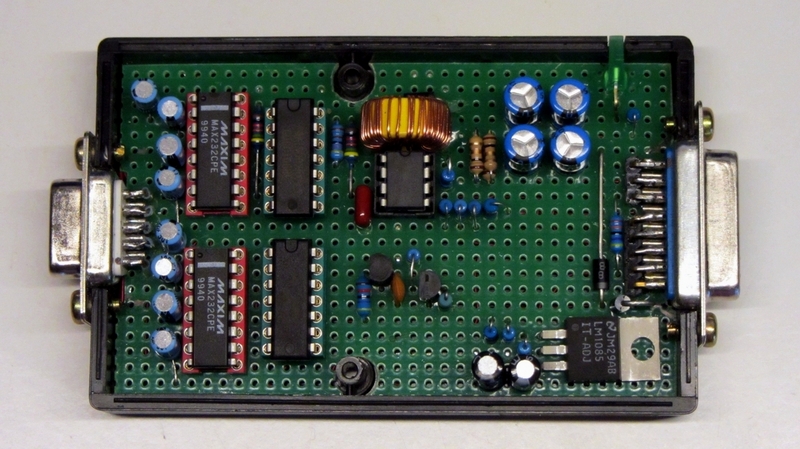

Homebuilt Ver 2.1
No need for externe power supply, makes 5 VDC and Vpp from 7.2 VDC,
supplied by
the radio.
Vpp is automatically switched ON/OFF by the program.

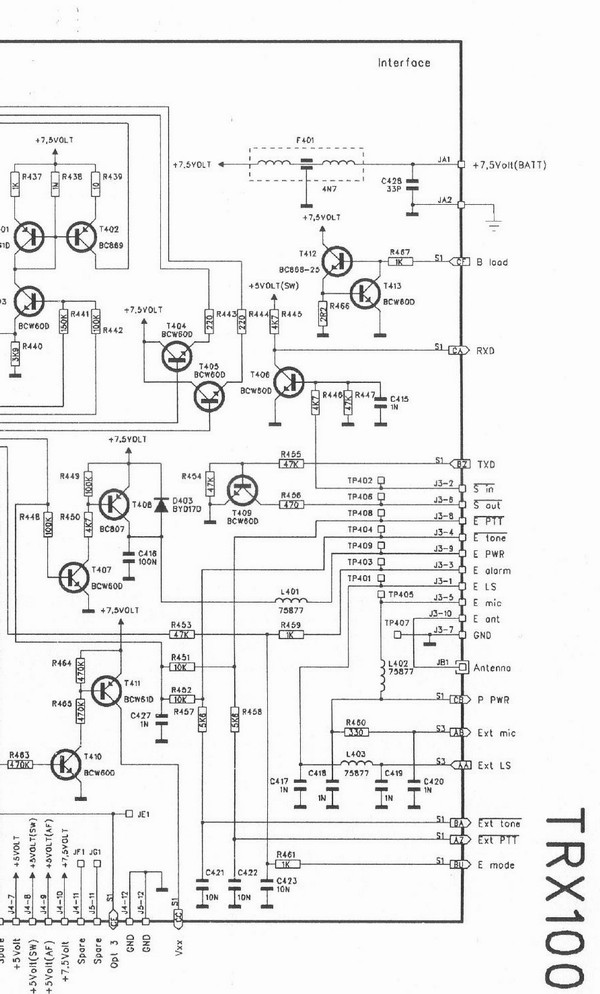

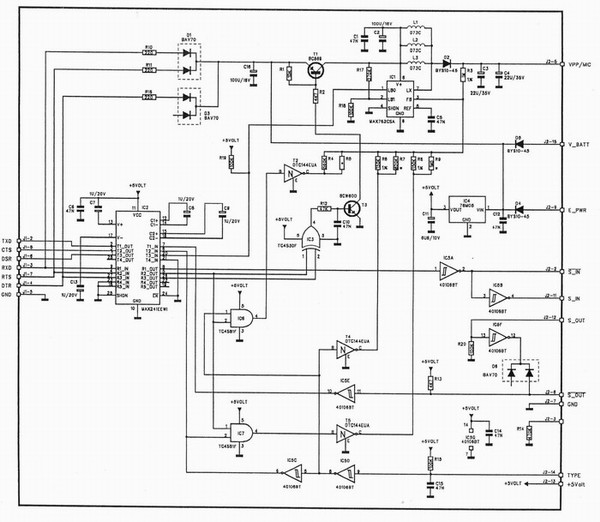

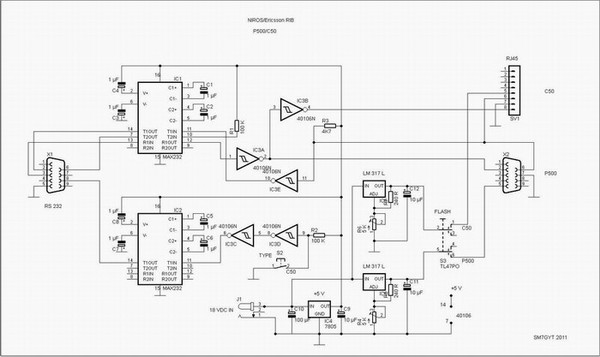

Due to unauthorized use, high resolution copy of the circuit diagram is not available from this site,
Please use the Ericsson original diagram.
|
|
|
|
|
|
|
|

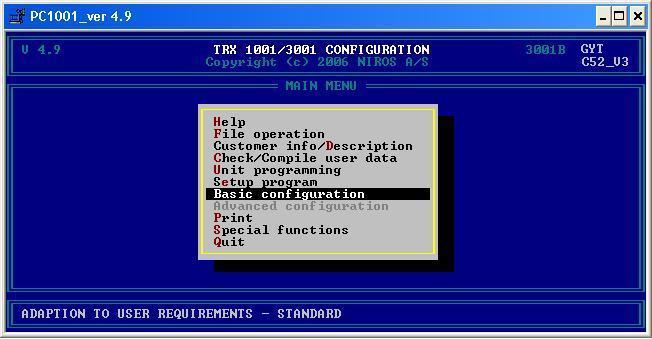

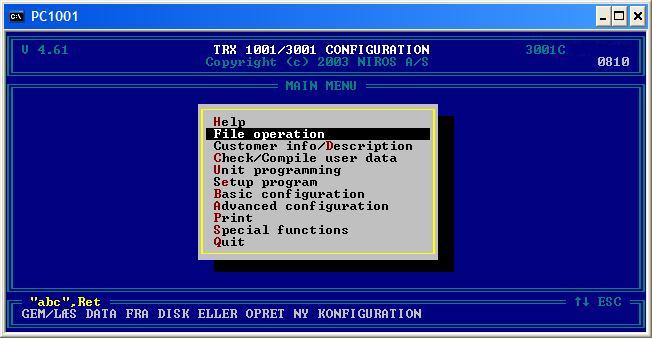

NIROS TRX1001/3001
PC1001
Configuration program V 4.9
|
|
|
|
|
|
|
|
TC Winloader 2.3A
This is used when running the configuration program in Windows XP
|
TC Winloader can not be
used to program the NIROS TRX3001 through
the control unit (the front), the connection must be done directly to
the
contact on the radio’s rear (JS1) or by using the special Service
control
unit.
|
|
|
|
|
|
|

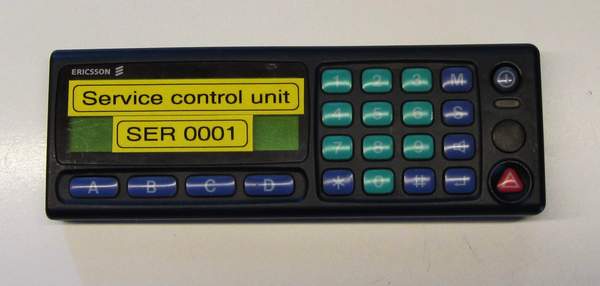

Service control unit
(Modified standard control unit)
|
|
|
|
|
|
|
|
|
Ericsson P500/C50/F50
TC
Coach Configuration program V 4.81
|
|
|
|
|
|
|
|
TC Winloader 2.3B
This is used when running the configuration program in Windows XP
|
TC Winloader can not be
used to program the Aurora C50 through the
control unit (the front), the connection must be done directly to the
contact on the radio’s rear (JS1) or by using the special Service
control
unit.
|
|
|
|
|
|
|
TC Coach Programming Manual
|
| |
|
|
|
|
|
|
NIROS TRX 1012
PC

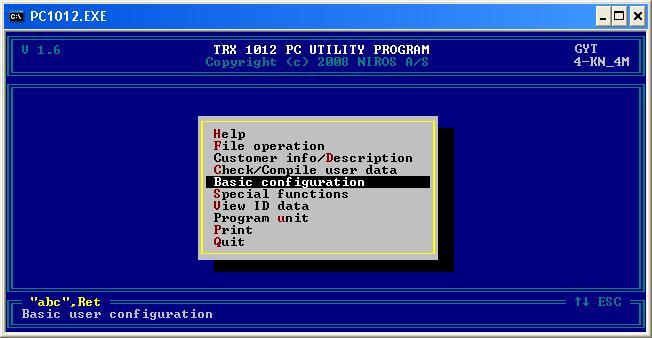

Utility program V 1.6
|
|
|
|
|
|
|
|
Ericsson Monophone
Modification for better sound quality;
disassemble the unit, and drill a 0.6 mm hole in the center of the electret mic holder. This
mod gives a better sensitivity of the mic, and a clearer audio. As original, the mic element is only
connected via a narrow "channel" ending up in the speaker area. NOTE, this mod
results in a derated moist resistance!
|
|
|
|
|
|
|
|
NIROS Charger
The High/Low setting is for Trickle charge, Low=20 mA and High=60 mA
|
|
|
|
|
|
|
|
NIROS Charger / Discharger
|
|
|
|
|
|
|
|
Ericsson Charger CH 90
For P500
|
|
|
|
|
|
|
|

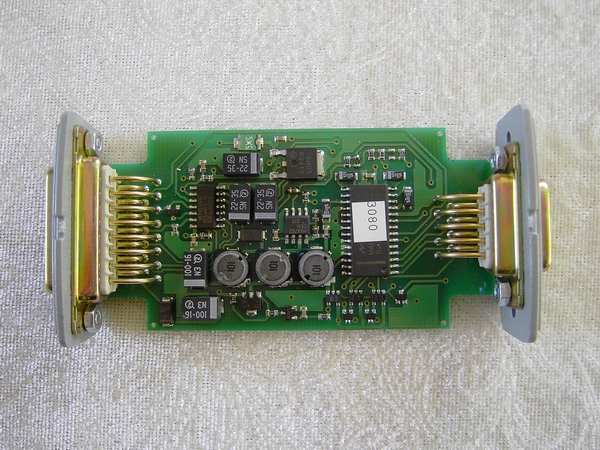

Niros Charger CH 90 with RIB
For P500
|
|
|
|
|
|
|
|
NATEK CL 271 with Sequence unit SE 414
NIROS/Ericsson P500 Charger
|
|
|
|
|
|
|
|
BASRAB
NIROS/Ericsson P500 Charger
|
|
|
|
|
|
|
|

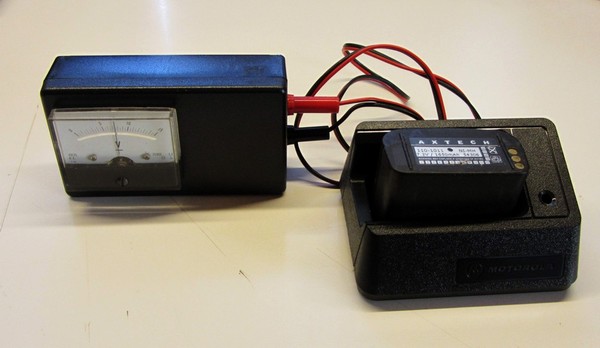

Battery Tester
For NIROS/Ericsson P500 Battery
Internal load 0.6 Amp.
|
|
|
|
|
|
|
|

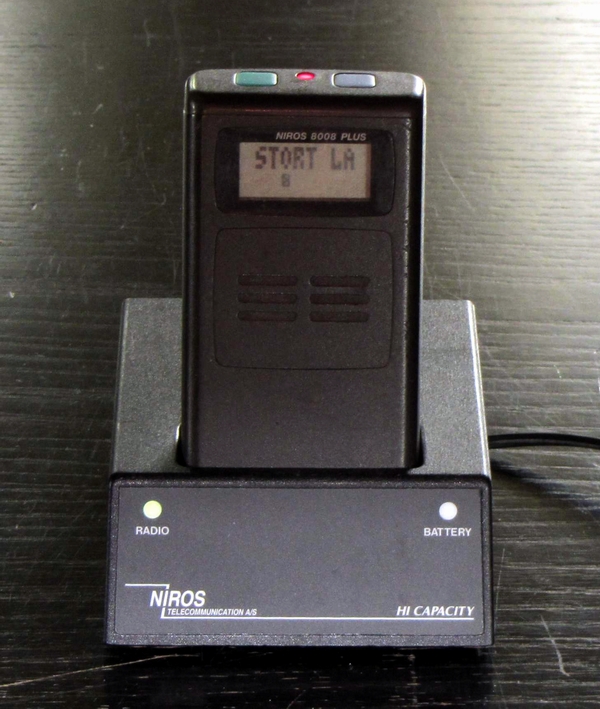

NIROS 8008 PLUS
Alarm pager, used by the Swedish rescue services
78/79 MHz (CCIR)
|
|
|
|
|
|
|
|
NIROS RX 8008 PC Utility program
V 1.84
|
|
|
|
|
|
|
|

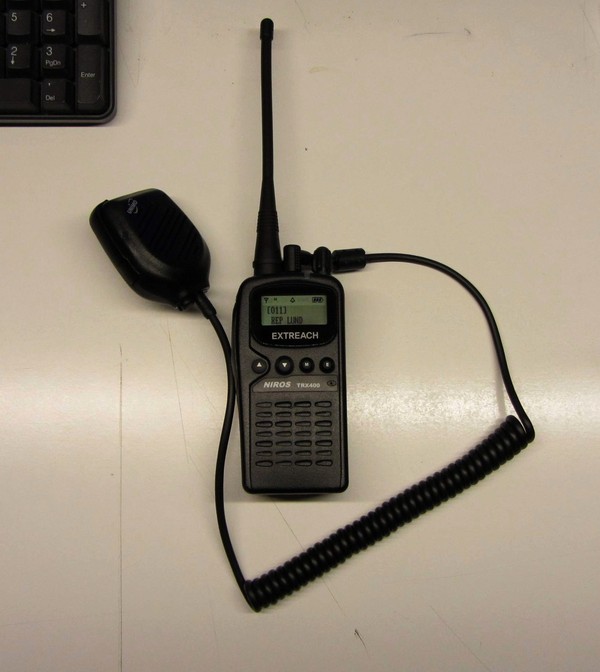

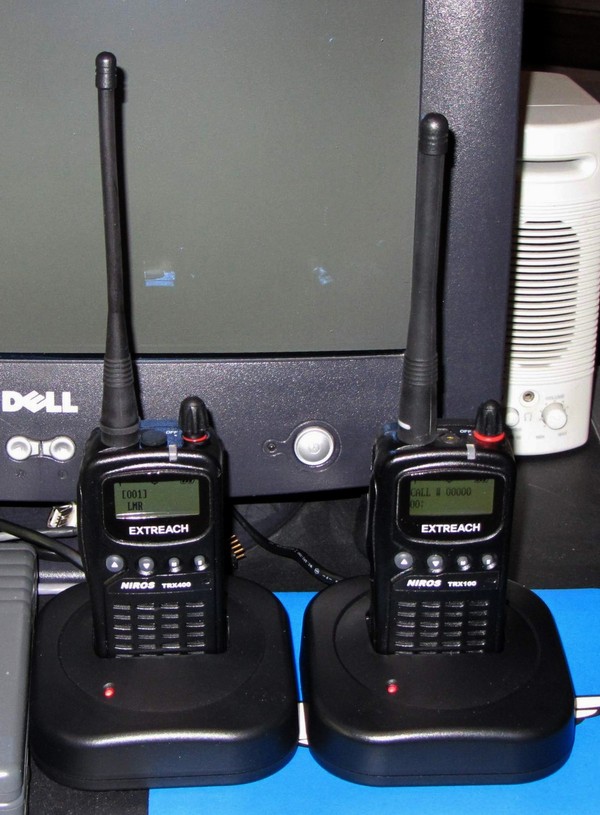

NIROS TRX400 and TRX100
UHF and VHF
|
|
|
|
|
|
|
|
SRA

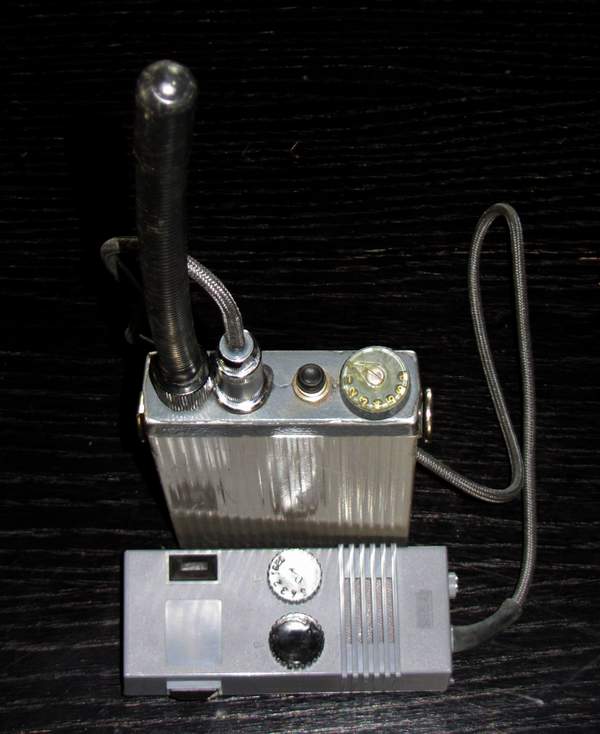

P82
79 MHz
Used by the Swedish police around 1980
|
|
|
|
|
|
|
|
SRA
P82
79 MHz
Used by the Swedish police around 1980
|
|
|
|
|
|
|
|
|

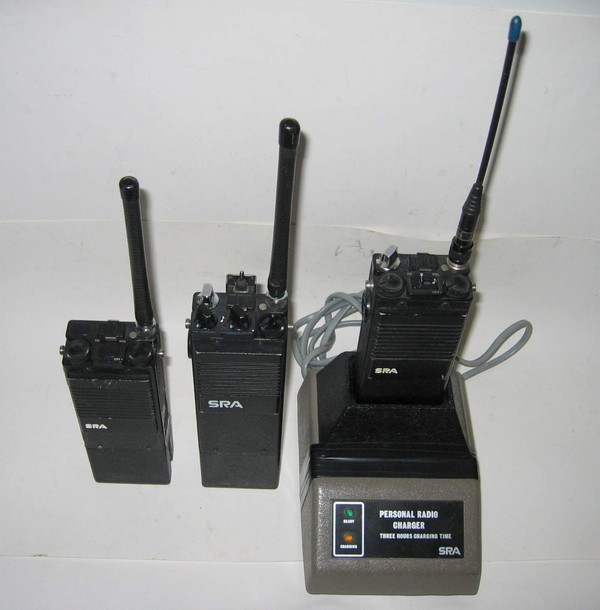

SRA
P104 and P105
VHF and UHF
|
|
|
|
|
|
|
|

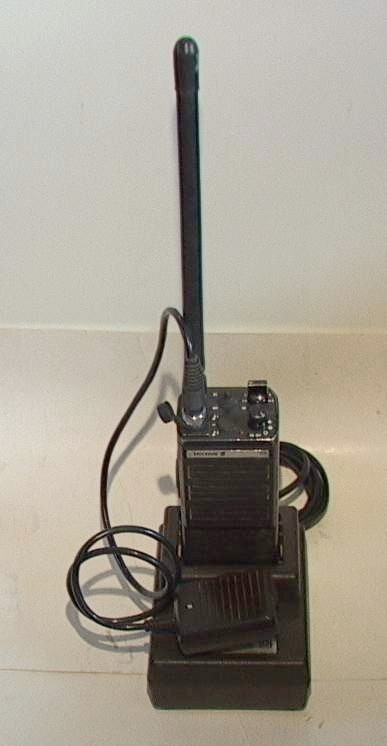

Ericsson P202
66 - 88 MHz
|
|
|
|
|
|
|
|
Ericsson P302, Mobilradio 80
Special version for Vattenfall (Hälsingekraft)
|
|
|
|
|
|
|
|
|
Ericsson P302, Mobilradio 80

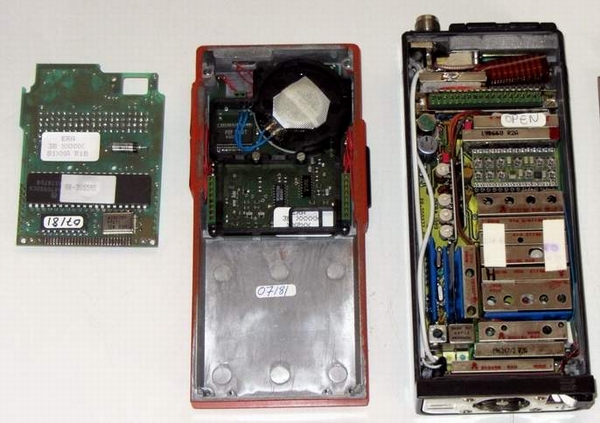

Inside view
|
|
|
|
|
|
|
|
|
Ericsson P302, Mobilradio 80
Vattenfall (Hälsingekraft)
|
|
|
|
|
|
|
|
|

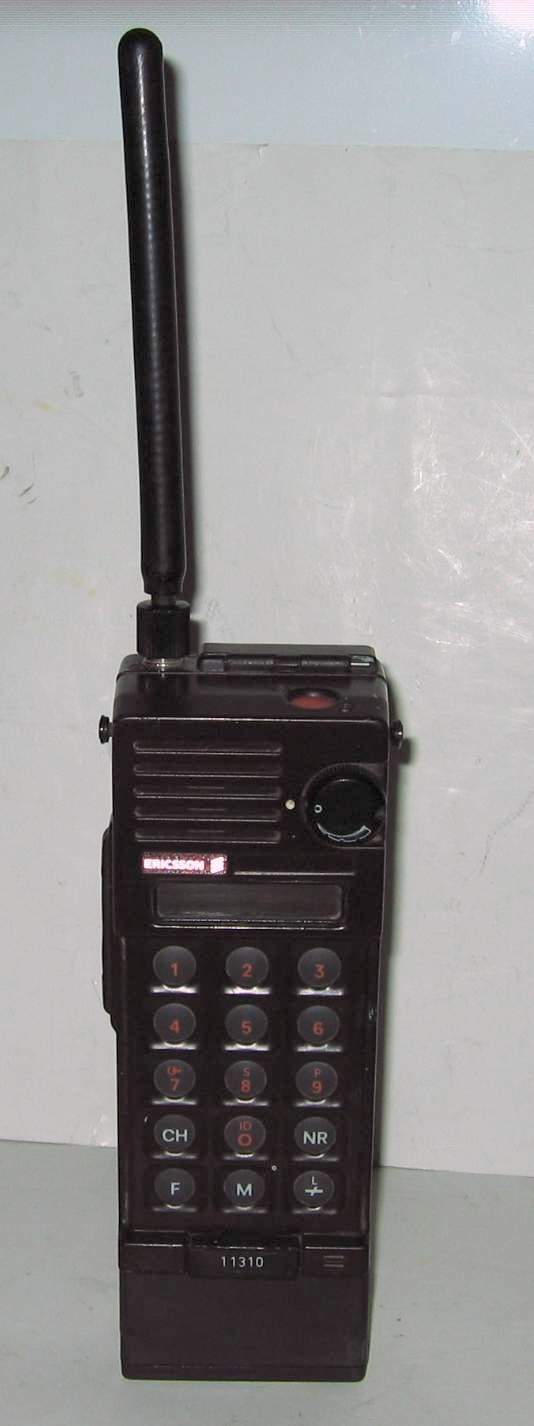

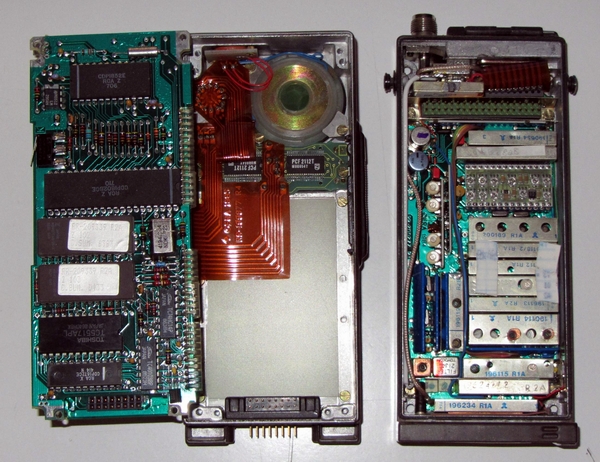

Ericsson P304
Inside view
|
|
|
|
|
|
|
|
|

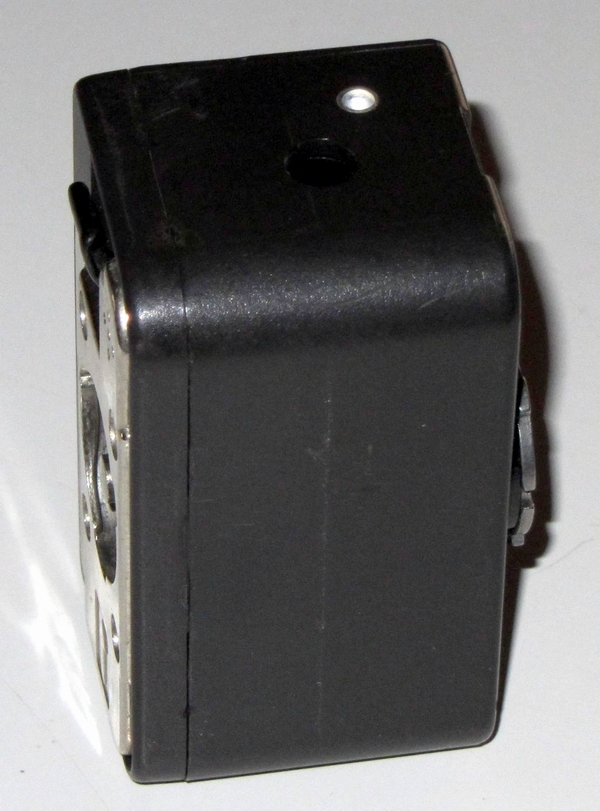

Charger for Ericsson P300
|
|
|
|
|
|
|
|
|
Pover and Charge adaptor for Ericsson P300
|
|
|
|
|
|
|
|
|
Ericsson P300

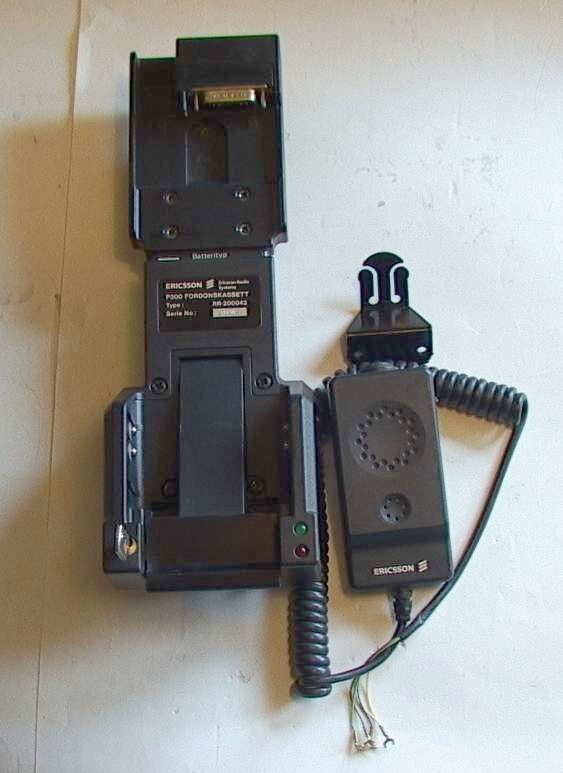

Vehicle cassette
|
|
|
|
|
|
|
|
|

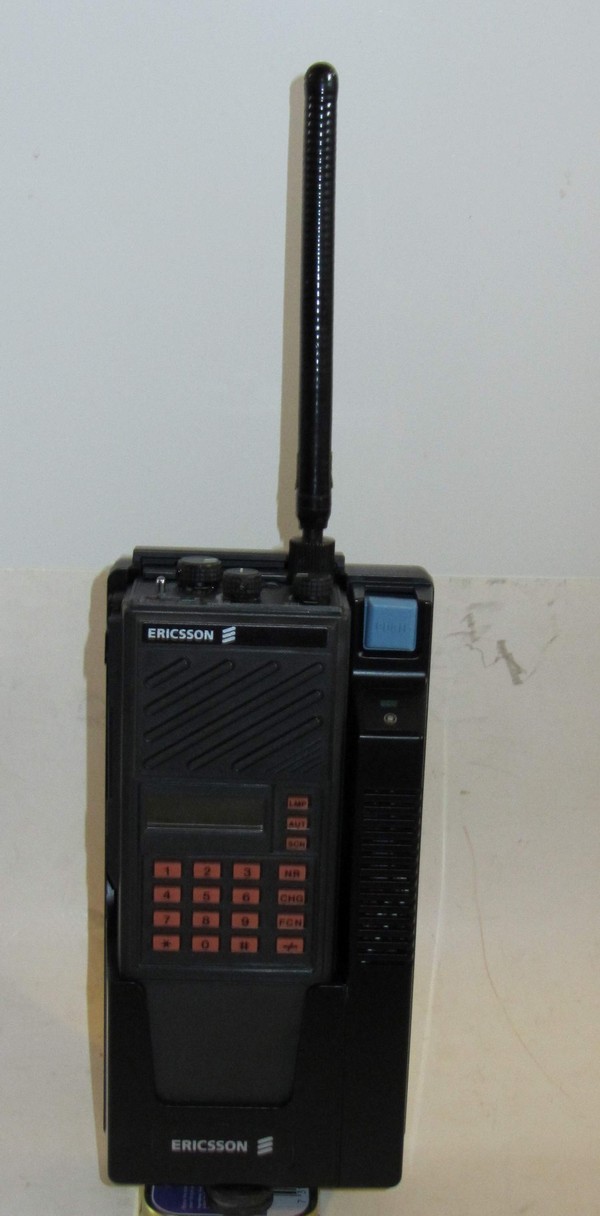

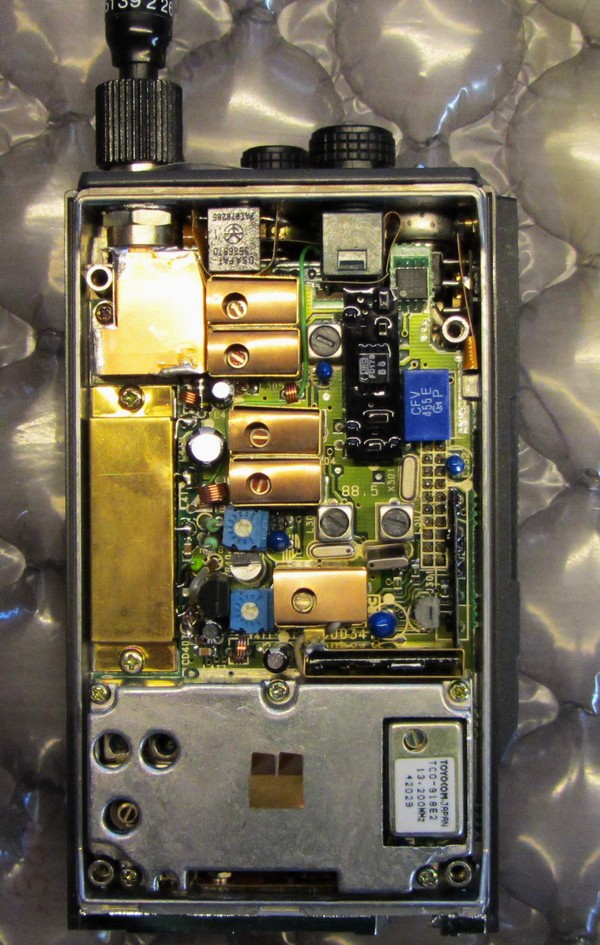

Ericsson P44 VHF
136 - 174 MHz
Vehicle charger
|
|
|
|
|
|
|
|
|
Ericsson P44 VHF
136 - 174 MHz
|
|
|
|
|
|
|
|
|

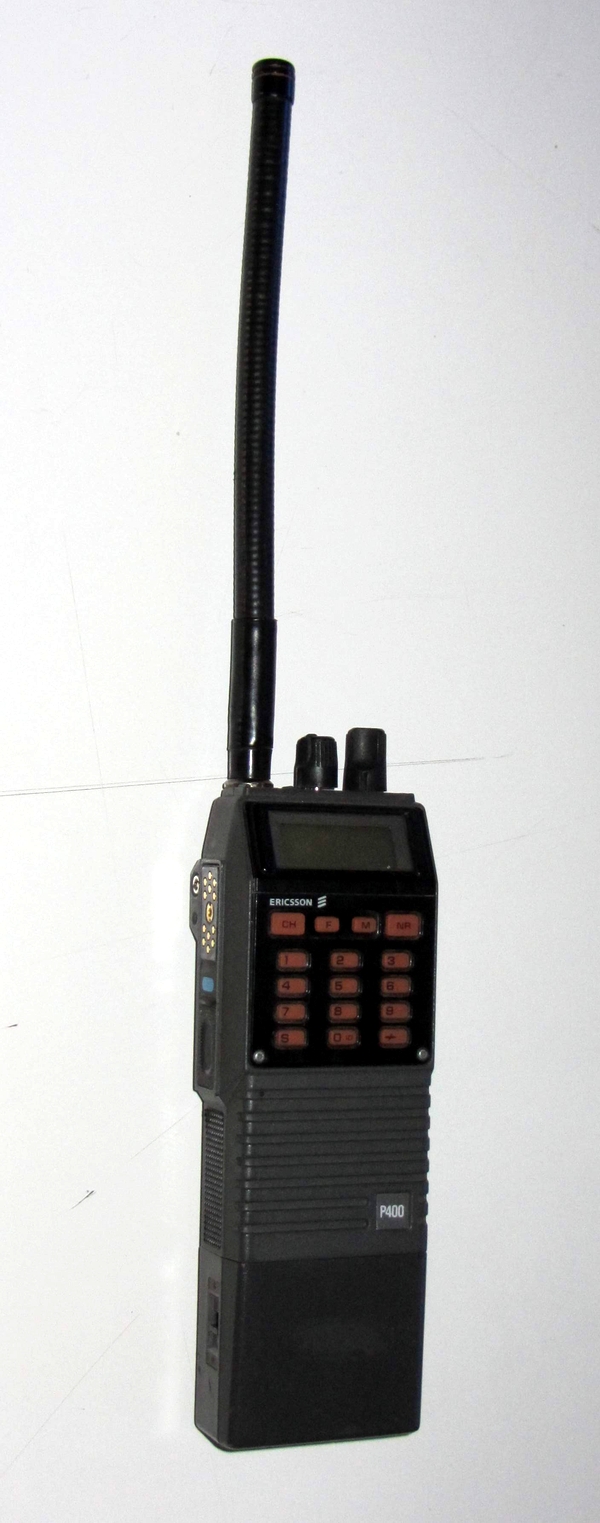

Ericsson P402 RPS/S70M
78/79 MHz
|
|
|
|
|
|
|
|
|
Ericsson P402 RPS/S70M
78/79 MHz
|
|
|
|
|
|
|
|
|
Ericsson P404 VHF
136 - 174 MHz

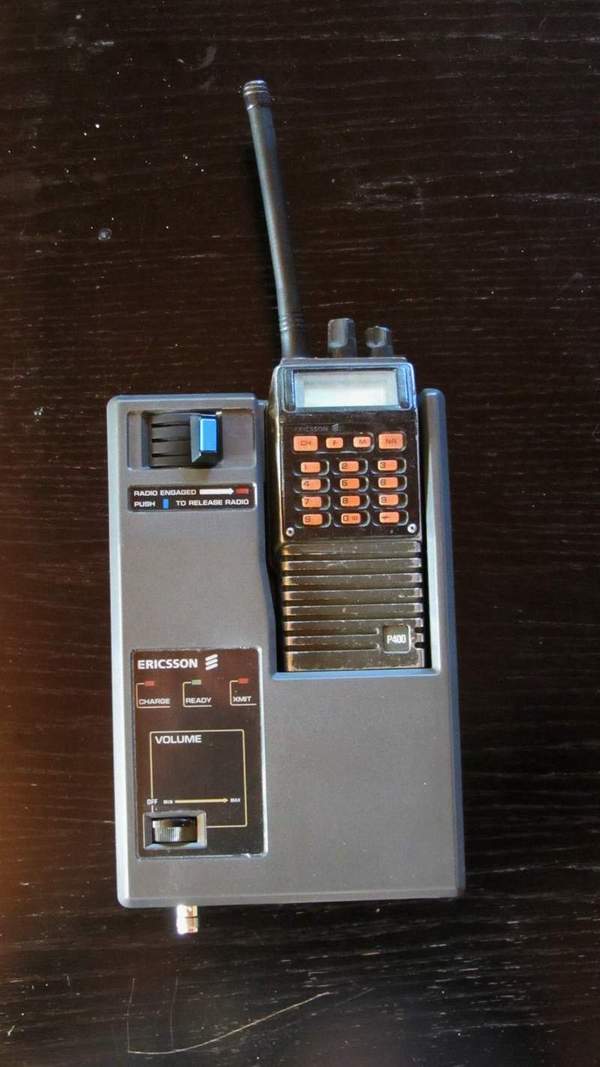

Vehicle cassette
|
|
|
|
|
|
|
|
|
Ericsson P400

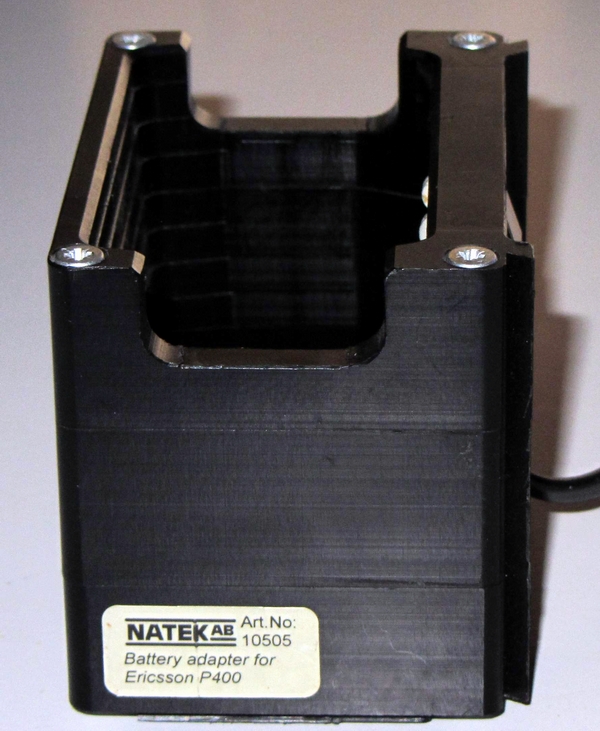

NATEK Battery adapter
|
|
|
|
|
|
|
|
|
Ericsson P400

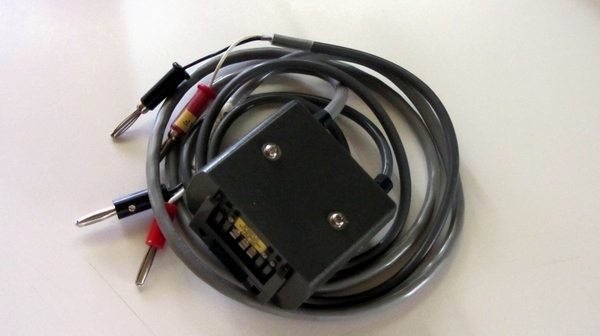

External DC supply
|
|
|
|
|
|
|
|
|
Ericsson P400
TQ0609 Test box
|
|
|
|
|
|
|
|
|

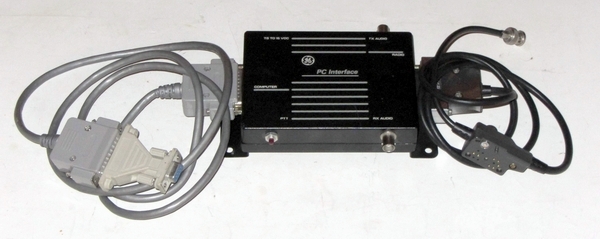

Ericsson P400 PC Interface
|
|
|
|
|
|
|
|
|

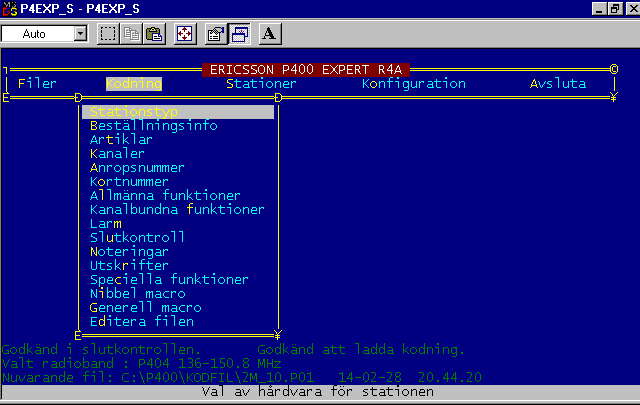

Ericsson P400 PC Programming Software
|
|
|
|
|
|
|
|
|
|
|
SRA
R70 Channels
*00
68,0125 69,0125 70,8125 71,8000
72,8125 73,8125 78,0125
79,0125_______
*02
68,0375 69,0375
70,8375 71,8250 72,8375
73,8375
78,0375 79,0375
*04
68,0625 69,0625
70,8625 71,8500 72,8625 73,8625
78,0625 79,0625
*06
68,0875 69,0875
70,8875 71,8750 72,8875 73,8875
78,0875 79,0875
*08
68,1125 69,1125
70,9125 71,9000 72,9125 73,9125
78,1125 79,1125
*10
68,1375 69,1375
70,9375 71,9250 72,9375 73,9375
78,1375 79,1375
*12
68,1625 69,1625
70,9625 71,9500 72,9625 73,9625
78,1625 79,1625
*14
68,1875 69,1875
70,9875 71,9750 72,9875 73,9875
78,1875 79,1875
*16
68,2125 69,2125
71,0125 72,0000 73,0125 74,0125
78,2125 79,2125
*18
68,2375 69,2375
71,0375 72,0250 73,0375 74,0375
78,2375 79,2375
*20
68,2625 69,2625
71,0625 72,0500 73,0625 74,0625
78,2625 79,2625
*22
68,2875 69,2875
71,0875 72,0750 73,0875 74,0875
78,2875 79,2875
*24
68,3125 69,3125
71,1125 72,1000 73,1125 74,1125
78,3125 79,3125
*26
68,3375 69,3375
71,1375 72,1250 73,1375
73,1375
78,3375 79,3375
*28
68,3625 69,3625
71,1625 72,1500 73,1625 73,1625
78,3625 79,3625
*30
68,3875 69,3875
71,1875 72,1750 73,1875 73,1875
78,3875 79,3875
*32
68,4125 69,4125
71,2125 72,2000 73,2125 73,2125
78,4125 79,4125
*34
68,4375 69,4375
71,2375 72,2250 73,2375 73,2375
78,4375 79,4375
*36
68,4625 69,4625
71,2625 72,2500 73,2625 73,2625
78,4625 79,4625
*38
68,4875 69,4875
71,2875 72,2750 73,2875 73,2875
78,4875 79,4875
*40
68,5125 69,5125
71,3125 72,3000 73,3125
73,3125
78,5125 79,5125
*42
68,5375 69,5375
71,3375 72,3250 73,3375 73,3375
78,5375
79,5375
*44
68,5625 69,5625
71,3625 72,3500 73,3625 73,3625
78,5625 79,5625
*46
68,5875 69,5875
71,3875 72,3750 73,3875 73,3875
78,5875 79,5875
*48
68,6125 69,6125
71,4125 72,4000 73,4125
73,4125
78,6125 79,6125
*50
68,6375 69,6375
71,4375 72,4250 73,4375 73,4375
78,6375 79,6375
*52
68,6625 69,6625
71,4625 72,4500 73,4625
73,4625
78,6625 79,6625
*54
68,6875 69,6875
71,4875 72,4750 73,4875
73,4875
78,6875 79,6875
*56
68,7125 69,7125
71,5125 72,5000 73,5125 73,5125
78,7125 79,7125
*58
68,7375 69,7375
71,5375 72,5250 73,5375 73,5375
78,7375 79,7375
*60
68,7625 69,7625
71,5625 72,5500 73,5625 73,5625
78,7625 79,7625
*62
68,7875 69,7875
71,5875 72,5750 73,5875 73,5875
78,7875 79,7875
*64
68,8125 69,8125
71,6125 72,6000 73,6125 73,6125
78,8125 79,8125
*66
68,8375 69,8375
71,6375 72,6250 73,6375 73,6375
78,8375
79,8375
*68
68,8625 69,8625
71,6625 72,6500 73,6625
73,6625
78,8625 79,8625
*70
68,8875 69,8875
71,6875 72,6750 73,6875
73,6875
78,8875 79,8875
*72
68,9125 69,9125
71,7125 72,7000 73,7125 73,7125
78,9125 79,9125
*74
68,9375 69,9375
71,7375 72,7250 73,7375 73,7375
78,9375 79,9375
*76
68,9625 69,9625
71,7625 72,7500 73,7625 73,7625
78,9625 79,9625
*78
68,9875 69,9875
71,7875 72,7750 73,7875 73,7875
78,9875
79,9875_______
|
|
|
|
|
|
|
|
|
|
|

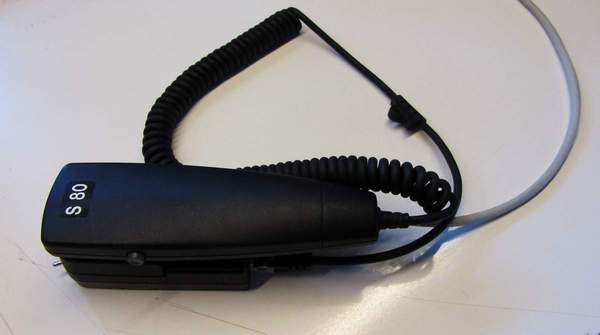

Microphones
for SRA R70 and B70
|
|
|
|
|
|
|
|
|

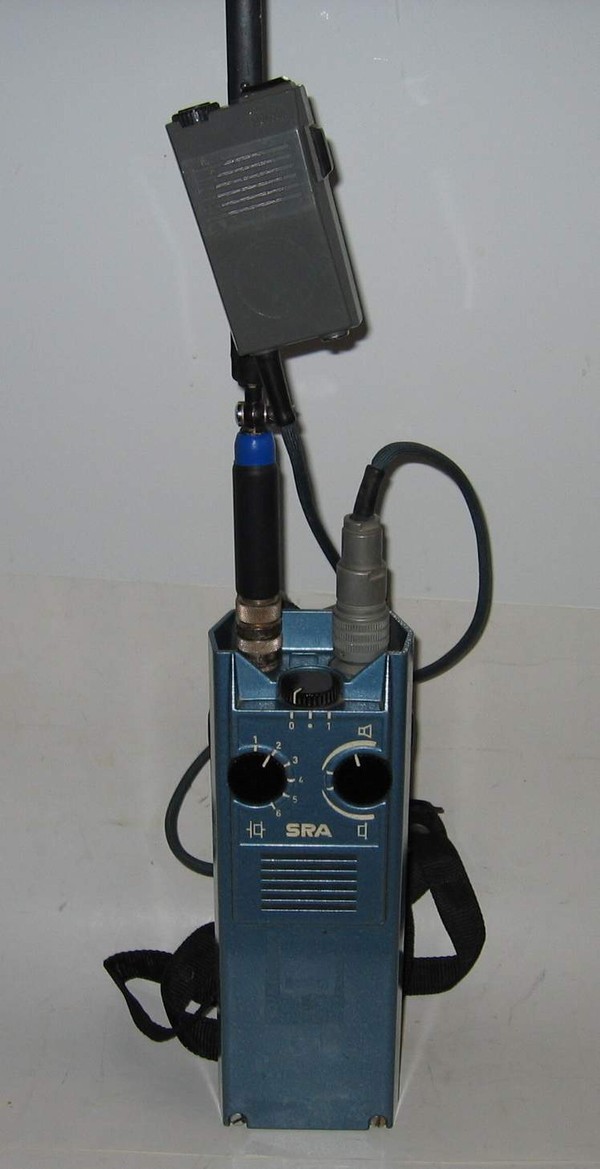

SRA
B70
6 Channels: 68 - 80 MHz
Swedish Civil Defence Radio
|
|
|
|
|
|
|
|
SRA PN72
6 Channels: 68 - 80 MHz
This radio was used by the Swedish Police 1969-1979
|
|
|
|
|
|
|
|
|
Battery Charger
for SRA PN72 and B70
|
|
|
|
|
|
|
|
|
50 Ohms Dummy
load for SRA R70
|
|
|
|
|
|
|
|
|
Airplane
Antenna for SRA
R70
|
|
|
|
|
|
|
|
|
|
|
|

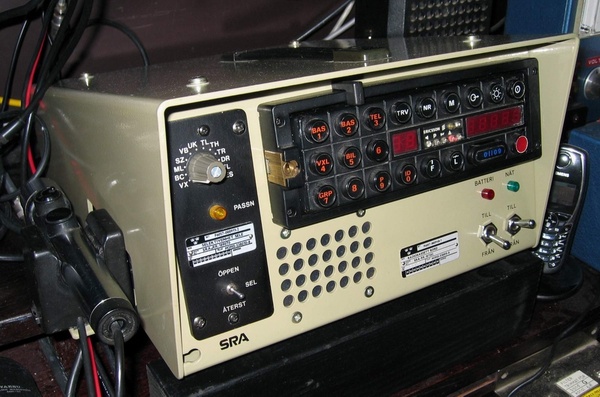

RA
538
Military radio, VHF 151 - 154 MHz, FM
Built by SRA,
based on the civil C604
radio
|
|
|
|
|
|
|
|
|
|
|
|
RA
138
Military
radio, VHF 151 - 154 MHz, FM
|
|
|
|
|
|
|
|
RA
138
Military
radio, VHF 151 - 154 MHz, FM
|
|
|
|
|
|
|
|
|
RA 138/538 Kanalplan |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Sim
Hdx (Tx) |
|
Sim
Hdx (Tx) |
|
Sim
Hdx (Tx) |
| A1 153.025 151.725 |
|
E1 153.125 151.825 |
|
J1 153.225 151.925 |
| A2 153.300 152.075 |
|
E2 153.400 152.175 |
|
J2 153.500 152.275 |
| A3 153.600 152.500 |
|
E3 153.700 152.600 |
|
J3 153.800 152.700 |
| A4 152.025 - |
|
E4 152.025 - |
|
J4 152.025 - |
| A5 152.375 - |
|
E5 152.375 - |
|
J5 152.375 - |
| A6 152.425 - |
|
E6 152.425 - |
|
J6 152.425 - |
| A7 152.825 - |
|
E7 152.825 - |
|
J7 152.825 - |
| A8 152.875 - |
|
E8 152.875 - |
|
J8 152.875 - |
| A9 152.975 - |
|
E9 152.975 - |
|
J9 152.975 - |
|
|
|
|
|
|
|
|
| B1 153.050 151.750 |
|
F1 153.150 151.850 |
|
K1 153.250 151.950 |
| B2 153.325 152.100 |
|
F2 153.425 152.200 |
|
K2 153.525 152.300 |
| B3 153.625 152.525 |
|
F3 153.725 152.625 |
|
K3 153.825 152.725 |
| B4 152.025 - |
|
F4 152.025 - |
|
K4 152.025 - |
| B5 152.375 - |
|
F5 152.375 - |
|
K5 152.375 - |
| B6 152.425 - |
|
F6 152.425 - |
|
K6 152.425 - |
| B7 152.825 - |
|
F7 152.825 - |
|
K7 152.825 - |
| B8 152.875 - |
|
F8 152.875 - |
|
K8 152.875 - |
| B9 152.975 - |
|
F9 152.975 - |
|
K9 152.975 - |
|
|
|
|
|
|
|
|
| C1 153.075 151.775 |
|
G1 153.175 151.875 |
|
PASSN. |
DTMF |
| C2 153.350 152.125 |
|
G2 153.450 152.225 |
|
WX |
1 |
| C3 153.650 152.550 |
|
G3 153.750 152.650 |
|
BC |
4 |
| C4 152.025 - |
|
G4 152.025 - |
|
ML |
7 |
| C5 152.375 - |
|
G5 152.375 - |
|
SZ |
* |
| C6 152.425 - |
|
G6 152.425 - |
|
VB |
2 |
| C7 152.825 - |
|
G7 152.825 - |
|
UK |
5 |
| C8 152.875 - |
|
G8 152.875 - |
|
YL |
8 |
| C9 152.975 - |
|
G9 152.975 - |
|
TH |
0 |
|
|
|
|
|
|
TR |
3 |
| D1 153.100 151.800 |
|
H1 153.200 151.900 |
|
DR |
6 |
| D2 153.375 152.150 |
|
H2 153.475 152.250 |
|
FL |
9 |
| D3 153.675 152.575 |
|
H3 153.775 152.675 |
|
RES |
# |
| D4 152.025 - |
|
H4 152.025 - |
|
RELÄ |
B |
| D5 152.375 - |
|
H5 152.375 - |
|
SLUT |
A |
| D6 152.425 - |
|
H6 152.425 - |
|
|
|
| D7 152.825 - |
|
H7 152.825 - |
|
|
|
| D8 152.875 - |
|
H8 152.875 - |
|
|
|
| D9 152.975 - |
|
H9 152.975 - |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
